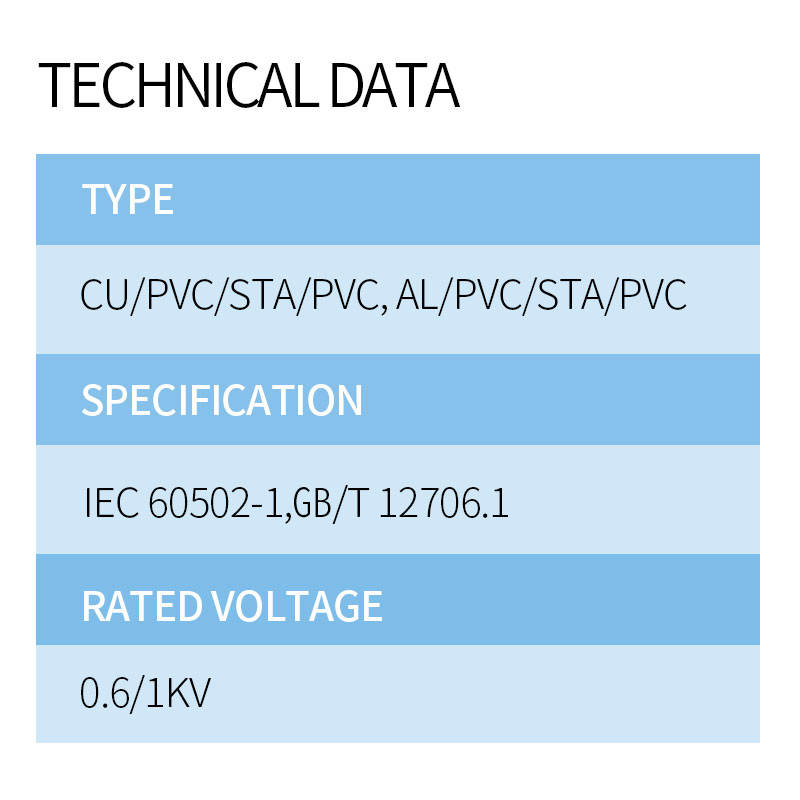

TECHNICAL DATA:

Type: Cu/PVC/STA/PVC, AL/PVC/STA/PVC

Specification: IEC 60502-1,GB/T 12706.1

Rated voltage: 0.6/1kV

Number of Cores: single-core,two-core,three-core,four-core,five-core,three-and-a-half core,three-and-two-half core, four-and-a-half core.

Operating Temperature: 70℃

Short-circuit Temperature:

Conductor cross-section≤300mm2，160℃

Conductor cross-section≤300mm2，140℃

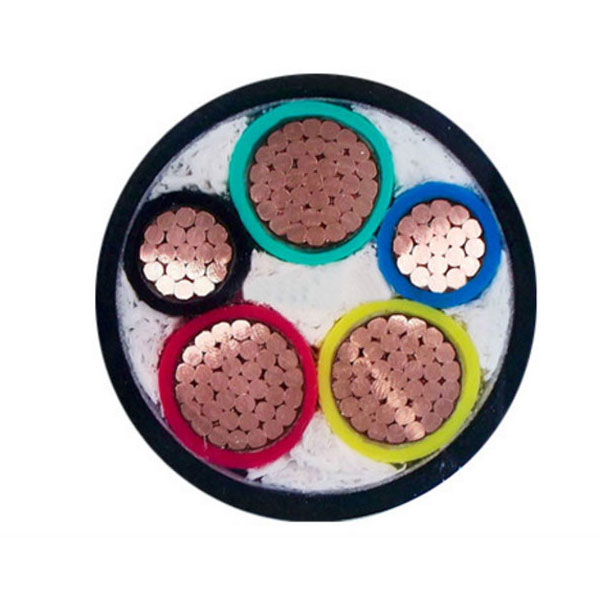

CABLE STRUCTURE:

Conductors:  Either of Class 1 or Class 2 of copper or aluminium conductor with IEC 60228.

Insulation: PVC compound according to PVC/A in IEC 60502-1.

Inner bell: extruded-type PVC or wrapped PVC tape

Armour: The armour of Muti-core cables are consist of galvanized steel tape，while that of single-core cables shall consist of Non-magnetic stainless steel tape.

Outer sheath: PVC/ST1 according to IEC 60502-1.

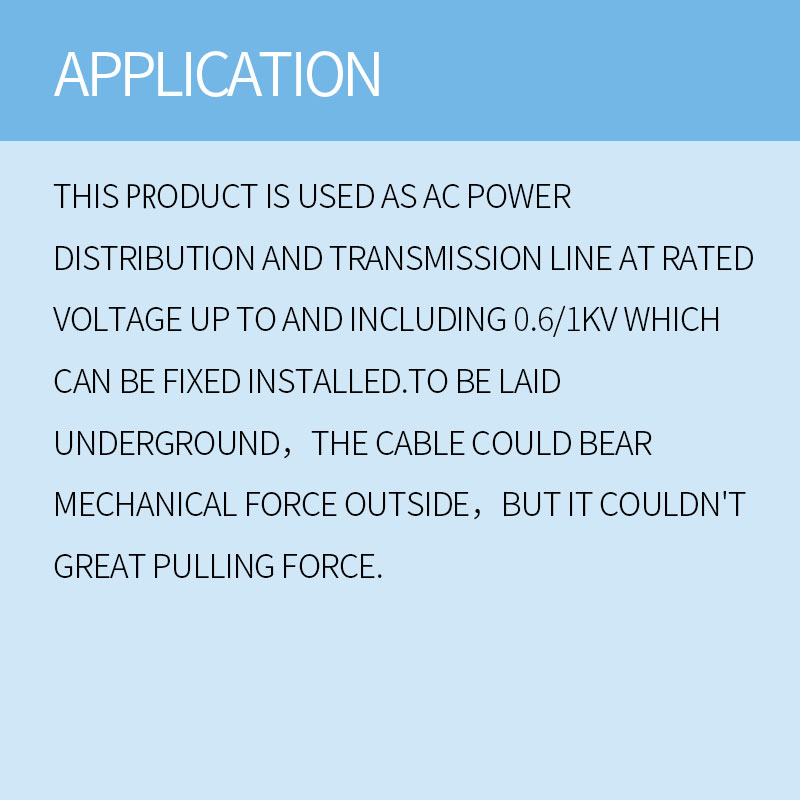

APPLICATION:

This product is used as AC power distribution and transmission line at rated voltage up to and including 0.6/1kV which can be fixed installed.To be laid underground，the cable could bear mechanical force outside，but it couldn't great pulling force.

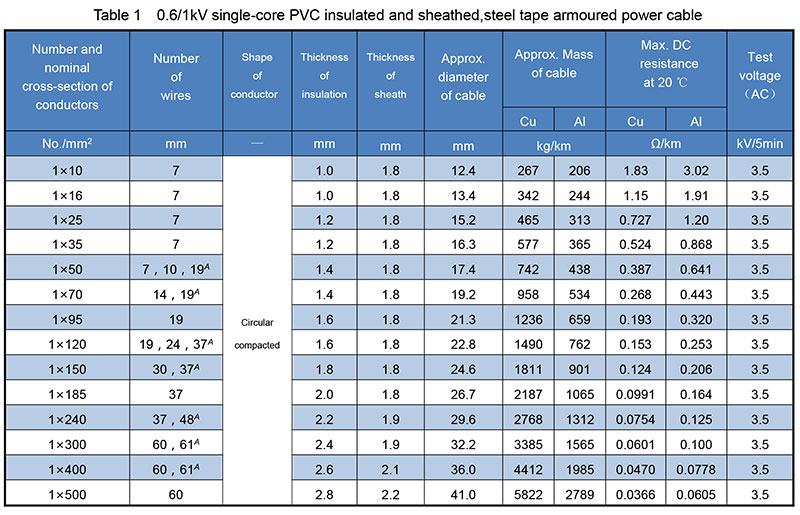

^AThe number of wires in the conductor can be selected from these listed above. It shall be applied to comply with the requirements of IEC 60228.

^AThe number of wires in the conductor can be selected from these listed above. It shall be applied to comply with the requirements of IEC 60228.

^BWhen requested by customers，the cable can also use circular compacted conductors.

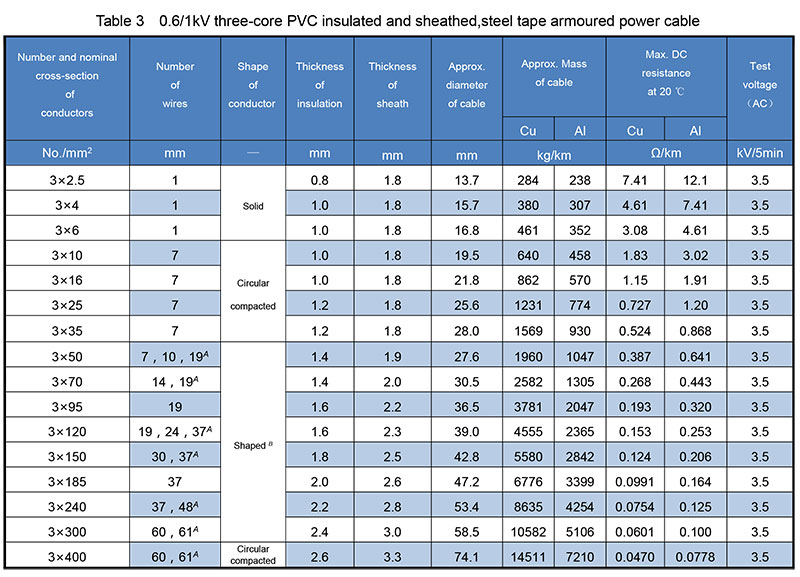

^AThe number of wires in the conductor can be selected from these listed above. It shall be applied to comply with the requirements of IEC 60228.

^BWhen requested by customers，the cable can also use circular compacted conductors.

^AThe number of wires in the conductor can be selected from these listed above. It shall be applied to comply with the requirements of IEC 60228.

^BWhen requested by customers，the cable can also use circular compacted conductors.

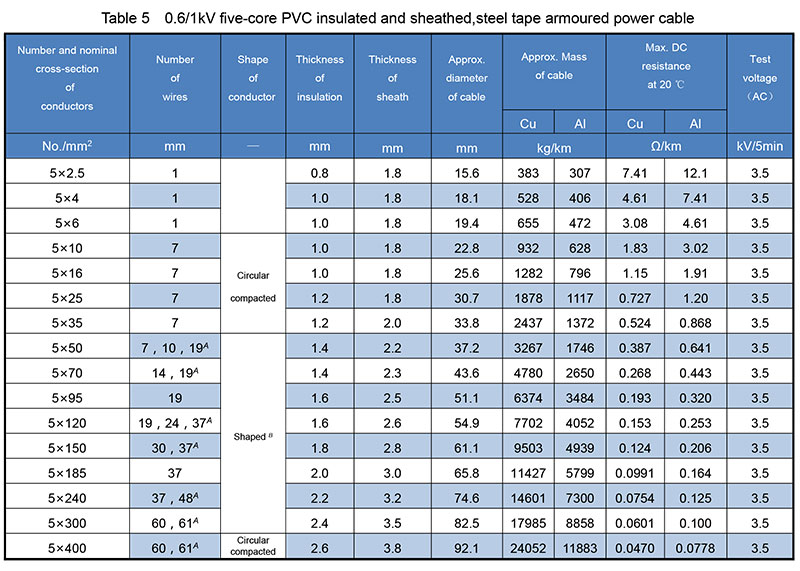

^AThe number of wires in the conductor can be selected from these listed above. It shall be applied to comply with the requirements of IEC 60228.

^BWhen requested by customers，the cable can also use circular compacted conductors.

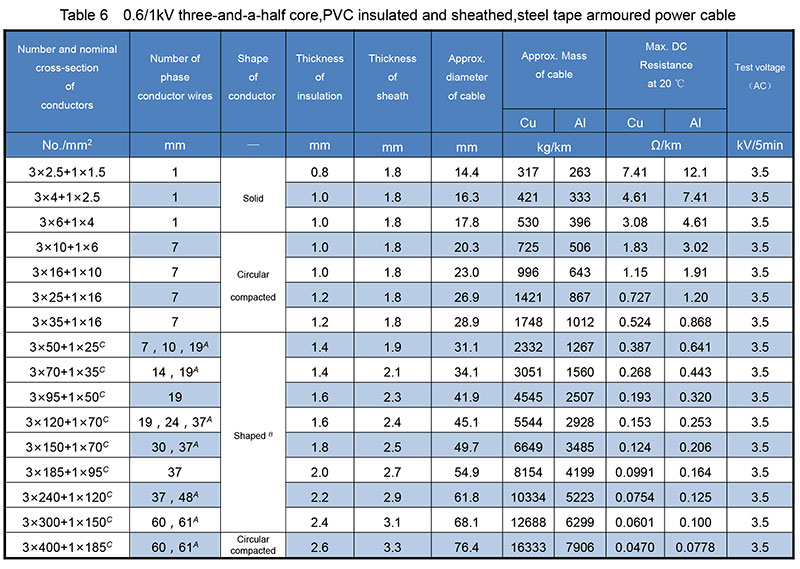

^AThe number of wires in the conductor can be selected from these listed above. It shall be applied to comply with the requirements of IEC 60228.

^BWhen requested by customers，the phase line of cable can also use circular compacted conductors.

^CIt is a neutral wire of the cable which adopts a circular compacted conductor.

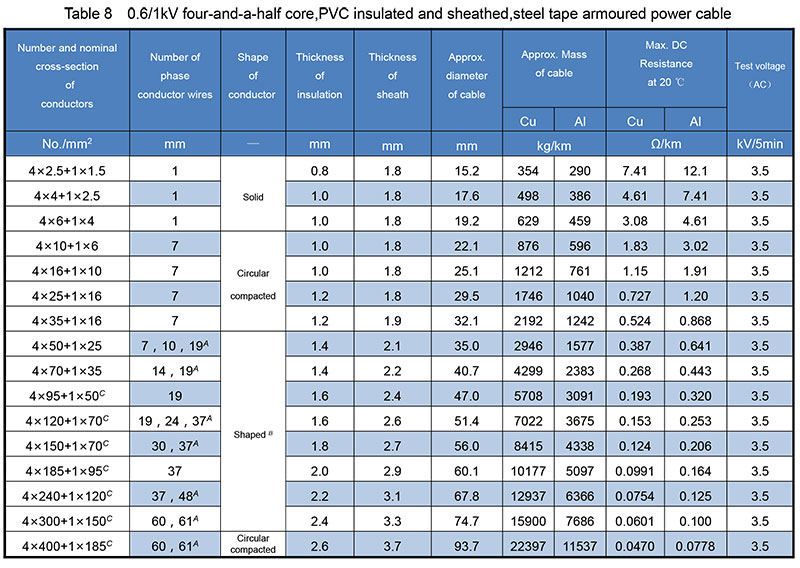

^AThe number of wires in the conductor can be selected from these listed above. It shall be applied to comply with the requirements of IEC 60228.

^BWhen requested by customers，the phase line of cable can also use circular compacted conductors.

^CAmong the two wires, one is the neutral wire and the other is the neutral wire of the cable, and they all adopt the structure of circular compacted conductors.

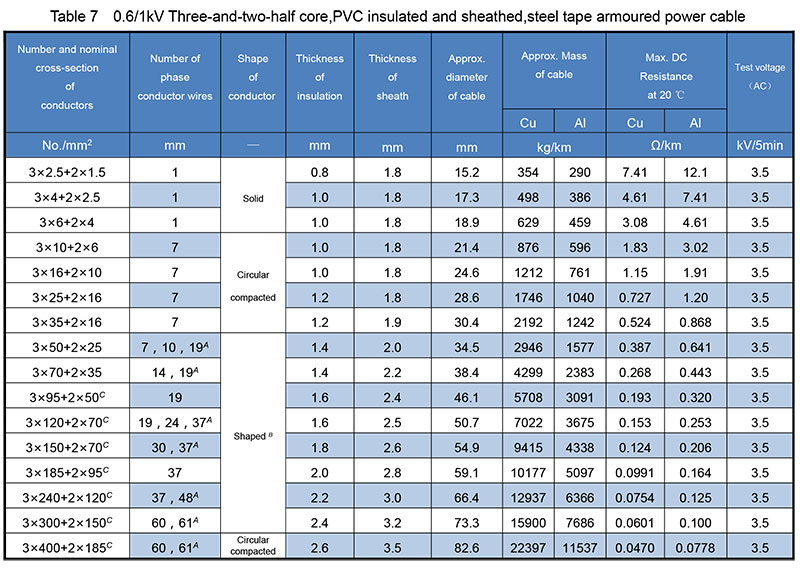

^AThe number of wires in the conductor can be selected from these listed above. It shall be applied to comply with the requirements of IEC 60228.

^BWhen requested by customers，the phase line of cable can also use circular compacted conductors.

^CIt is a zero wire of the cable which adopts a circular compacted conductor.
