ASTM B232 Aluminum Conductor Steel Reinforced
ACSR
- INQUIRY NOW
- PRICE CALC
- CATALOGUE
- COMPANY LOCATION
Characteristics
-
Type
ACSR/GA
-
Specification
ASTM B232
-
Product brand
huatai special cable
Description
TECHNICAL DATA:
Type: ACSR/GA
Specification: ASTM B232
CABLE STRUCTURE:
Aluminum wires are concentrically stranded about a steel core.
Wires: Comply with ASTM B230 designated aluminium 1350-H19 wires.
Steel core: It consists of a steel wire，or seven more Class A galvanized steel wires twisted together in concentric layers.
APPLICATION:
This product is widely used for overhead power transmission and distribution line.Because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission
capacity. And they are also suitable for laying across rivers valleys and the places where special geographical
features exist.

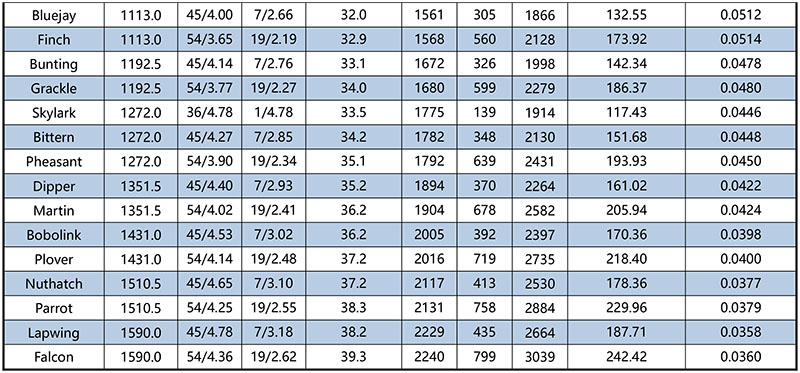

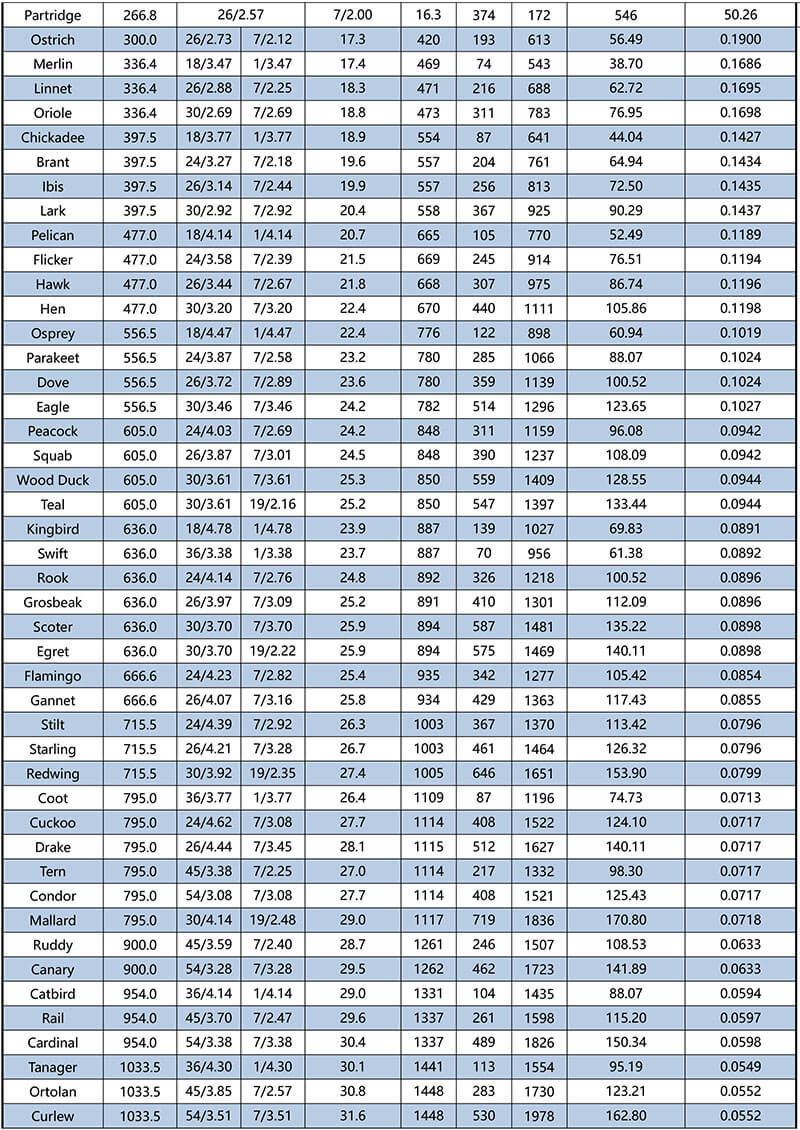

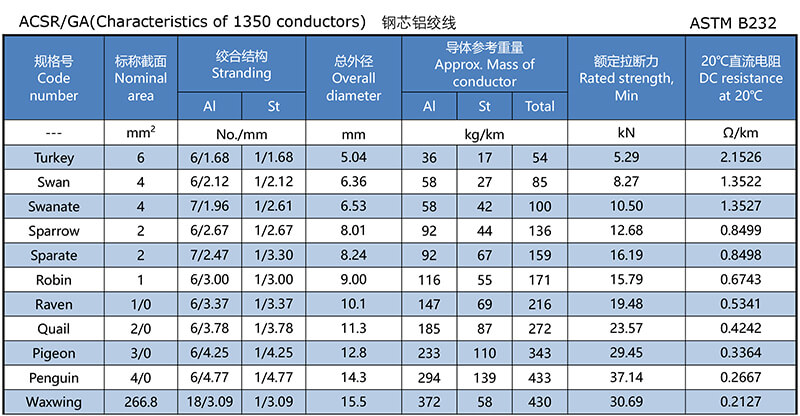

ACSR/GA(Characteristics of 1350 conductors)
