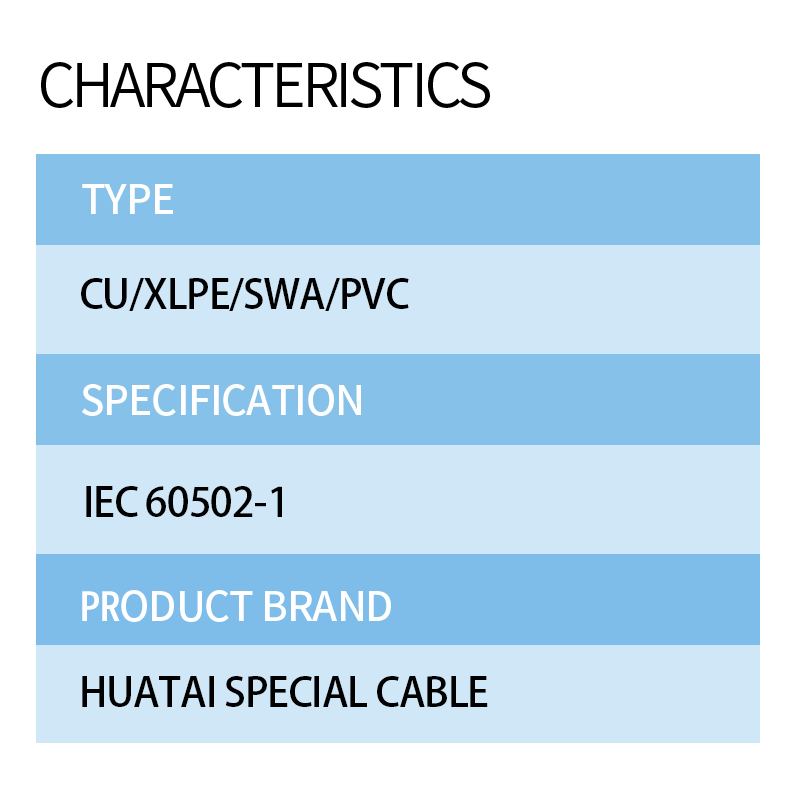

TECHNICAL DATA

Type: Cu/XLPE/SWA/PVC, AL/XLPE/SWA/PVC

Specification: IEC 60502-1,GB/T 12706.1

Rated voltage: 0.6/1kV

Number of Cores: single-core,two-core,three-core,four-core,five-core,three-and-a-half core,three-and-two-half core,four-and-a-half core.

Operating Temperature: 90℃

Short-circuit Temperature: 250℃

CABLE STRUCTURE

Conductors: Either of Class 1 or Class 2 of copper or aluminium conductor with IEC 60228.

Insulation: XLPE in accordance with IEC 60502-1.

Inner bell: extruded-type PVC or wrapped PVC tape

Armour: In AC power system，non-magnetic stainless steel wire is used for single-core cable armoring，and galvanized steel wire is used for three-core cable armoring.

Outer sheath: PVC/ST2 according to IEC 60502-1.

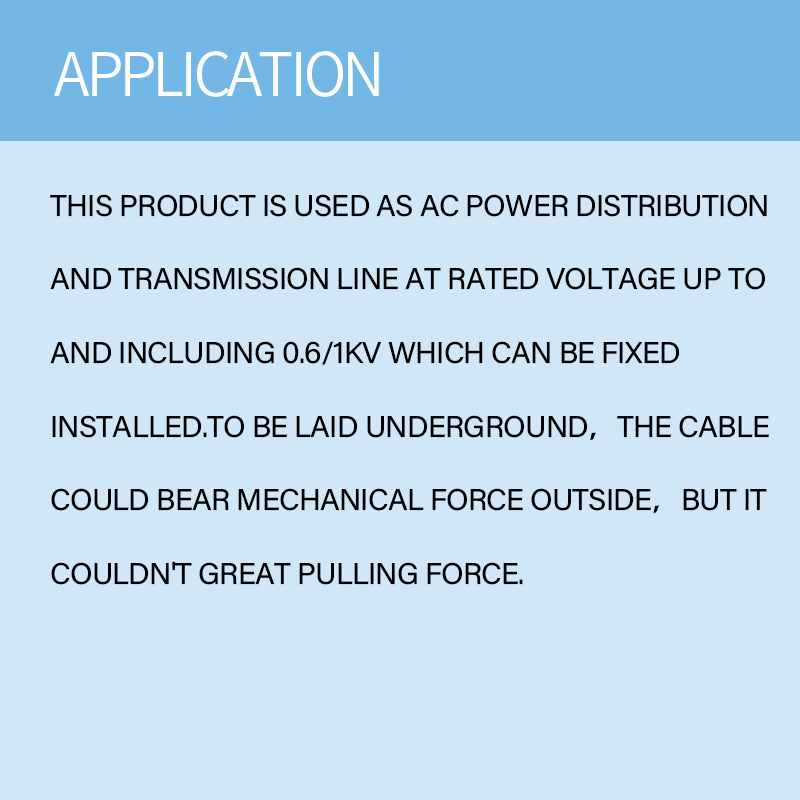

APPLICATION

This product is used as AC power distribution and transmission line at rated voltage up to and including 0.6/1kV which can be fixed installed.To be laid underground，the cable could bear mechanical force outside，but it couldn't great pulling force.
