GB/T 1179 Aluminum Conductor Steel Reinforced
ACSR
- INQUIRY NOW
- PRICE CALC
- CATALOGUE
- COMPANY LOCATION

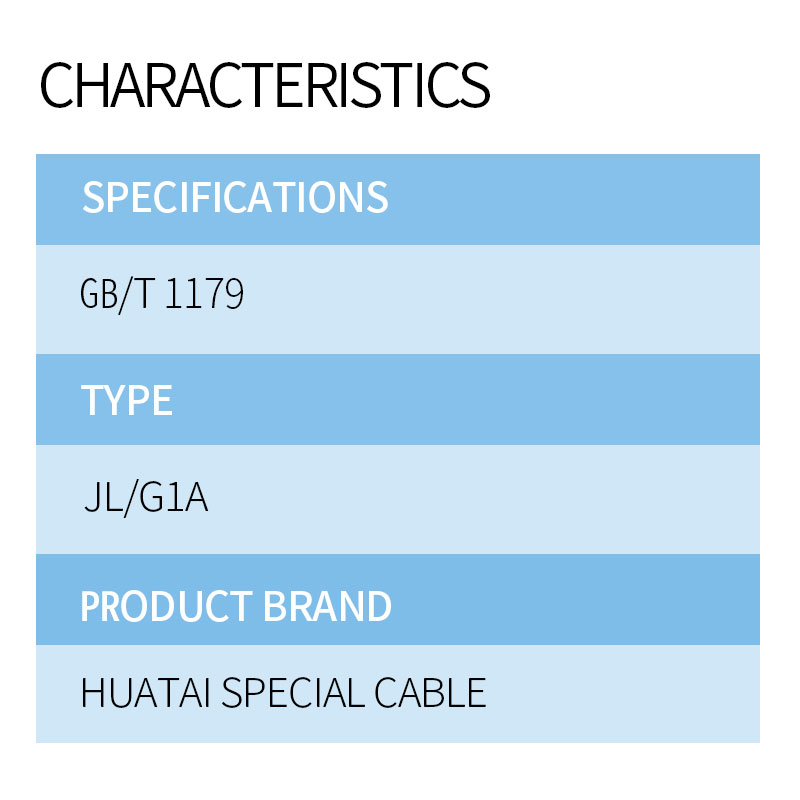

Characteristics
-
Specifications
GB/t 1179
-
type
JL/G1A
-
product brand
Huatai special cable
Description
TECHNICAL DATA:
Type: JL/G1A
Specification: GB/T 1179
CABLE STRUCTURE:
Aluminum wires are concentrically stranded about a steel core.
Wires: hard drawn aluminium as per GB/T 17048 designated L.
Steel core: It consists of a steel wire，or seven more Class A galvanized steel wires twisted together in concentric layers.

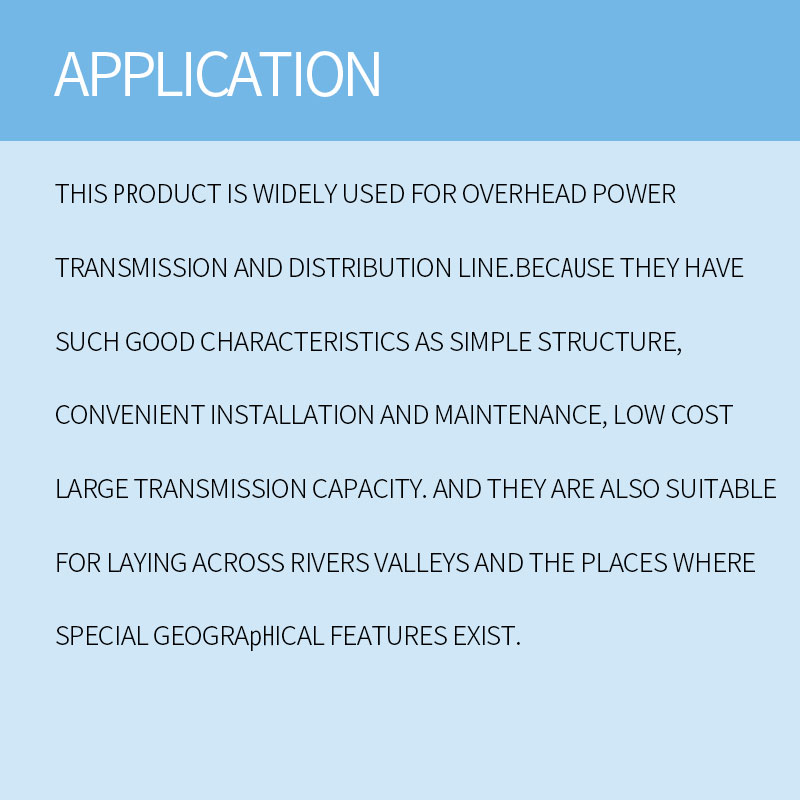

APPLICATION:
This product is widely used for overhead power transmission and distribution line.Because they have
such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

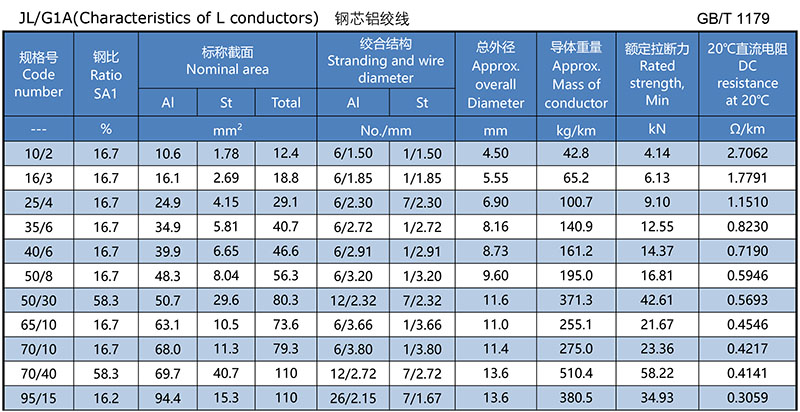

JL/G1A(Characteristics of L conductors)
