Aluminum Conductor, Aluminum Alloy Reinforced (ACAR)
IEC_ACAR
- INQUIRY NOW
- PRICE CALC
- CATALOGUE
- COMPANY LOCATION

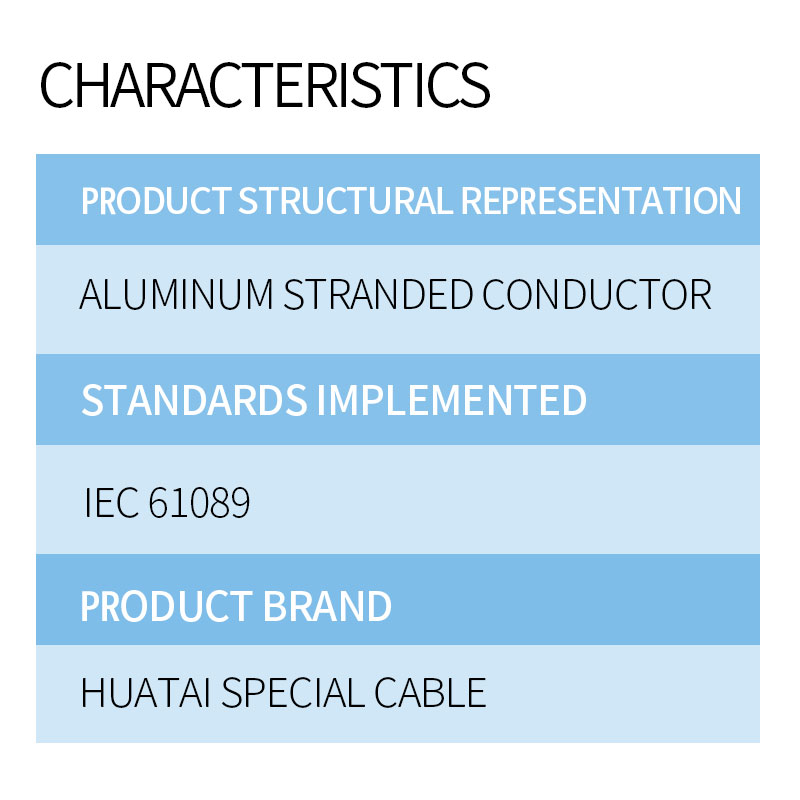

Characteristics
-
product material
Aluminum conductor
-
Standards implemented
IEC 61089
-
Product brand
huatai special cable
Description

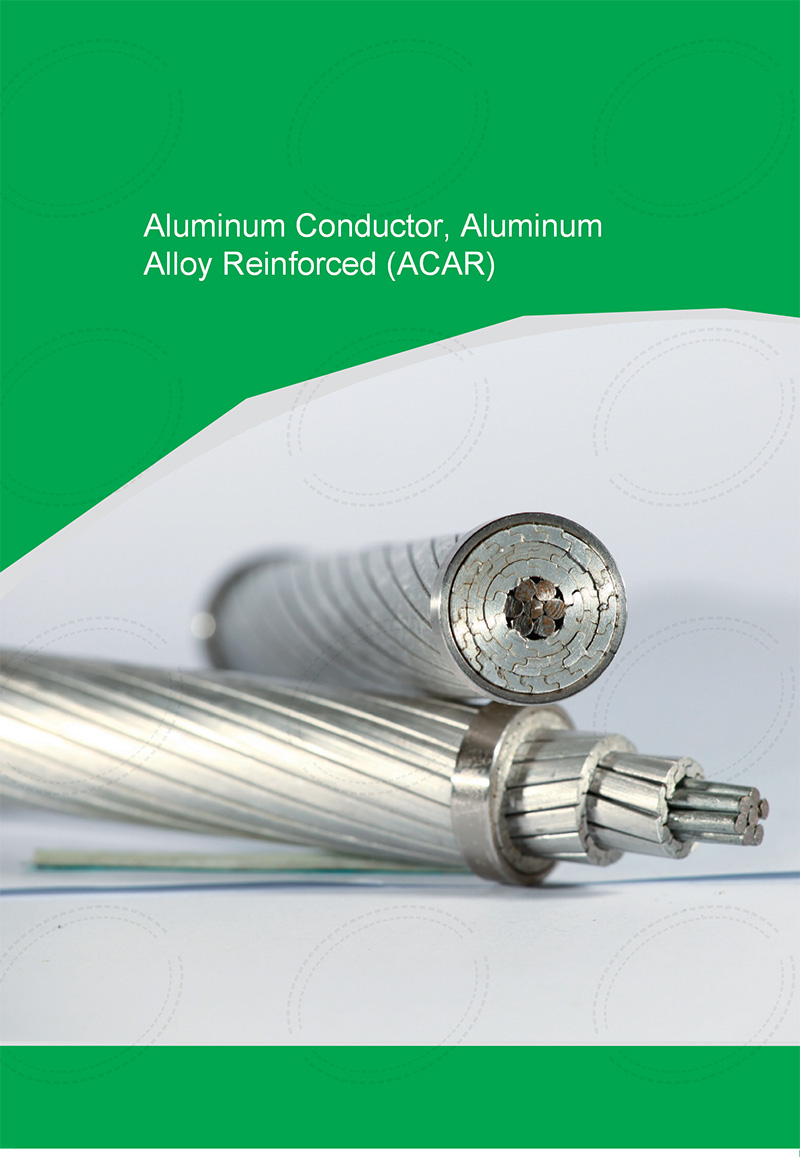

Aluminum Conductor, Aluminum Alloy Reinforced (ACAR)
Standards implemented: IEC 61089

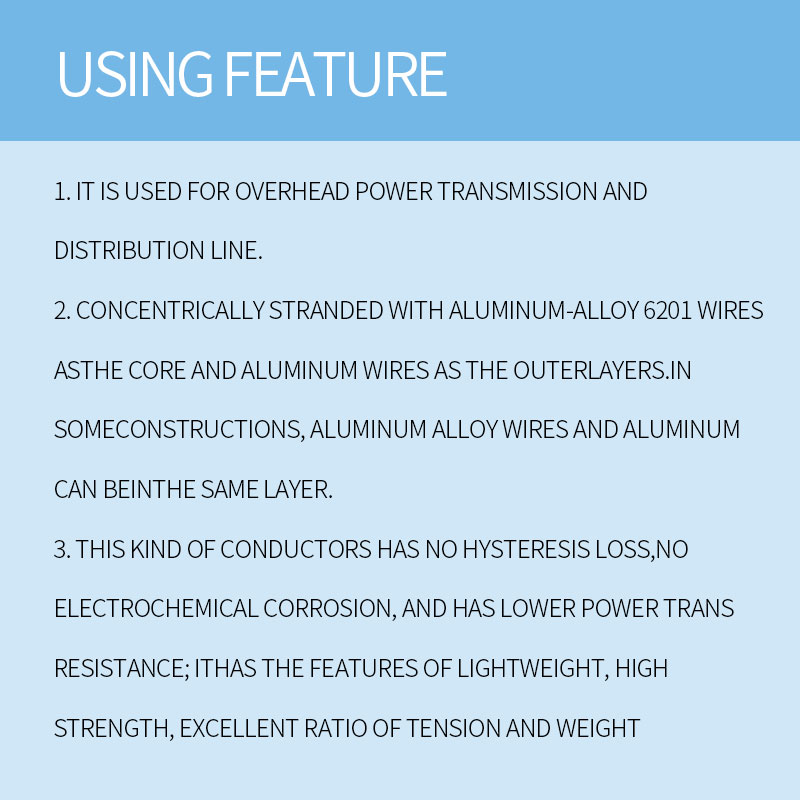

Using feature
1. It is used for overhead power transmission and distribution line.
2. Concentrically stranded with aluminum-alloy 6201 wires asthe core and aluminum wires as the outerlayers.In someconstructions, aluminum alloy wires and aluminum can beinthe same layer.
This kind of conductors has no hysteresis loss,no electrochemical corrosion, and has lower power trans resistance; Ithas the features of lightweight, high strength, excellent ratio of tension and weight

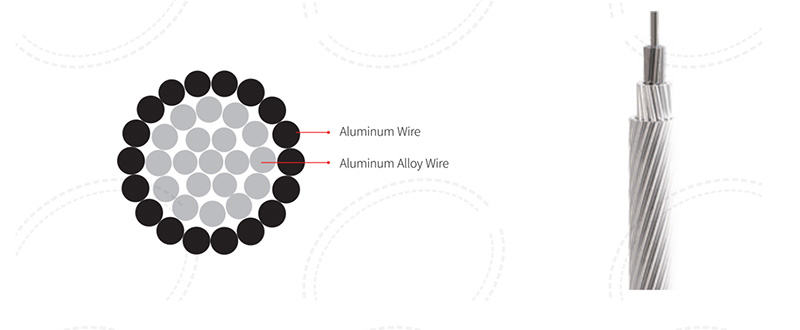

Product structural representation
Aluminum stranded conductor

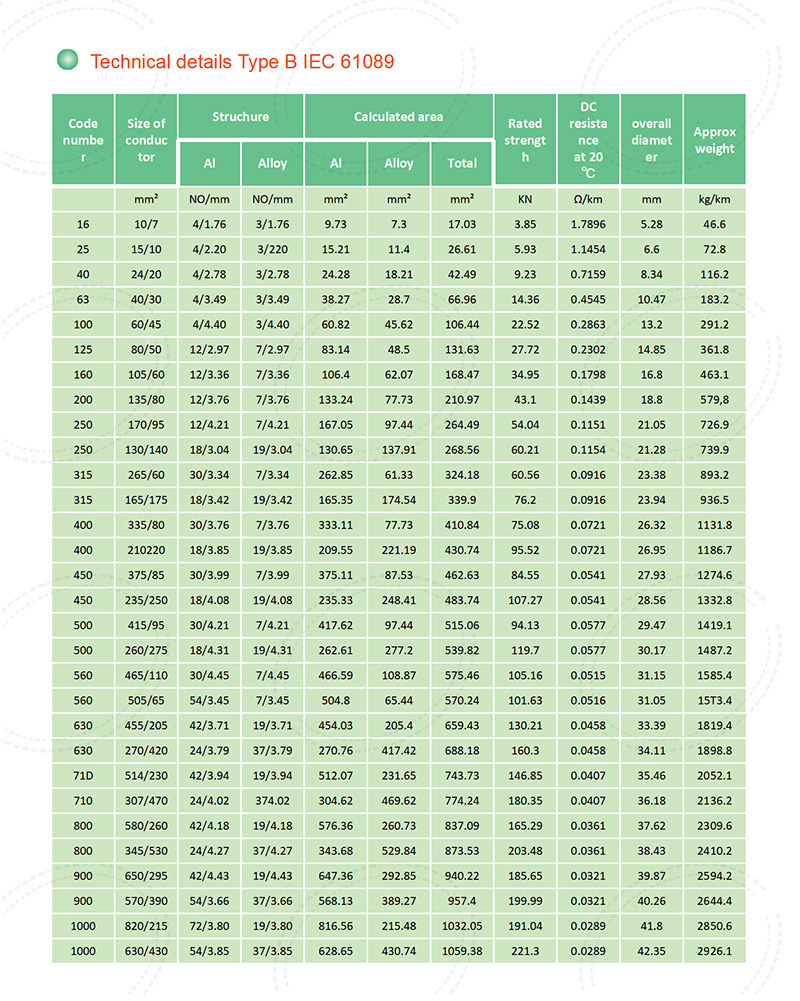

Technical details Type B IEC 61089
Technical details Type B IEC 61089

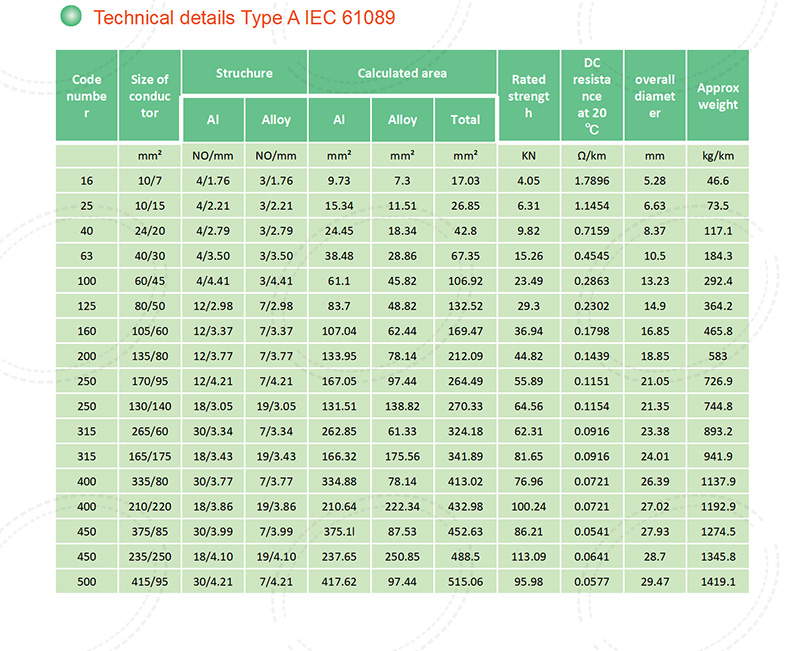

Technical details Type A IEC 61089

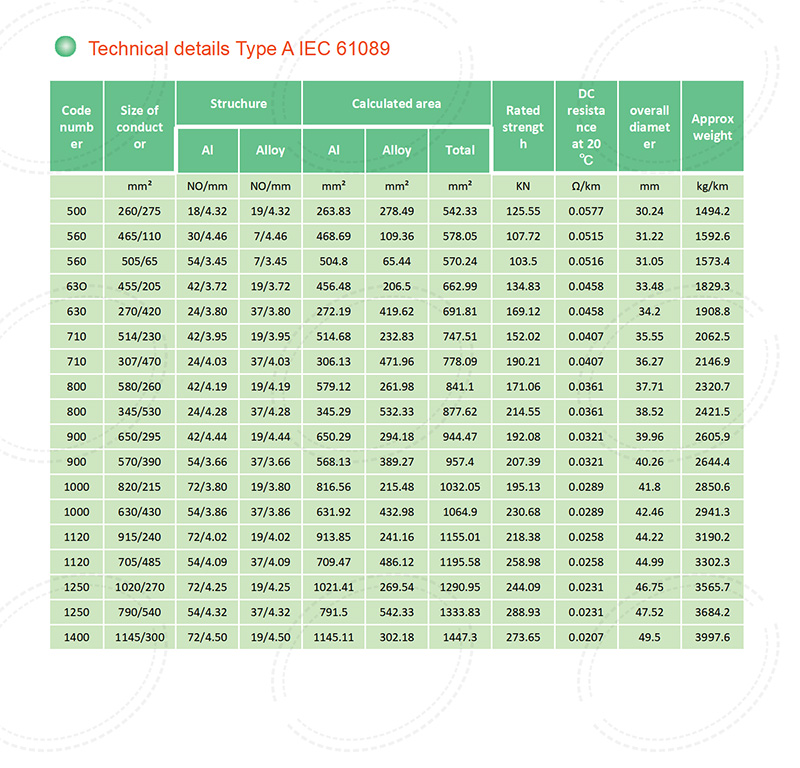

Technical details Type A IEC 61089
