0.6/1kV IEC 60502-1 PVC insulated,PVC sheathed,steel wire armoured power cable
IEC 60502-1

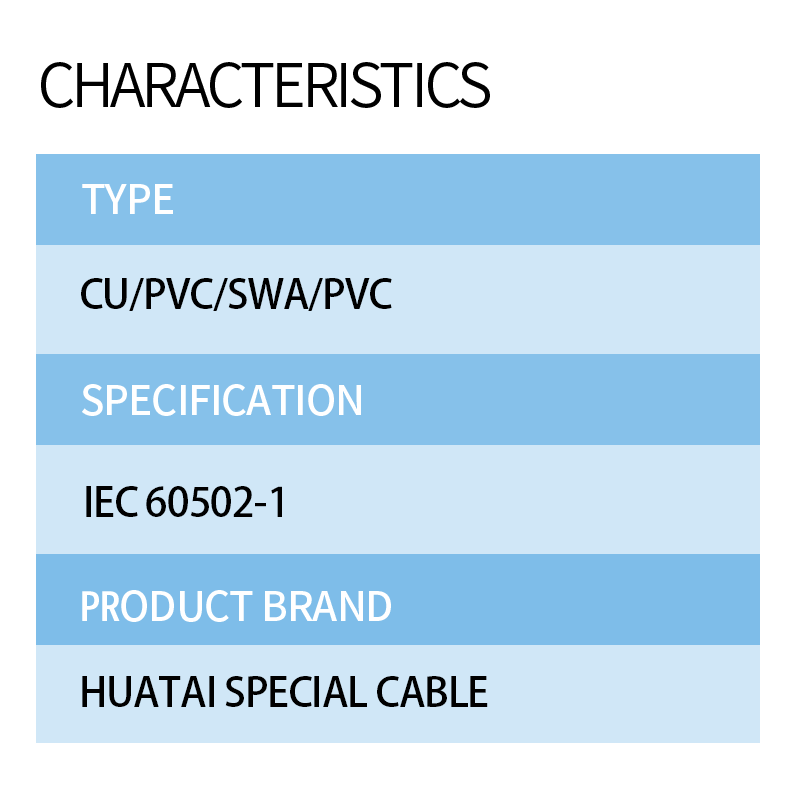

Characteristics
-
Short-circuit Temperature
160℃
-
Operating Temperature
70℃
-
Rated voltage
0.6/1kV
Description
TECHNICAL DATA
Type: Cu/PVC/SWA/PVC, AL/PVC/SWA/PVC
Specification: IEC 60502-1
Rated voltage: 0.6/1kV
Number of Cores: single-core,two-core,three-core,four-core,five-core,three-and-a-half core,three-and-two-half core,
four-and-a-half core.
Operating Temperature: 70℃
Short-circuit Temperature: 160℃

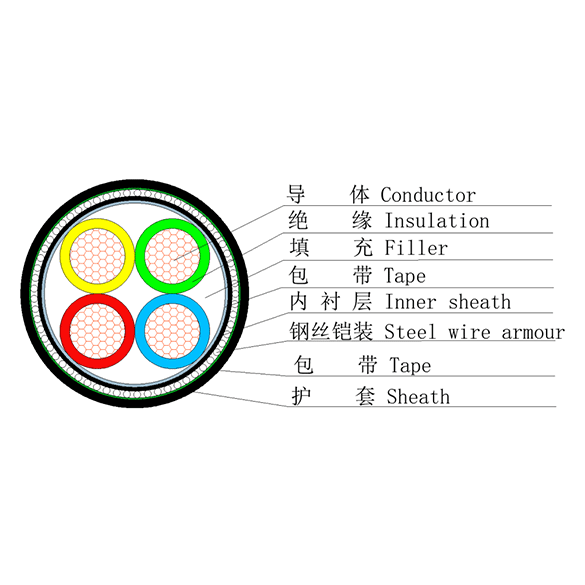

CABLE STRUCTURE
Conductors: Either of Class 1 or Class 2 of copper or aluminium conductor with IEC 60228.
Insulation: PVC compound according to PVC/A in IEC 60502-1.
Inner bell: extruded-type PVC or wrapped PVC tape
Armour: The armour of Muti-core cables are consist of galvanized steel wire,while that of single-core cables shall consist of Non-magnetic metal wire.
Outer sheath: PVC/ST1 according to IEC 60502-1.

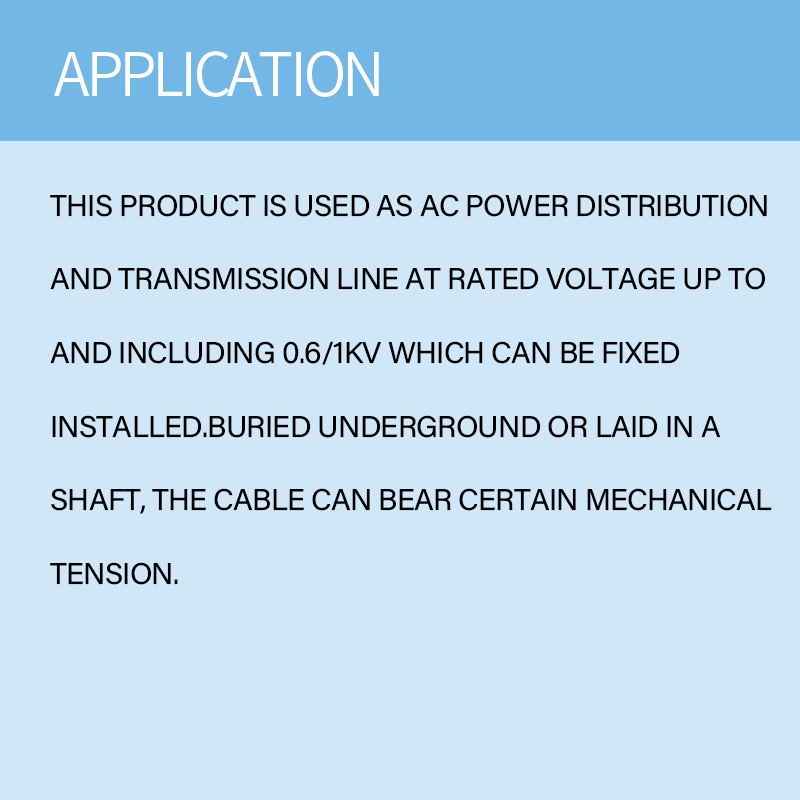

APPLICATION
This product is used as AC power distribution and transmission line at rated voltage up to and including 0.6/1kV which can be fixed installed.Buried underground or laid in a shaft, the cable can bear certain mechanical tension.
