BS EN 50182 All Aluminum Alloy Conductor
AAAC
- INQUIRY NOW
- PRICE CALC
- CATALOGUE
- COMPANY LOCATION

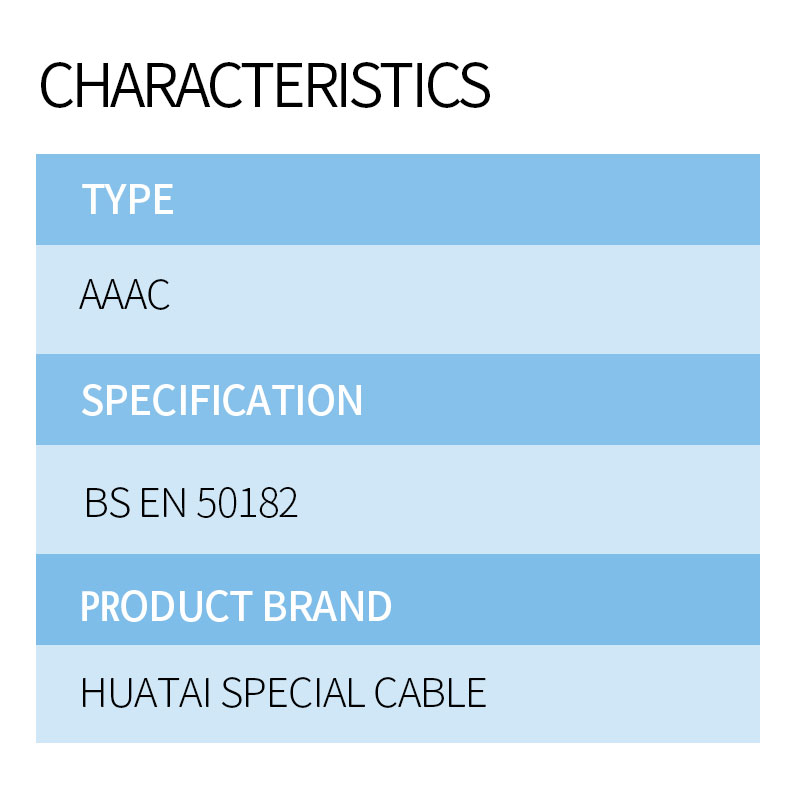

Characteristics
-
Type
AAAC
-
Specification
BS EN 50182
-
Product brand
huatai special cable
Description

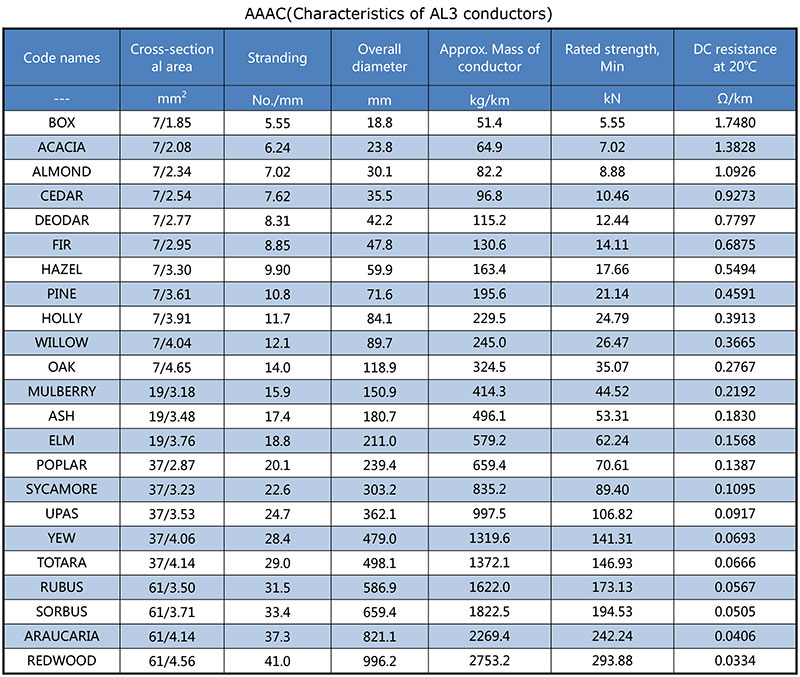

TECHNICAL DATA: Type: AAAC
Specification: BS EN 50182
CABLE STRUCTURE:
The conductor consists of seven or more round aluminium wires of the same nominal diameter twisted together in concentric layers.
Wires: aluminium alloy as per EN 50183 designated AL3.

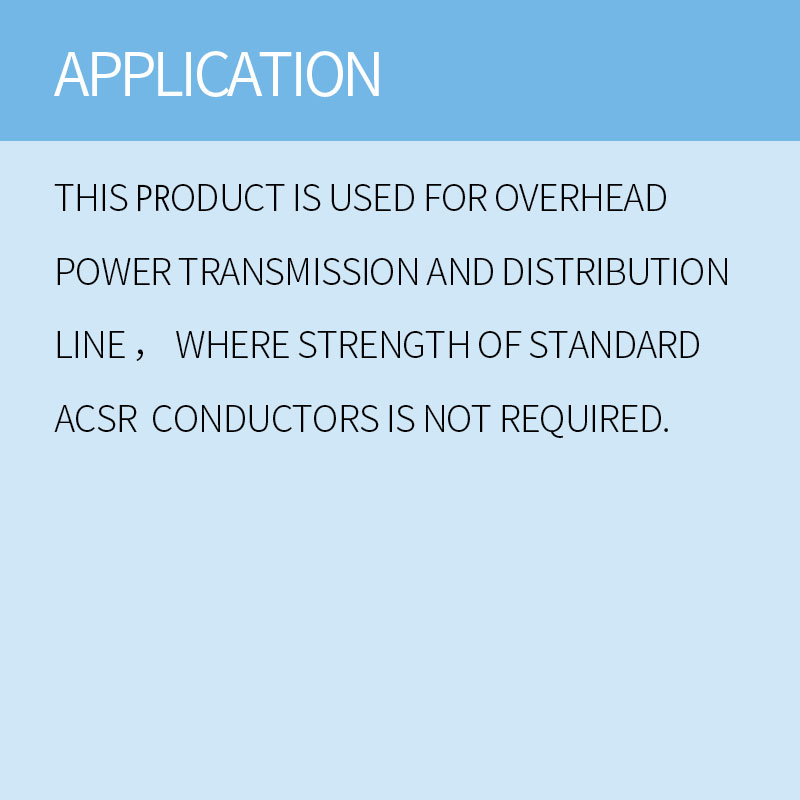

APPLICATION:
This product is used for overhead power transmission and distribution line，where strength of standard ACSR conductors is not required.
