0.6/1kV Fluoroplastics Insulated Power Cables
FF46

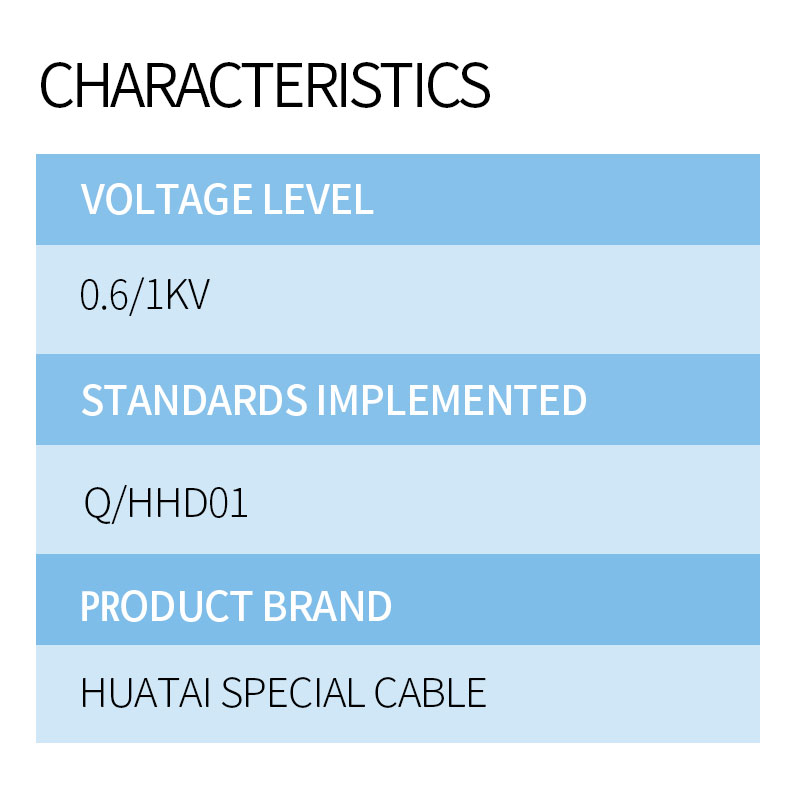

Characteristics
-
Voltage level
0.6/1kV
-
Standards implemented
Q/HHD01
-
Product brand
huatai special cable
Description
Fluoroplastics Insulated Power Cables
Standards implemented
It is manufactured according to Q/HHD01 Standard.
Application

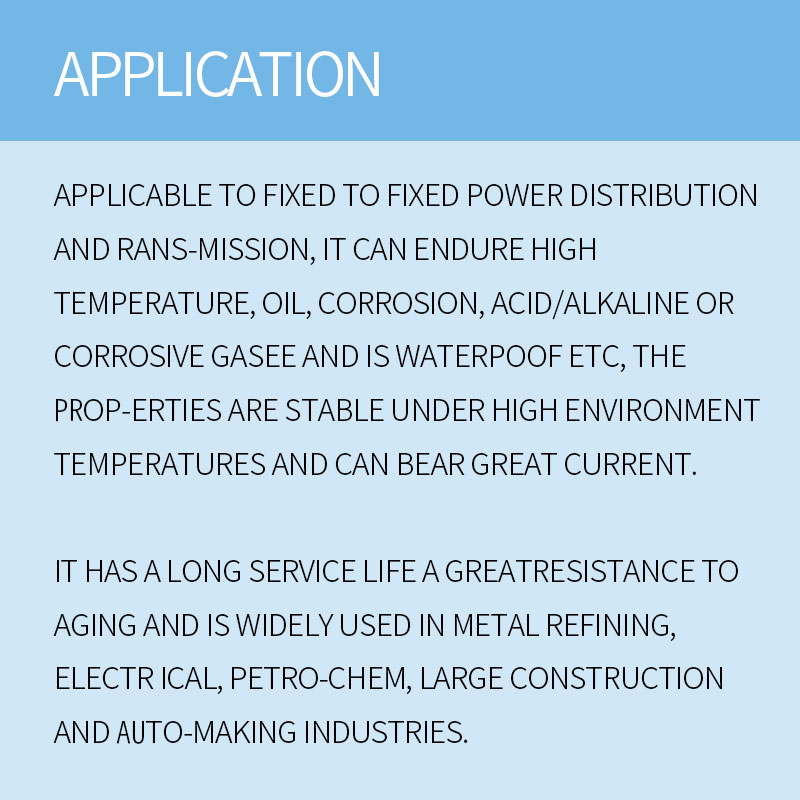

Applicable to fixed to fixed power distribution and rans-mission, It can endure high temperature, oil, corrosion, acid/alkaline or corrosive gasee and is waterpoof etc, the prop-erties are stable under high environment temperatures and can bear great current.
it has a long service life a greatresistance to aging and is widely used in metal refining, electr ical, petro-chem, large construction and auto-making industries.
Type and Designation
Remarks:Plus "R"to soft cable,the copper core can be tinned,"ZR192"is added to imported PFA(temperature endurance:260℃)
Fluoroplastics Insulated Power Cables
Model Explanation
For example:F46 insulated,F46 3 cores steel tape armor sheath,Nominal cross section area is 150mm2,is indicated with: FF22-2003×150 Q/HHTO2

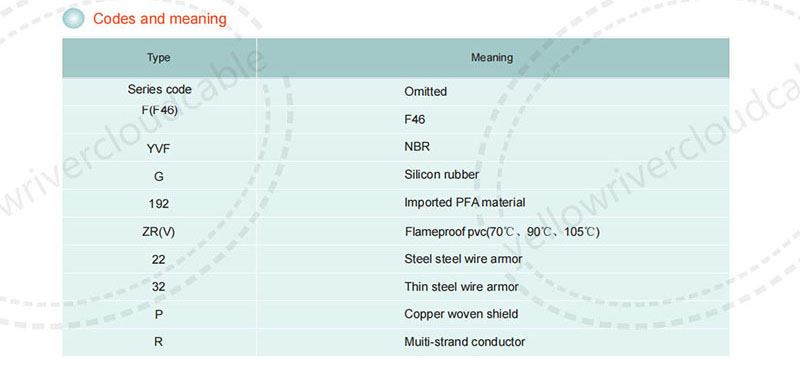

Codes and meaning
Using feature & Main Technical Performance
① Voltage rating Uo/U 0.6/1kV.
② Max working temperatures200 ℃(For F46)5260℃(For PFA)
③Min environment temperature: Fluoroplastic insulation and sheath-60℃(fixe laying);-15 C(non-fixed laying)
④laying temperature:≥C(e-25℃ for fluorop-lastics, sili-con rubber、 NBR sheaths)
⑤ Allowed bending radius:210 times the outer diameter of the singe-core cable;≥15 times the outer diameter of the multi-core cable.
Fluoroplastics Insulated Power Cables

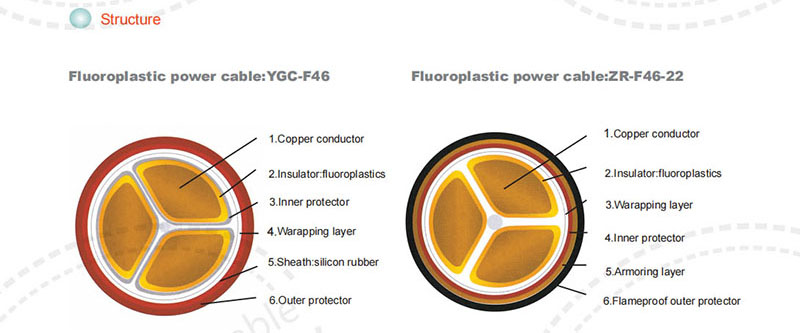

Structure
Main technologicalindexes
①As for Dc resistance of the cable(according to GB3956)
② insulation resistance:2500M Q/KM at20℃
③ It can endure 50HZ3.5KV/5min without puncture

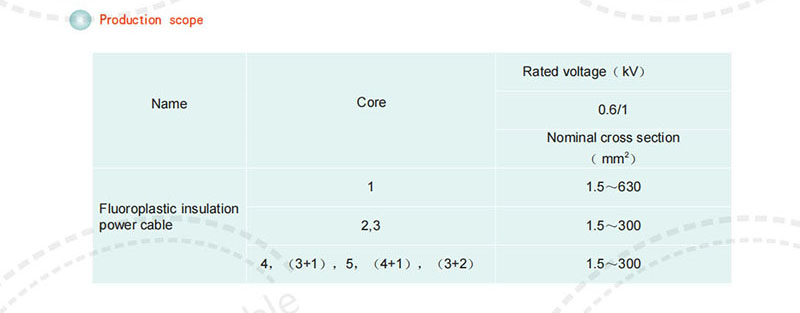

Production scope
