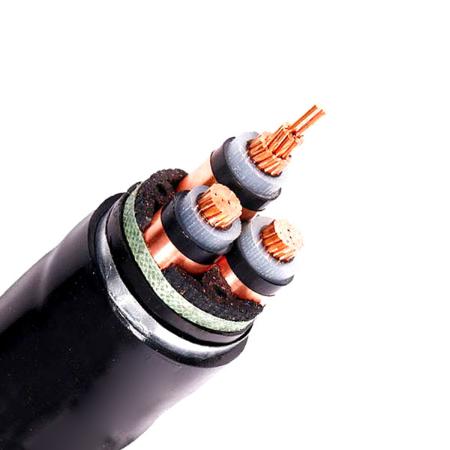

Three core XLPE insulated cables with copper conductor

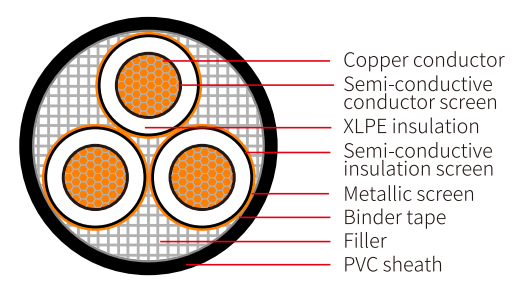

structure

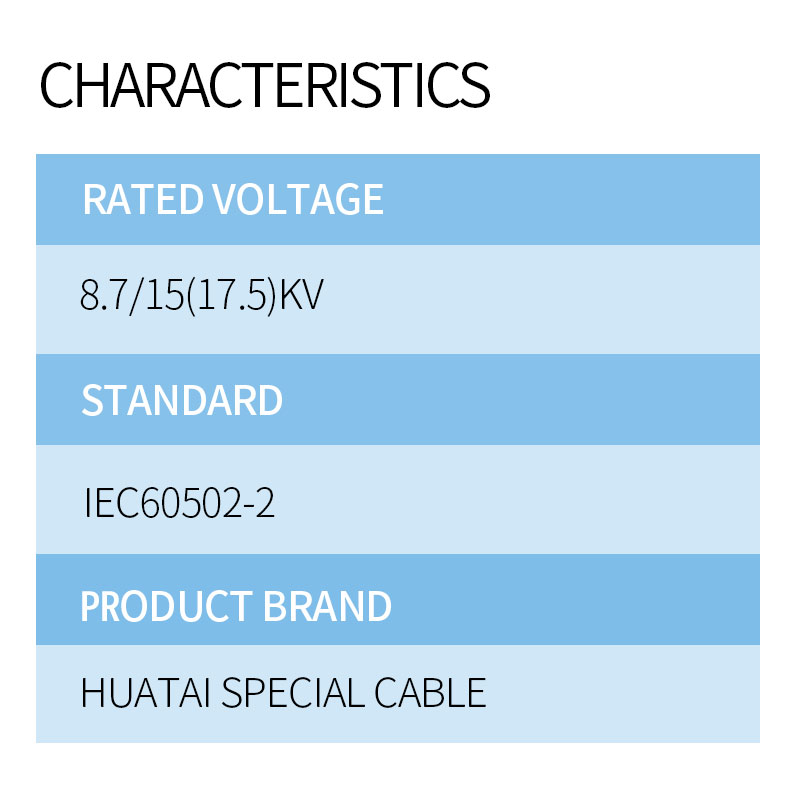

Standard:IEC60502-2

Rated voltage:8.7/15(17.5)kV

Test voltage:30.5kV/5 mins

Max.Short-circuit temperature:250℃

Operating conductor temperature:90℃

Min.temperature forlayingand manipulation

 with cables:-5℃

Temperature range for operating: from -35to+90°C

Colour of sheath: Black

Min. bending radius:15OD

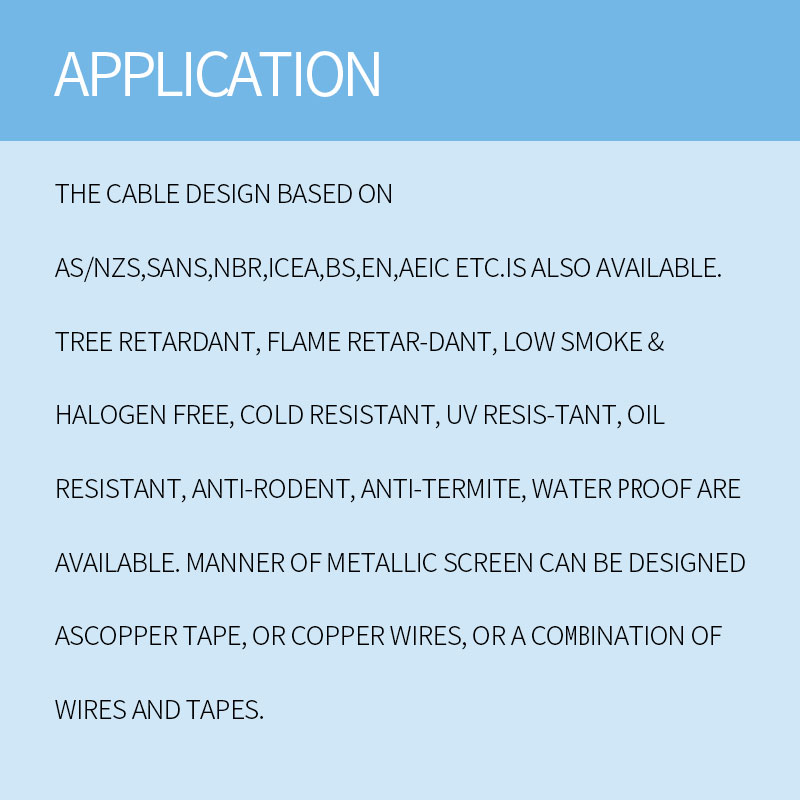

Application

1. The cable design based on AS/NZS,SANS,NBR,ICEA,BS,EN,AEIC etc.is also available. Tree retardant, Flame retar-dant, Low smoke & Halogen free, Cold resistant, UV resis-tant, Oil resistant, Anti-rodent, Anti-termite, water proof are available. Manner of metallic screen can be designed ascopper tape, or copper wires, or a combination of wires and tapes.

2. Cables are designed for fixed installationinto distributionnetwork or possibly damp environments. lf it is necessary tolay the cable in the ground, it has to be provided with a pro-tection tube made of plastics, and has to belaid in bed of sand. The cables are resistant to UV radiation and flame propagation according to lEC 60332.

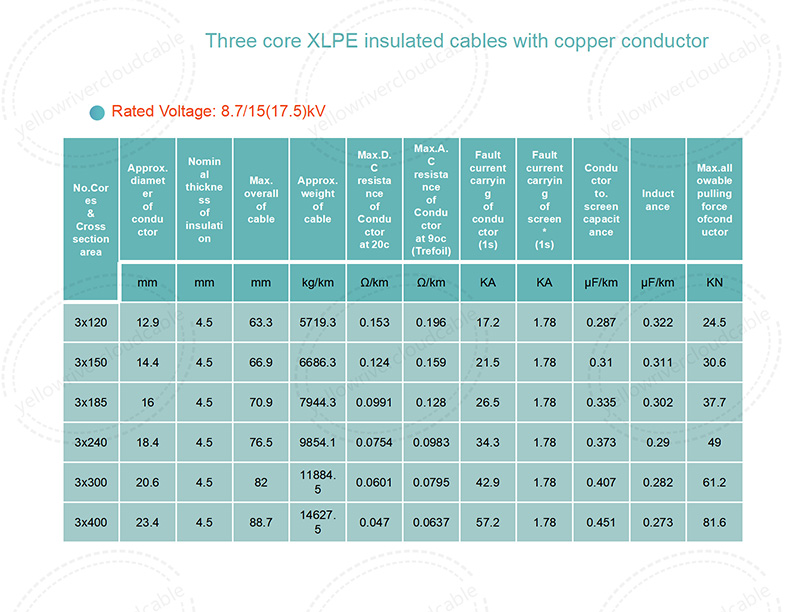

Rated Voltage:8.7/15(17.5)kV

Rated Voltage:8.7/15(17.5)kV
