BS 215-1 , BS EN 50182 All Aluminum Conductor
AAC
- INQUIRY NOW
- PRICE CALC
- CATALOGUE
- COMPANY LOCATION

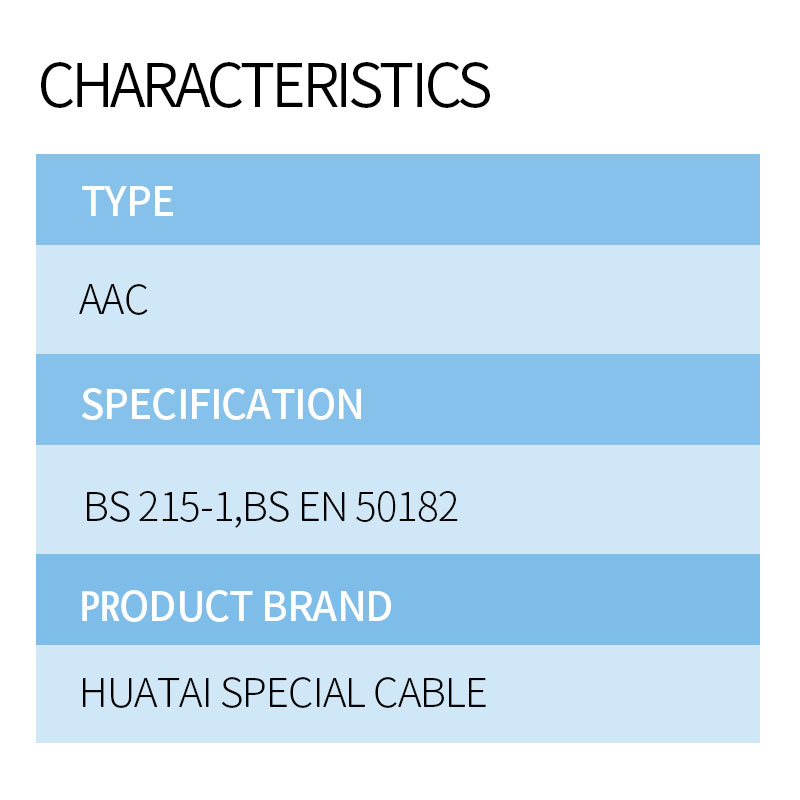

Characteristics
-
Type
AAC
-
Specification
BS 215-1,BS EN 50182
-
Product brand
huatai special cable
Description
TECHNICAL DATA:
Type: AAC
Specification: BS 215-1,BS EN 50182
CABLE STRUCTURE:
The conductor consists of seven or more round aluminium wires of the same nominal diameter twisted together in concentric layers.
Wires: hard drawn aluminium as per EN 60889 designated AL1.
APPLICATION:
This product is used for overhead power transmission and
distribution line ， where strength of standard ACSR
conductors is not required.

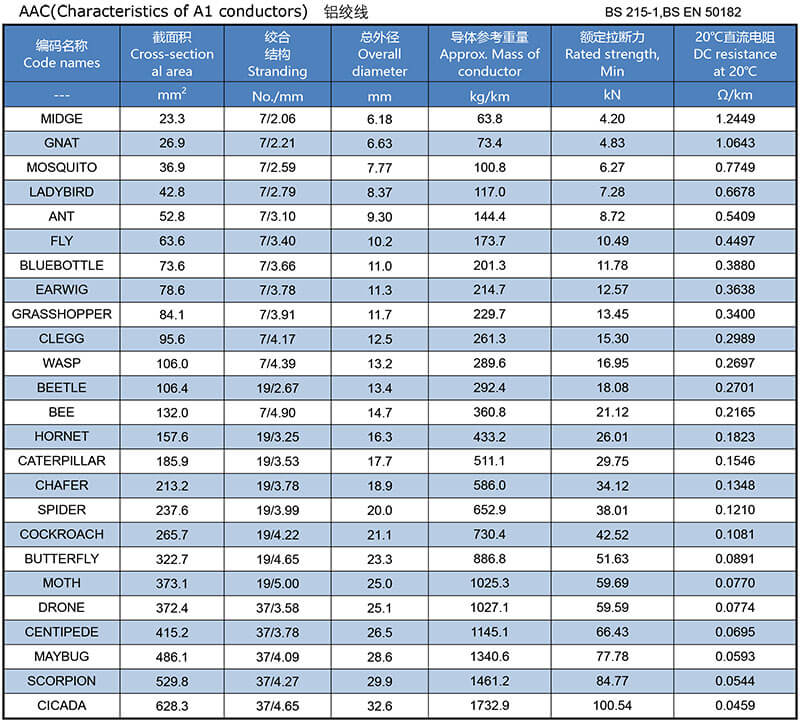

AAC(Characteristics of A1 conductors)
