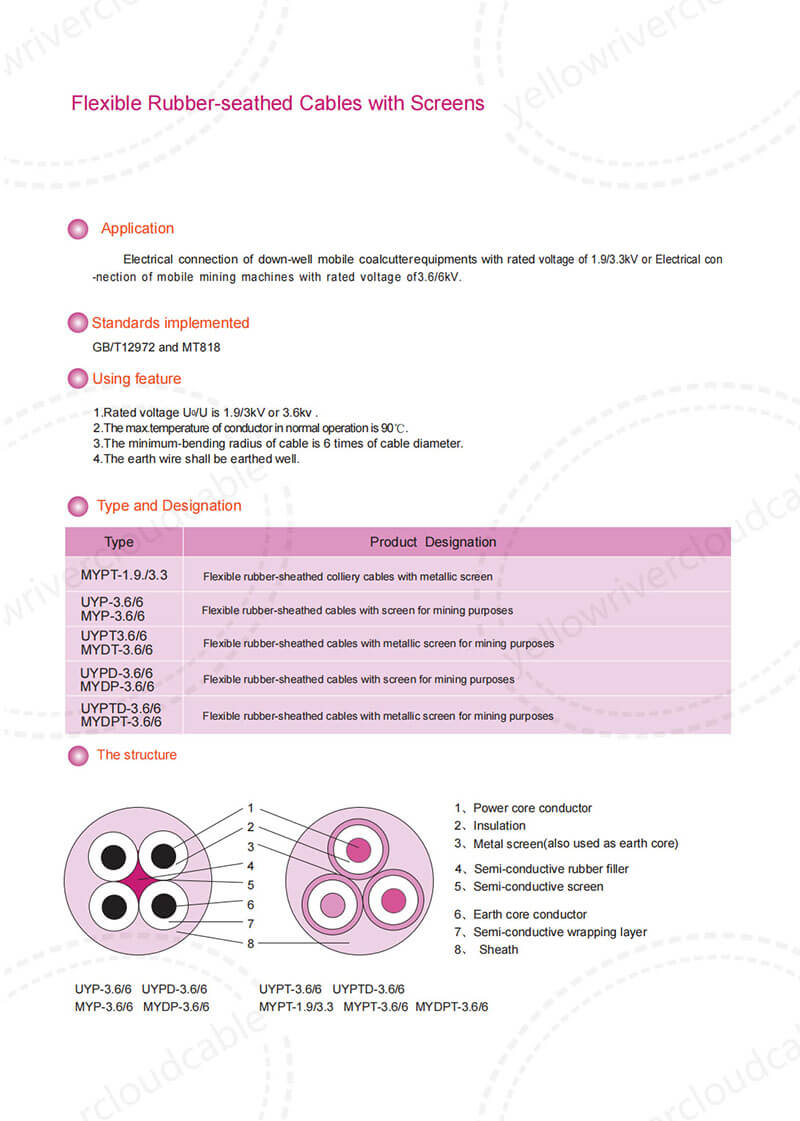

Flexible Rubber-seathed Cables with Screens1
UYP-3.6/6, MYP-3.6/6
- INQUIRY NOW
- PRICE CALC
- CATALOGUE
- COMPANY LOCATION

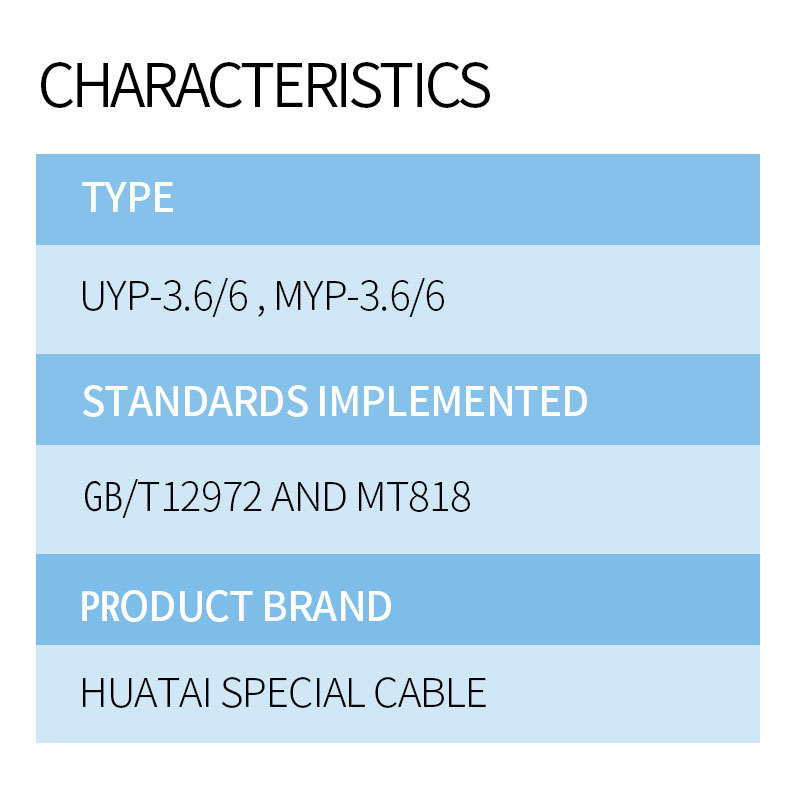

Characteristics
-
Type
UYP-3.6/6 , MYP-3.6/6
-
Standards implemented
GB/T12972 and MT818
-
Product brand
huatai special cable
Description

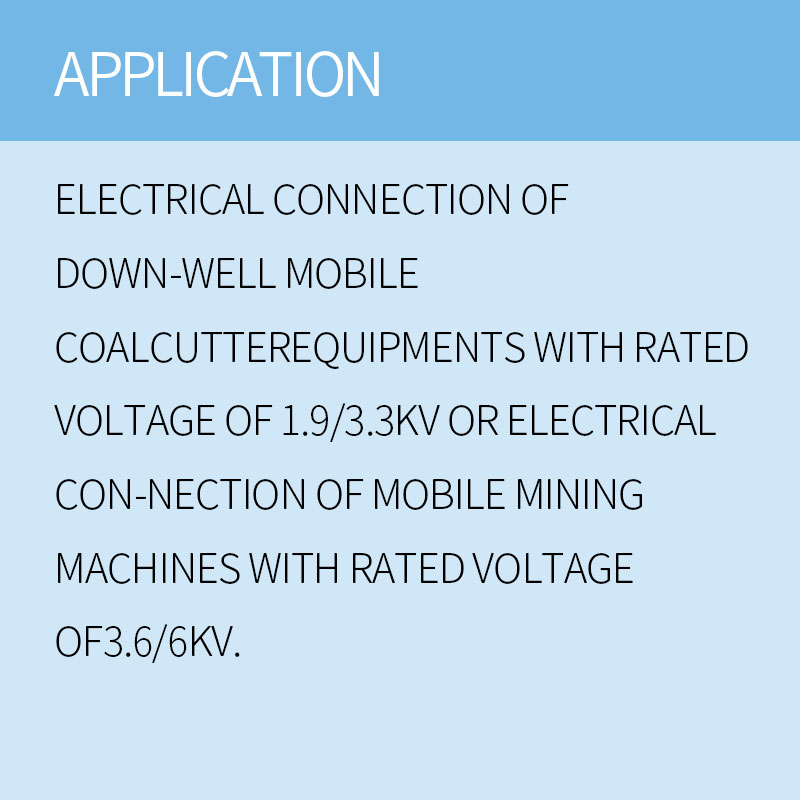

Application
Electrical connection of down-well mobile coalcutterequipments with rated voltage of 1.9/3.3kV or Electrical con-nection of mobile mining machines with rated voltage of3.6/6kV.
Standards implemented
GB/T12972 and MT818
Using feature
1.Rated voltage U0/U is 1.9/3kV or 3.6kv .
2.The max.temperature of conductor in normal operation is 90℃.
3.The minimum-bending radius of cable is 6 times of cable diameter.
4.The earth wire shall be earthed well.
