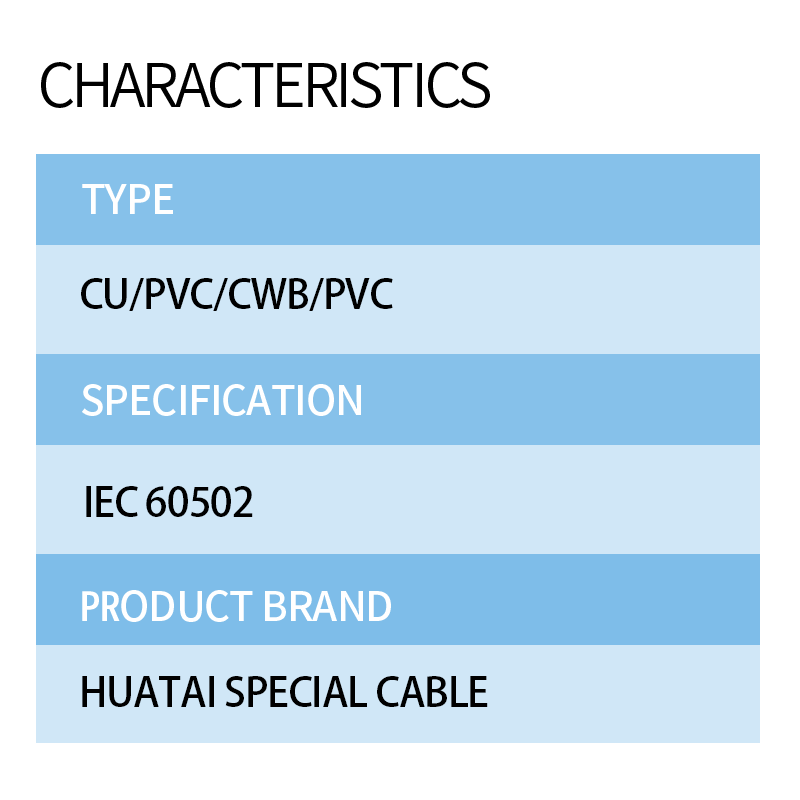

TECHNICAL DATA:

Type: Cu/PVC/CWB/PVC

Specification: GB/T 9330、IEC 60502

Rated voltage: 450/750V、0.6/1kV

Number of Cores: two-core,three-core,four-core,five-core,seven-core, eight-core,ten-core,twelve-core,fourteen-core,sixteen-core,nineteen-core,twenty-four-core,twenty-seven-core, thirty-core, thirty-seven-core, forty-four-core, forty-eight-core, fifty-two-core, sixty-one-core.

Operating Temperature: 70℃

Short-circuit Temperature: 160℃

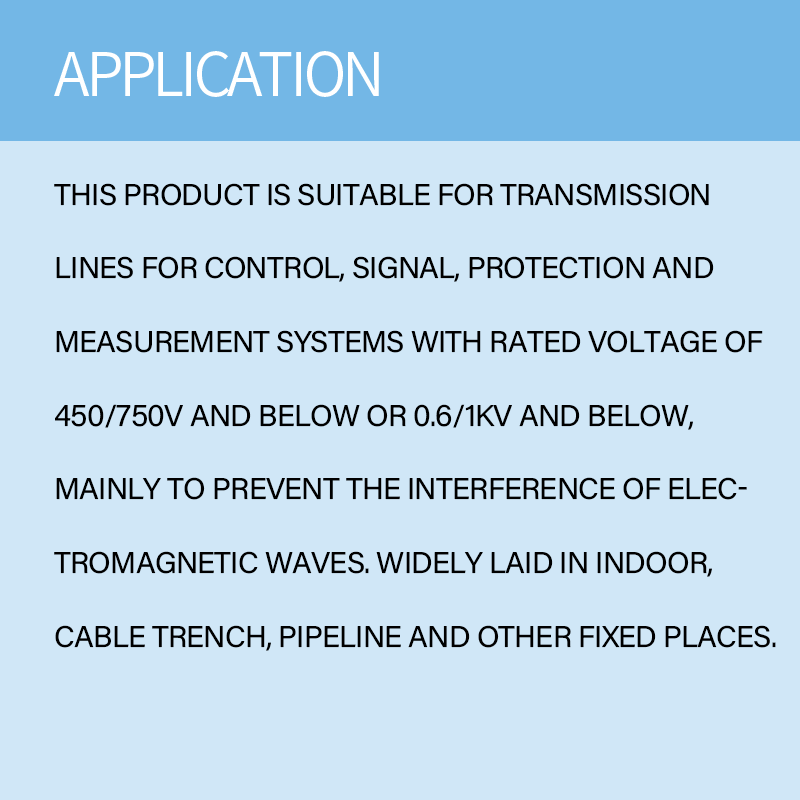

APPLICATION:

This product is suitable for transmission lines for control, signal, protection and measurement systems with rated voltage of 450/750V and below or 0.6/1kV and below, mainly to prevent the interference of electromagnetic waves. Widely laid in indoor, cable trench, pipeline and other fixed places.

CABLE STRUCTURE:

Conductors: Either of Class 1 or Class 2 of copper conductor with IEC 60228.

Insulation:PVC/A in accordance with GB/T 9330/IEC 60502.

Shielding: soft round copper wire or tinned round copper wire conforming to GB/T 9330 or IEC 60502.

Outer sheath: PVC/ST₁ according to GB/T 9330/IEC 60502.

OPERATIONAL PERFORMANCE：

The maximum allowable long-term working temperature of the cable is 70℃.

The ambient temperature of cable laying should not be lower than 0℃.

The recommended allowable bending radius of the cable shall not be less than 6 times of the outer diameter of the cable.
