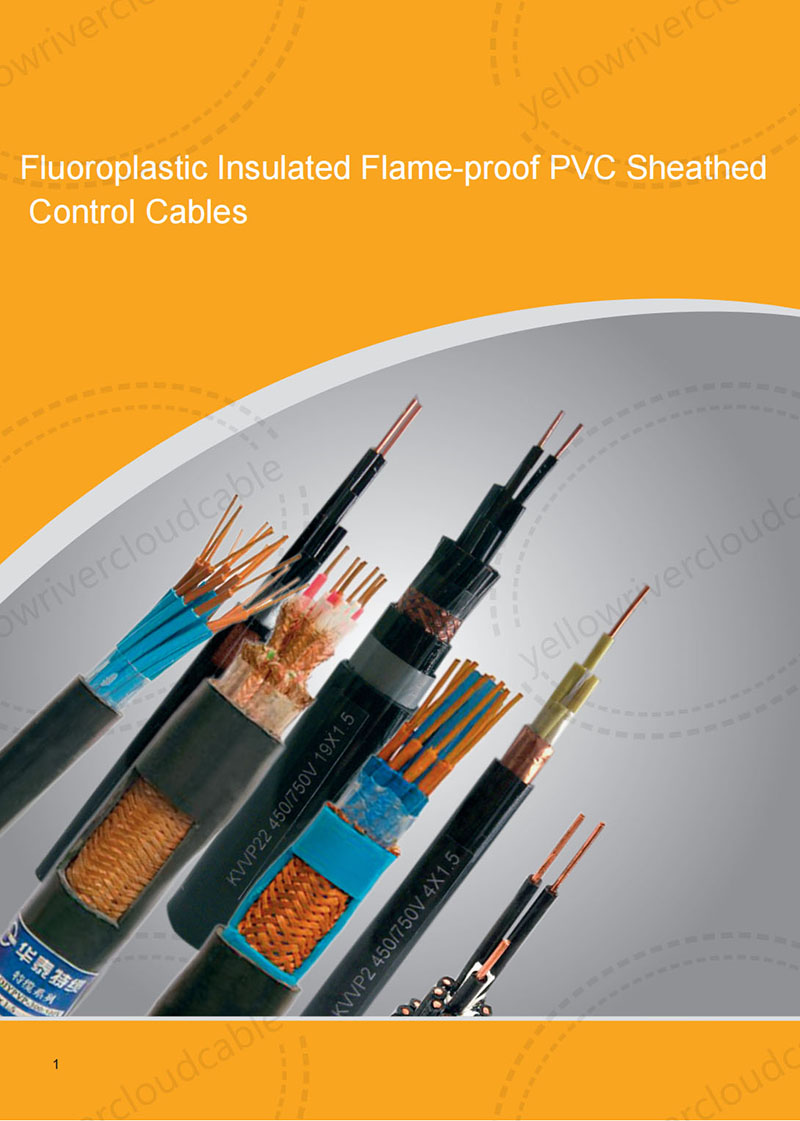

Fluoroplastic Insulated Flame-proof PVC Sheathed Control Cables
ZR-KFV

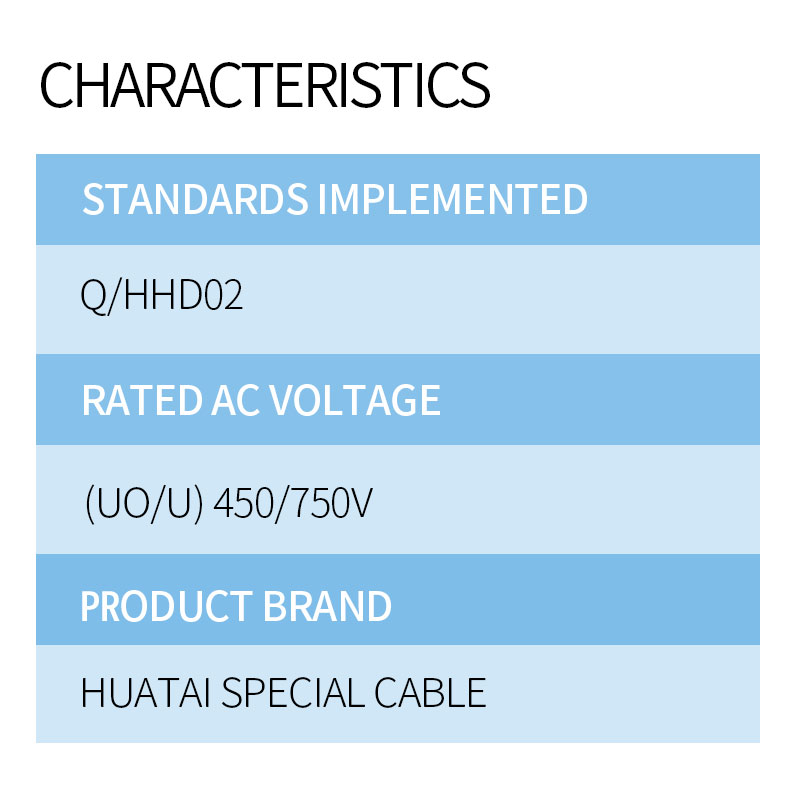

Characteristics
-
Standards implemented
Q/HHD02
-
Rated AC Voltage
(Uo/U) 450/750V
-
Product brand
huatai special cable
Description
Fluoroplastic Insulated Flame-proof PVC Sheathed Control Cables
Standards implemented
It is manufactured according to Q/HHDO2 standard.
Flame-proof property accord with GB/T18380.3(IEC60332-3).
Applications
Fluoroplastic insulated flame-proof PVC sheathed control cable has a very good property for resistant caus
-ticity of chemical solvent. It is used as a connecting wire of electrical equipment and instrument, transmitting wire of automatic control system for rock oil, chemical, electricpower, metallurgical and so on industry enterprise withrated voltage up to (U/Uo)450/750V.
Using feature
1. Rated AC Voltage:(Uo/U)450/750V
2. Max working temp:≤200℃ for F46 insulation PFAS260℃ for PFA insulation
3. The lowest environment temperature: Fixed deploying-40℃ Non-Fixed deploying-15℃
4. Mounting and deploying temperature:<0℃
5. Permited minimum bending radius: Not smaller than 12 times diameter for copper tape shield or steel wire winding and 6 times outer diameter for other cables

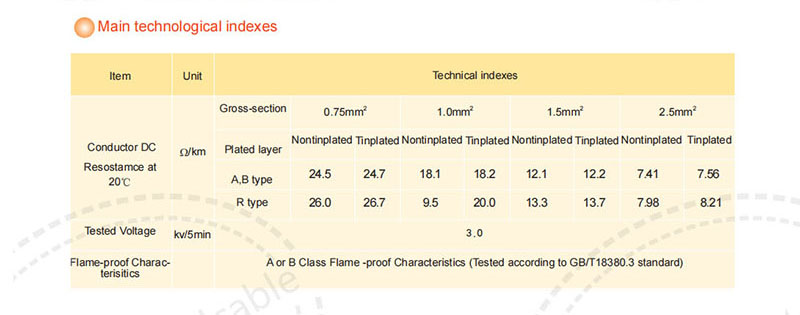

Main technological indexes

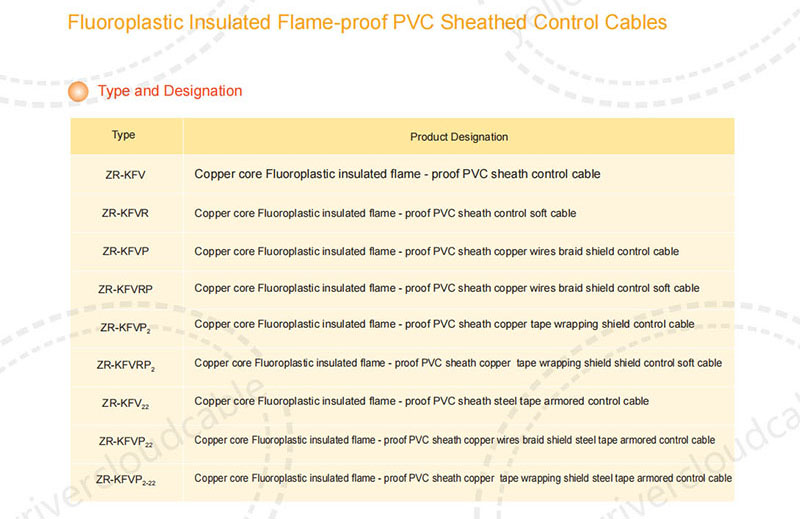

Type and Designation

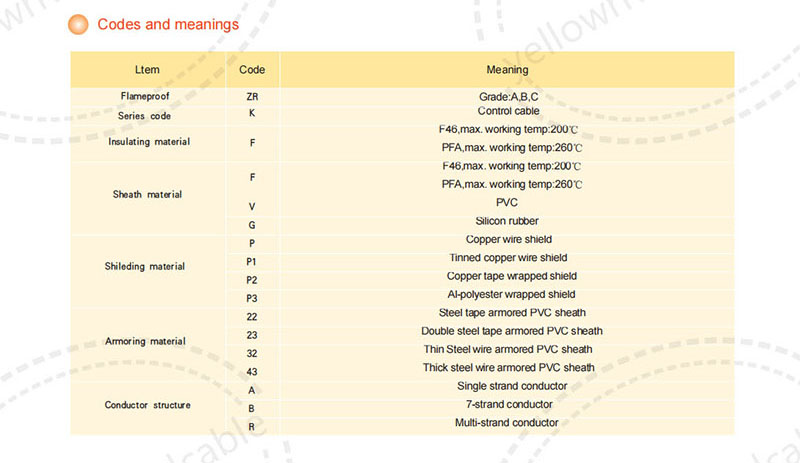

Codes and meanings
Indication example
450/750VCopper core Fluoroplastic insulated flame-proof PVC sheathed copper wire braid shielded controlcable,12 cores, standard cross-section of conductor 1.0mm², single thread for each core. Indicated as: ZR-KFVP 450/750V12×1.0mm²
450/750VCopper core Fluoroplastic insulated flame-proof PVC sheathed, Composite Copper-plastic tape shielded control cable,12 cores, Standard cross-section of conductor 1.5mm² .
Every core is twisted by 30 cop-per thread of 0.25mm. Indicated as: ZR-KFVRP-450/750V12×1.5mm²

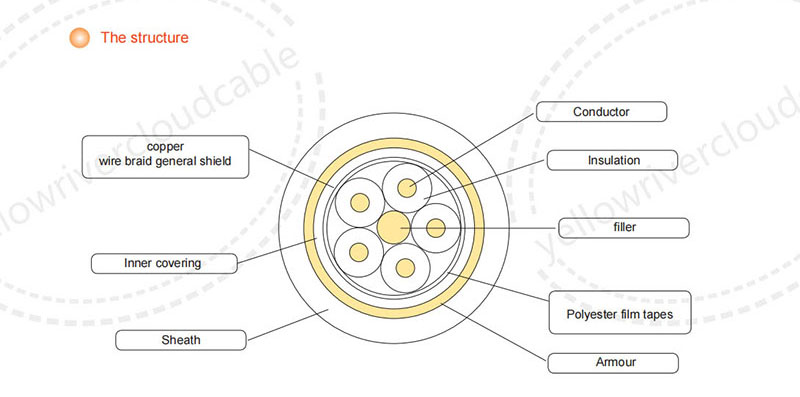

The structure

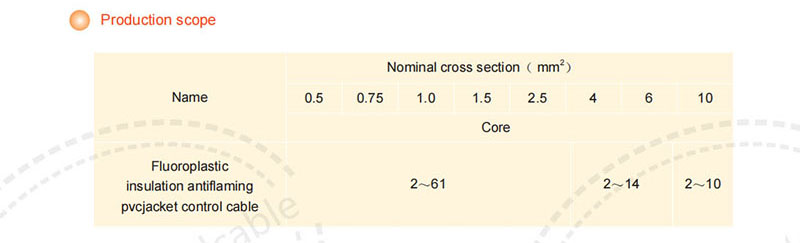

Production scope
