300/500V Multi-core PVC insulated and sheathed cord
60227 IEC 53,60227 IEC 53(RVV) , H05VV-F
- INQUIRY NOW
- PRICE CALC
- CATALOGUE
- COMPANY LOCATION

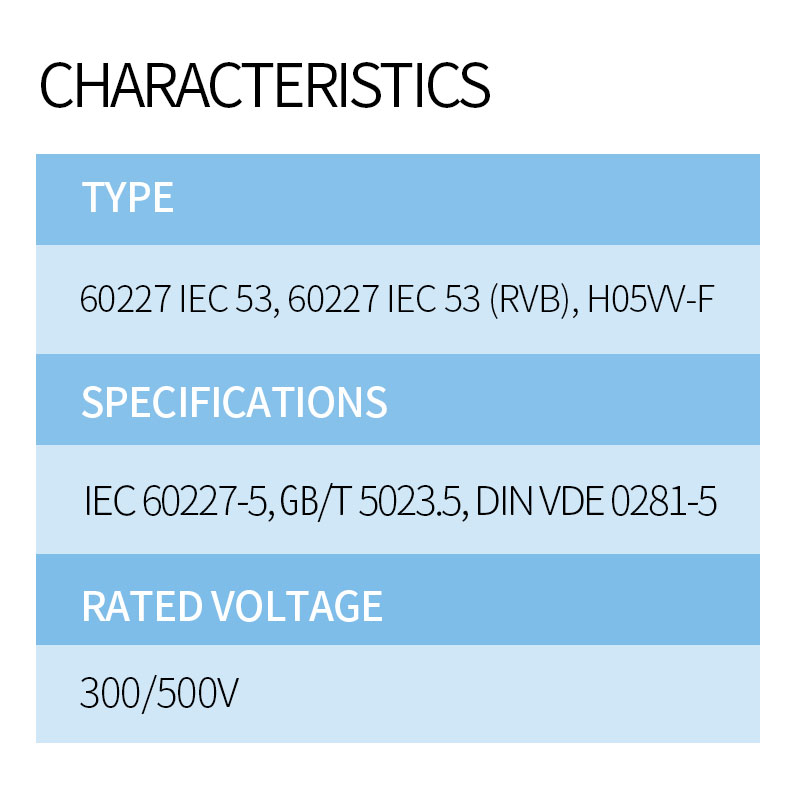

Characteristics
-
Type
60227 IEC 53, 60227 IEC 53 (RVV), H05VV-F
-
Specifications
IEC 60227-5, GB/T 5023.5, DIN VDE 0281-5
-
Rated voltage
300/500V
Description
TECHNICAL DATA:
Type:60227 IEC 53,60227 IEC 53(RVV), H05VV-F
Specification: IEC 60227-5,GB/T 5023.5,DIN VDE 0281-5
Rated voltage:300/500V
Number of Cores: multi-core
Operating Temperature:70℃
Short-circuit Temperature:160℃

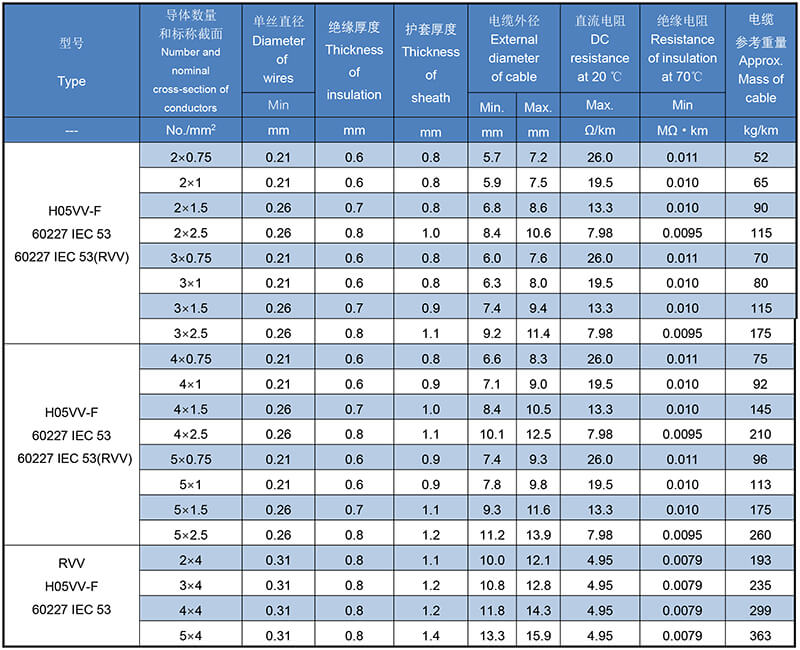

CABLE STRUCTURE:
Conductors: Class 1 for solid conductor in accordance with IEC 60228,GB/T 3956,HD 383.
Insulation: PVC compound according to IEC 60227-1,GB/T 5023.1,DIN VED 0281-1.

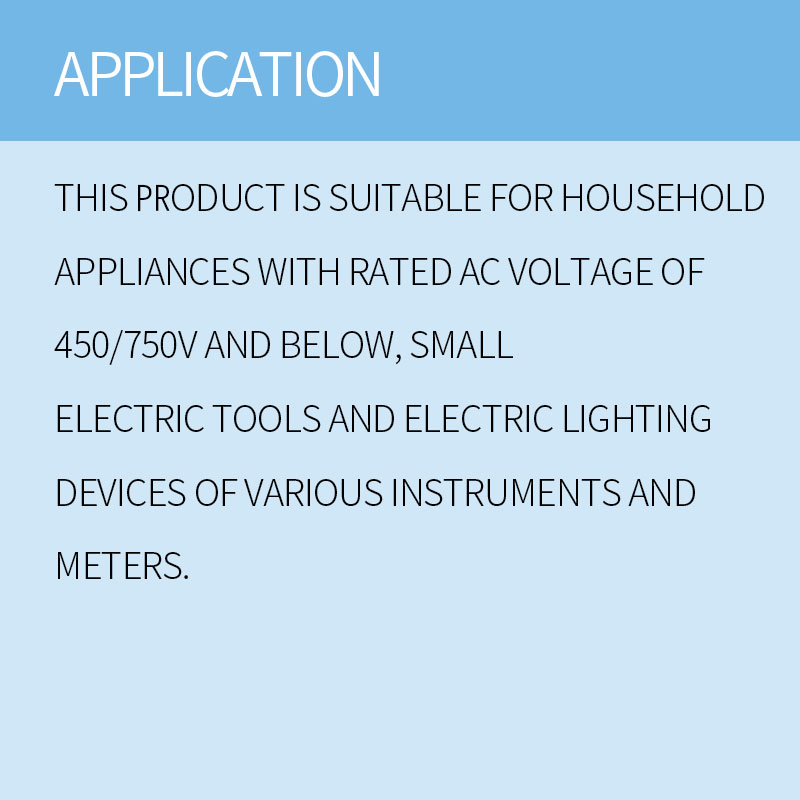

APPLICATION:
This product is suitable for household appliances with rated AC voltage of 450/750V and below, small
electric tools and electric lighting devices of various instruments and meters.
