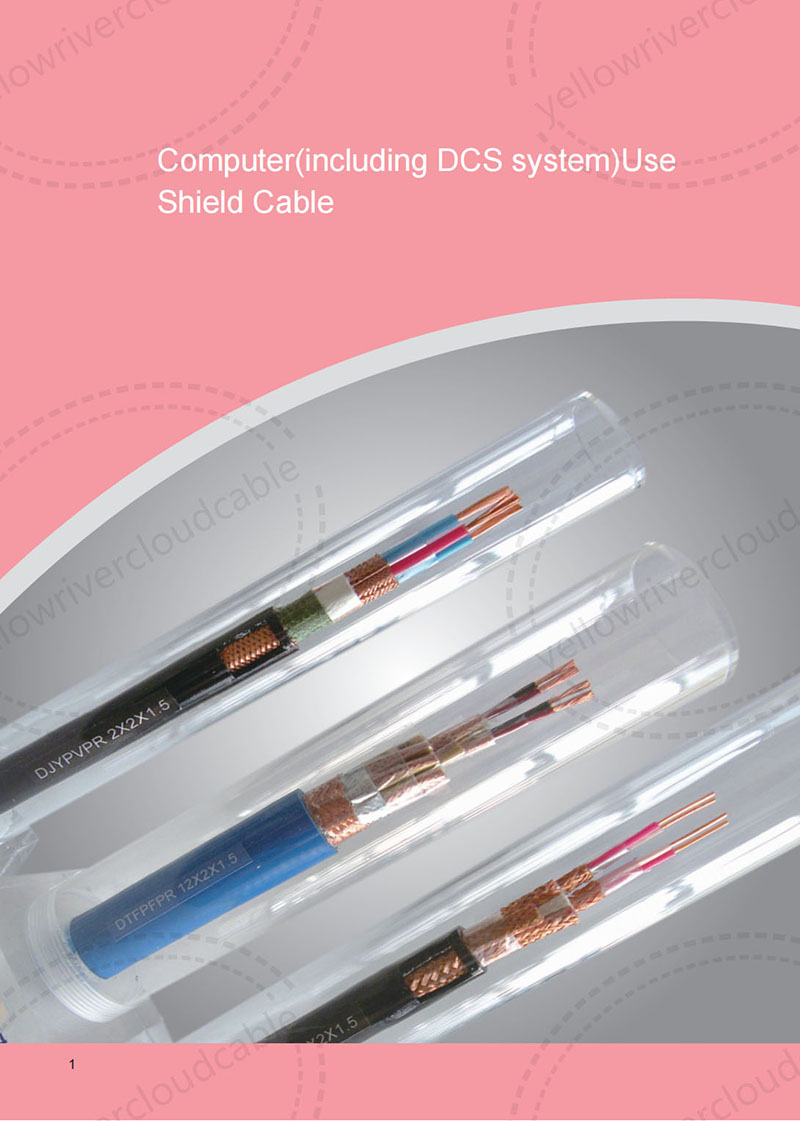

Computer(including DCS system)Use Shield Cable
Q/HHD05

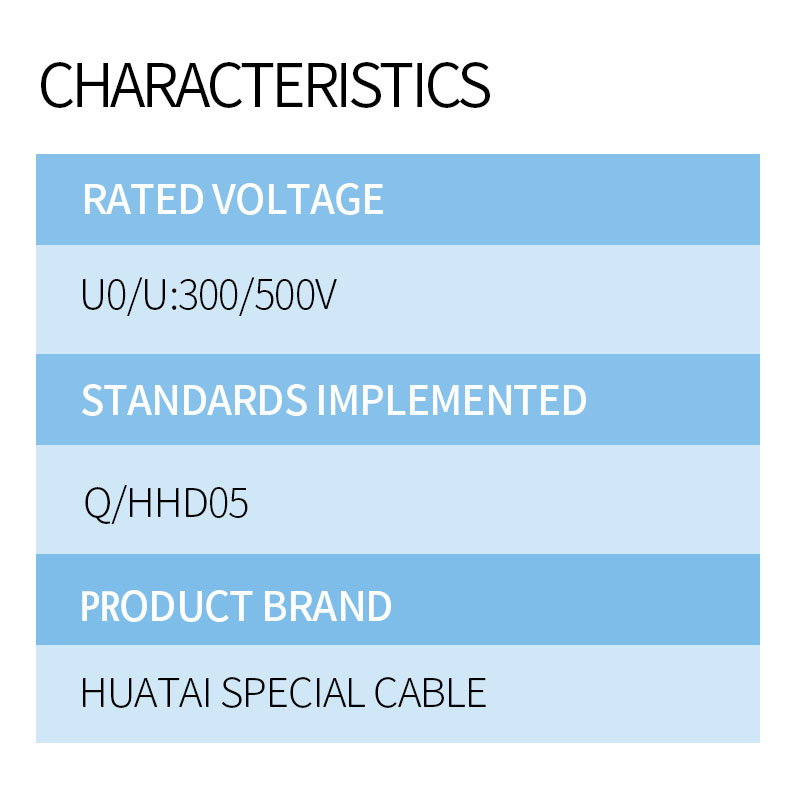

Characteristics
-
Rated voltage
U0/U:300/500V
-
Standards implemented
Q/HHD05
-
Product brand
huatai special cable
Description
Computer(including DCS system) Use Shield Cable
Standards implemented
It is manufactured according to Q/HHDO5 standard (equal to BS5308-86)
Application
It is used as sighal transmission and connection of checking appliances of distribution system, computer sys-tem and automatic system of power-generating metallurgy petroline chemistry.

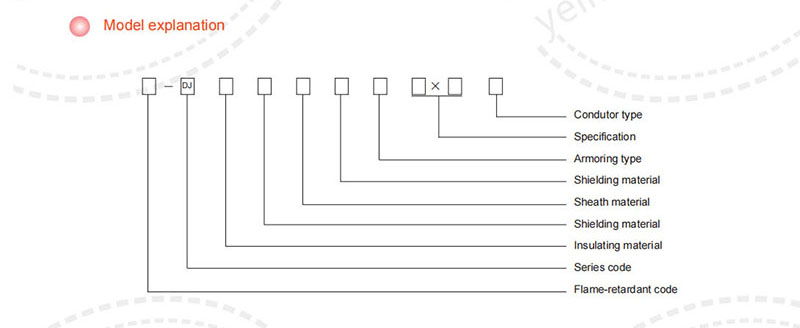

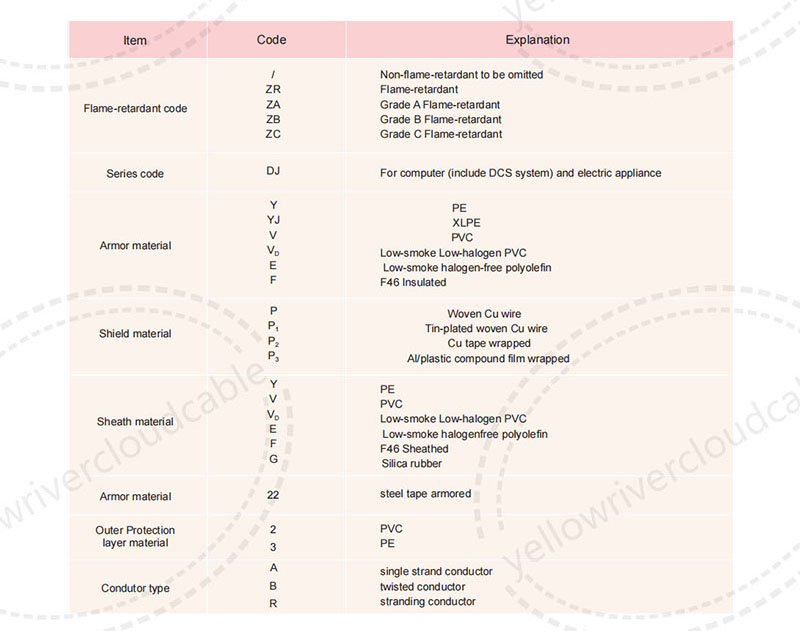

Model explanation
E.G.1: PE insulated PVC sheathed 12 pairs each unit two cores
(two-core group)0.75mm2 computer cable described as:1
. Woven Cu-wire seperate shielded:(Type A conductor)
DJYPV 12×(2×0.75)A
2. Woven Cu-wire seperate and general shielded:(Type B conductor)
DJYPVP 12×(2×0.75)B
3. Woven Cu-wire general shielded:(Type R conductor)
DJYVP 12×(2×0.75)R
4. Cu tape seperate shielded:(Type B conductor)
DJYP2V12×(2×0.75)B
5. Al/plastic compound seperate and general shielded:(Type R conductor) DJYPaVPa12×(2×0.75)R
6. Woven Cu-wire seperate shielded with steel tape armored:(Type A conductor) DJYPV22 12×(2×0.75)
7. Cu tape seperate and general shielded with steel tape armored:
(Type B conductor) DJYP2VP222 12×(2×0.75)B
8. Al/plastic compound film seperate with steel tape armored:
(Type A conductor) DJYPVP32212×(2×0.75)A
E.G.2: Cu-core PE insulated PVC sheathed 10 pairs each unit three cores(three-core group)1.0mm2computer cable described as:1
. Woren Cu-wire seperate shielded:(Type B conductor)
DJYPV 10×(3×1.0)B
2. Al/plastic compound film seperate shielded and general shielded:
(Type R conductor) DJYP3VP3 10×(3×1.0)R3
. Cu tape general shielded:(Type A conductor)
DJYVP210×(3×1.0)A
4. Woren Cu-wire seperate shielded steel tape armored:(Type B conductor) DJYPV2210×(3×1.0)B Main technological indexes

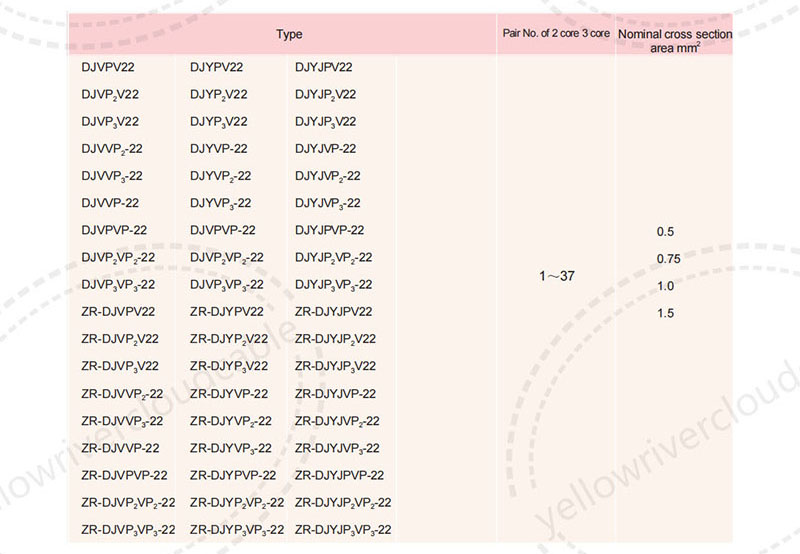

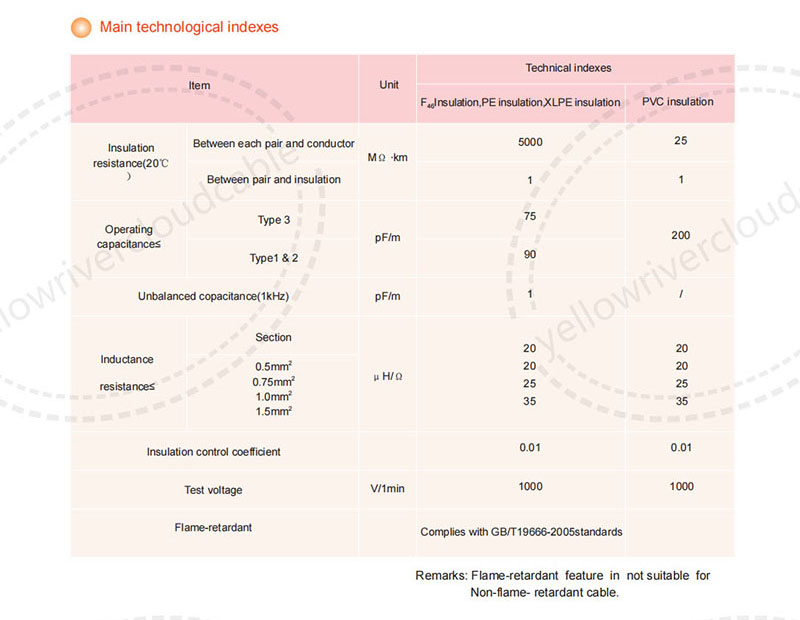

Main technological indexes
Delivery length
Non-armored cable 10 pais and below 1000m, more than 10 pairs 500m.
Armored cable 8 pairs and below 1000m, more than 8pairs 500m.
Short length more than 50m can be delivered but notexceed 6%of total delivery special requirment can be dis-cussed between supplier and buyer.
