Single core XLPE insulated cables with copper conductor

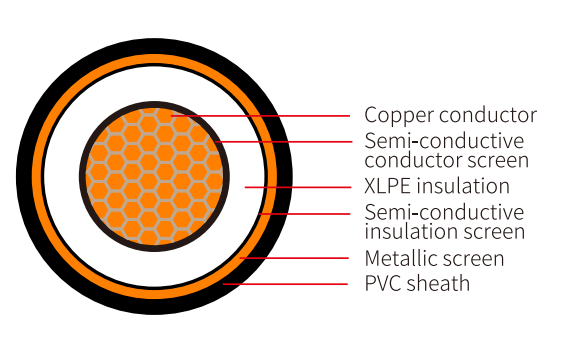

structure

Standard:IEC60502-2

Rated voltage:12/20(24)kV or 12.7/22(24)kV

Test voltage:42kV/5 mins

Max.Short-circuit temperature:250℃

Operating conductor temperature:90℃

Min.temperature forlayingand manipulation

with cables:-5℃

Temperature range for operating: from -35to+90°C

Colour of sheath: Black

Min. bending radius:20OD

Application

1.The cable design based on AS/NZS, SANS, NBR, ICEA, BS,EN, AEIC etc. is also available. Tree retardant, Flame retar-dant, Low smoke & Halogen free, Cold resistant, UV resis-tant, Oil resistant, Anti-rodent, Anti-termite, water proof are available. Manner of metallic screen can be designed ascopper tape, or copper wires, or a combination of wires andtapes.

2.Cables are designed for fixed installation into distribution network or possibly damp environments.lf it is necessary tolay the cable in the ground,ithasto be provided witha pro-tection tube made of plastics, and has to belaid in bed ofsand. The cables are resistant to Uvradiation and flame propagation according to lEC 60332.

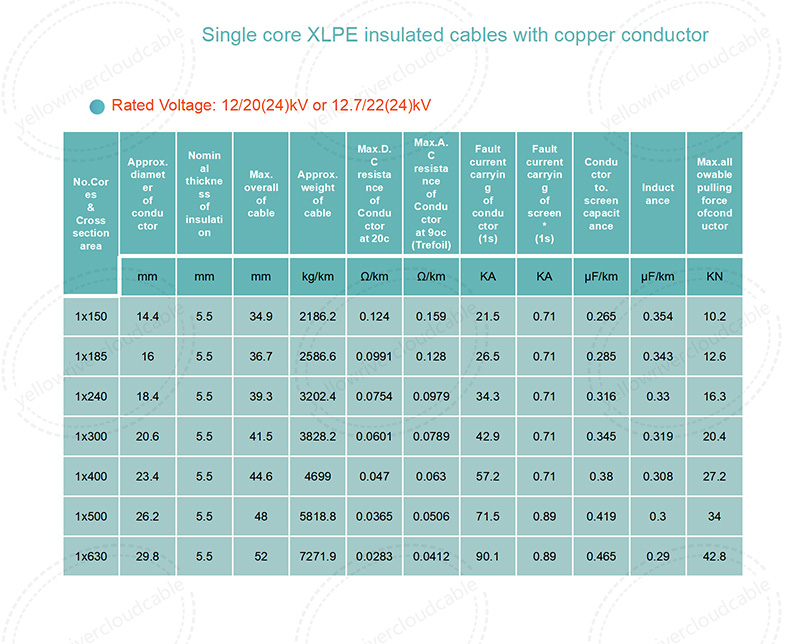

Rated Voltage:12/20(24)kV or 12.7/22(24)kV

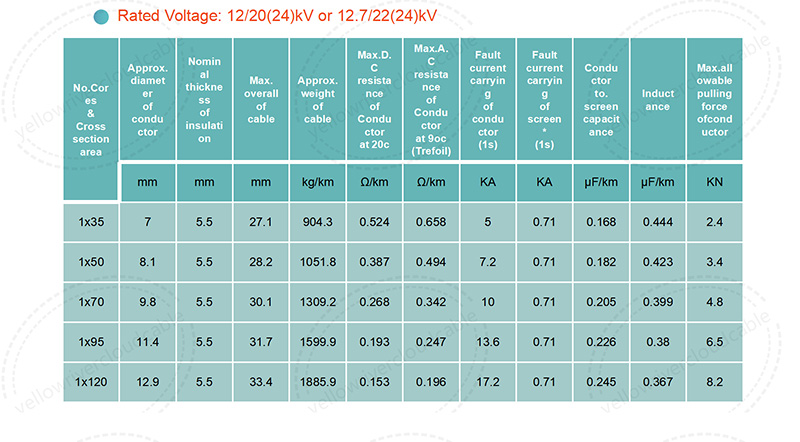

Rated Voltage:12/20(24)kV or 12.7/22(24)kV
