Aerial Single-core Insulated Cables with Rated Voltage 1kV or Lower
AAC/XLPE,AAAC/XLPE
- INQUIRY NOW
- PRICE CALC
- CATALOGUE
- COMPANY LOCATION

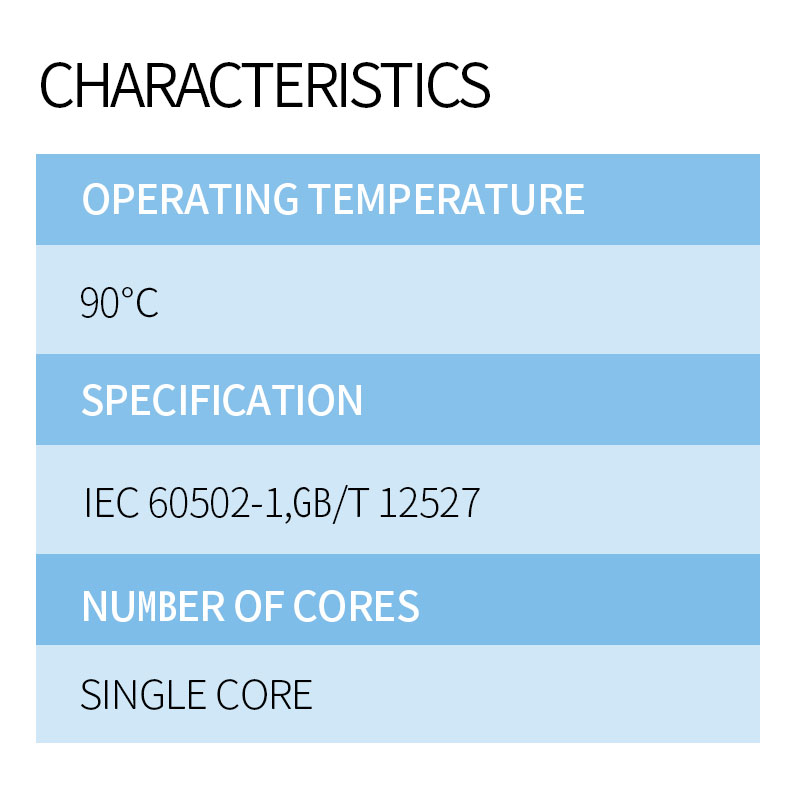

Characteristics
-
Operating Temperature
90℃
-
Specification
IEC 60502-1,GB/T 12527
-
Number of Cores
Single core
Description
TECHNICAL DATA:
Type: AAC/XLPE，AAAC/XLPE
Specification: IEC 60502-1,GB/T 12527
Number of Cores: Single core
Operating Temperature: 90℃
Short-circuit Temperature: 250℃
CABLE STRUCTURE:
Conductors:Conductors are circular compact stranded hard drawn aluminium or aluminium-alloy conductor.
Insulation: XLPE according to GB/T 12527
APPLICATION:
This product is primarily used for overhead service applications such as
street lighting, outdoor lighting, and temporary service for construction.
It is used at voltages of 600 volts phase - to - phase or less.
Aerial Insulated Cables for rated voltage of 1kV
Single-core Aluminum Conductors
