Triplex Service Drop Cables with Rated Voltage 600 V or Lower
AAC/XLPE+AAC,AAC/XLPE+AAAC,AAC/XLPE+ACSR,AAC/XLPE+ACSR/AW

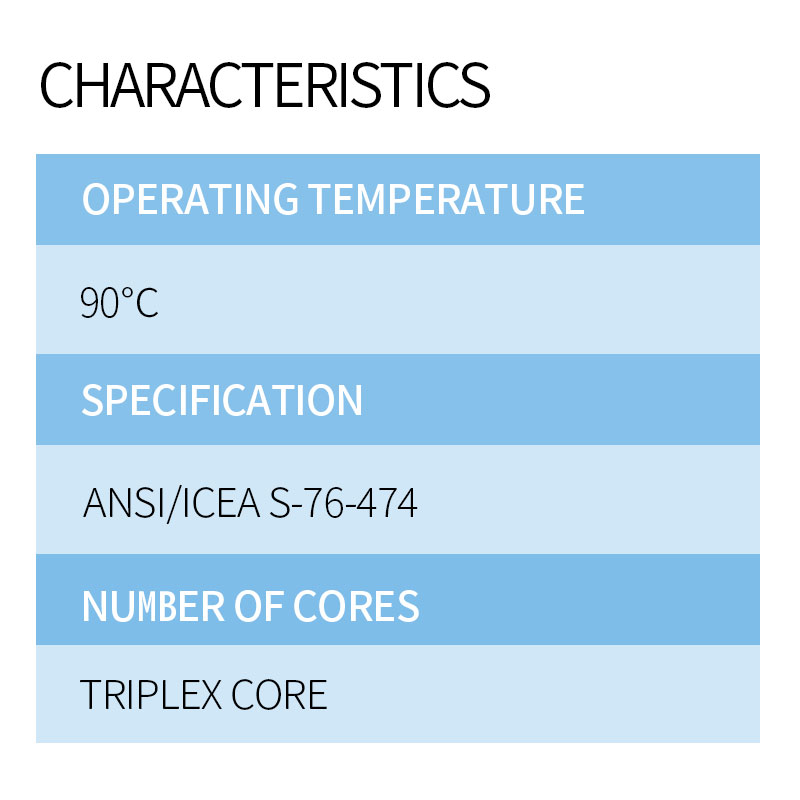

Characteristics
-
Operating Temperature
90℃
-
Specification
ANSI/ICEA S-76-474
-
Number of Cores
Triplex core
Description
TECHNICAL DATA:
Type: AAC/XLPE+AAC,AAC/XLPE+AAAC,AAC/XLPE+ACSR,AAC/XLPE+ACSR/AW
Specification: ANSI/ICEA S-76-474
Number of Cores: Triplex core
Operating Temperature: 90℃
Short-circuit Temperature: 250℃
CABLE STRUCTURE:
Phase Conductors: Aluminum 1350-H19 conductors,may be solid ,stranded circular compact or compressed or uncompressed conductor.
Neutral conductors:Conductors are stranded circular uncompressed aluminum 1350-H19 or aluminum-alloy 6201 conductor or ACSR or ACSR/AW etc.
Insulation: Cross-linked polyethylene (XLPE) is Black color,Weather and UV resistant.

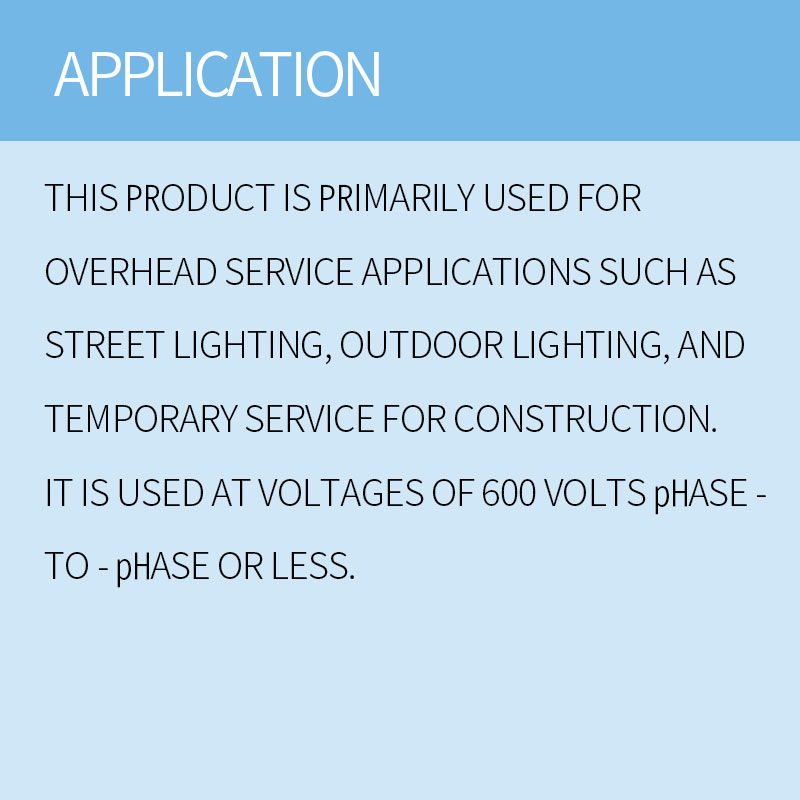

APPLICATION:
This product is Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction.
It is used at voltages of 600 volts phase - to - phase or less.

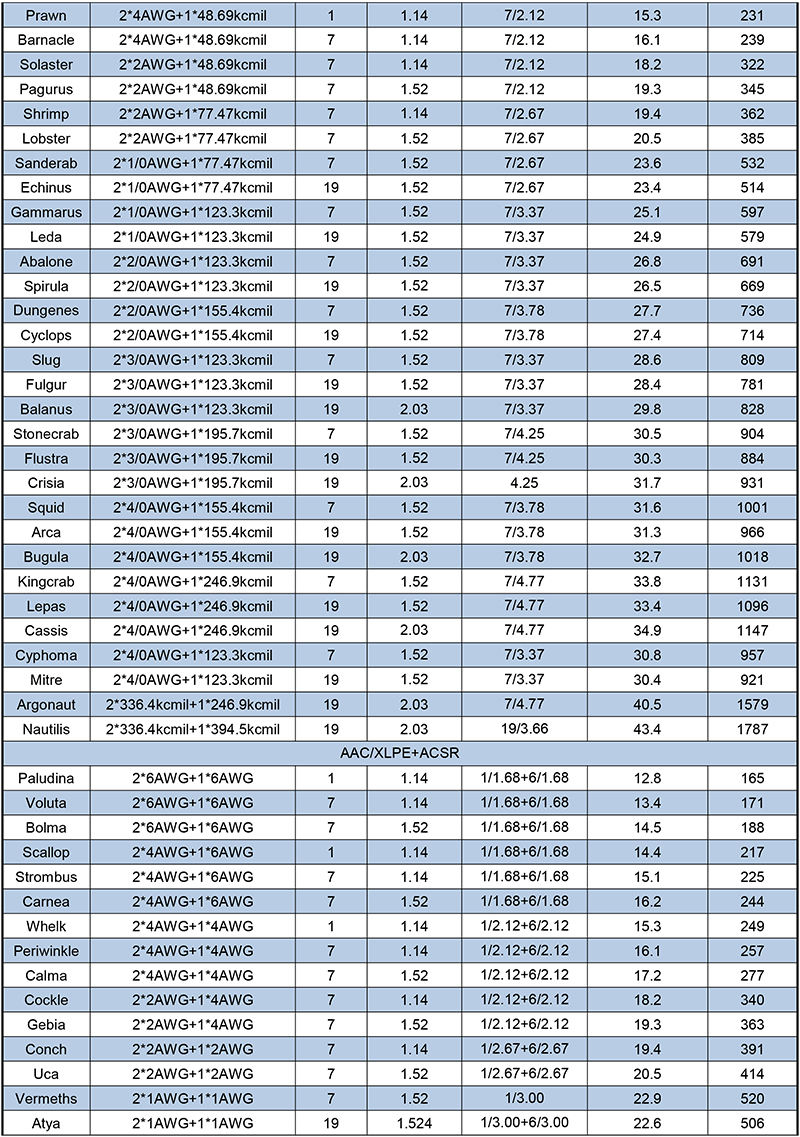

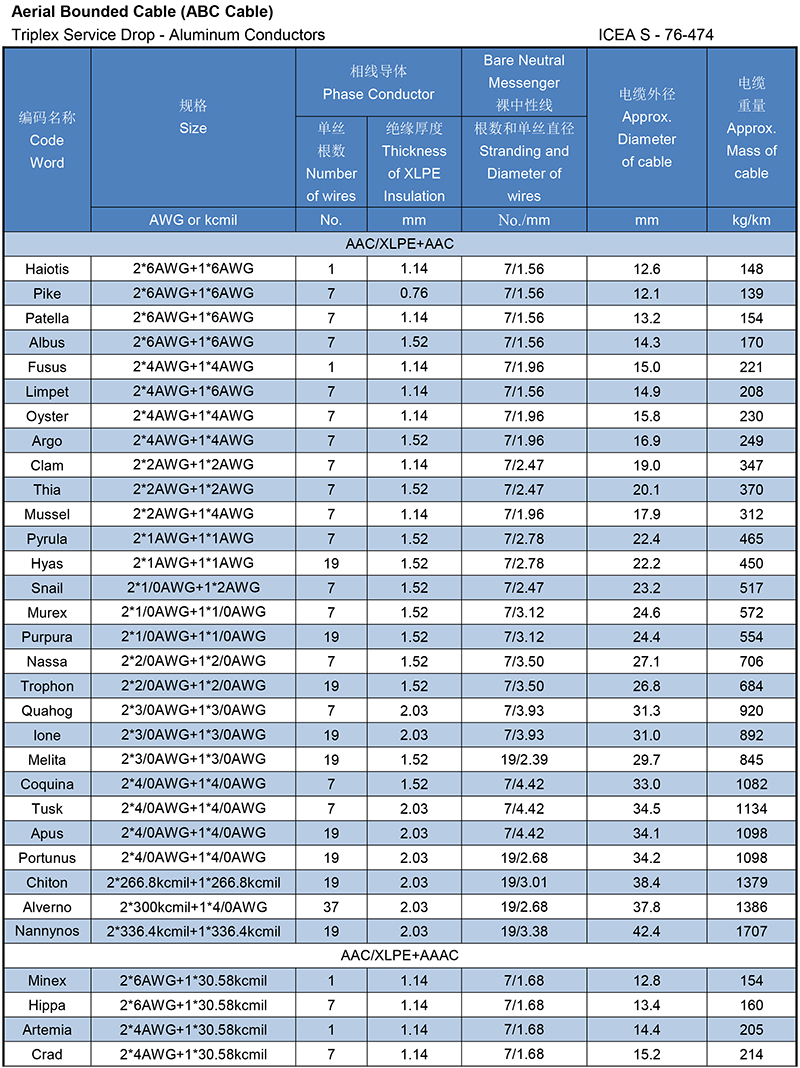

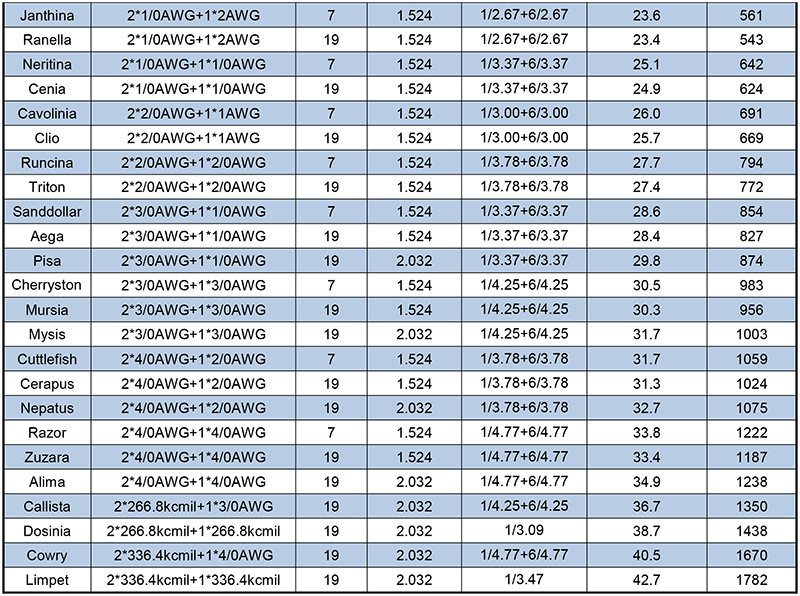

Aerial Bounded Cable (ABC Cable)
Triplex Service Drop - Aluminum Conductors
