PVC insulated and sheathed,Steel tape armored control cable

GB/T 9330、IEC 60502

  • INQUIRY NOW
  • PRICE CALC
  • CATALOGUE
  • COMPANY LOCATION

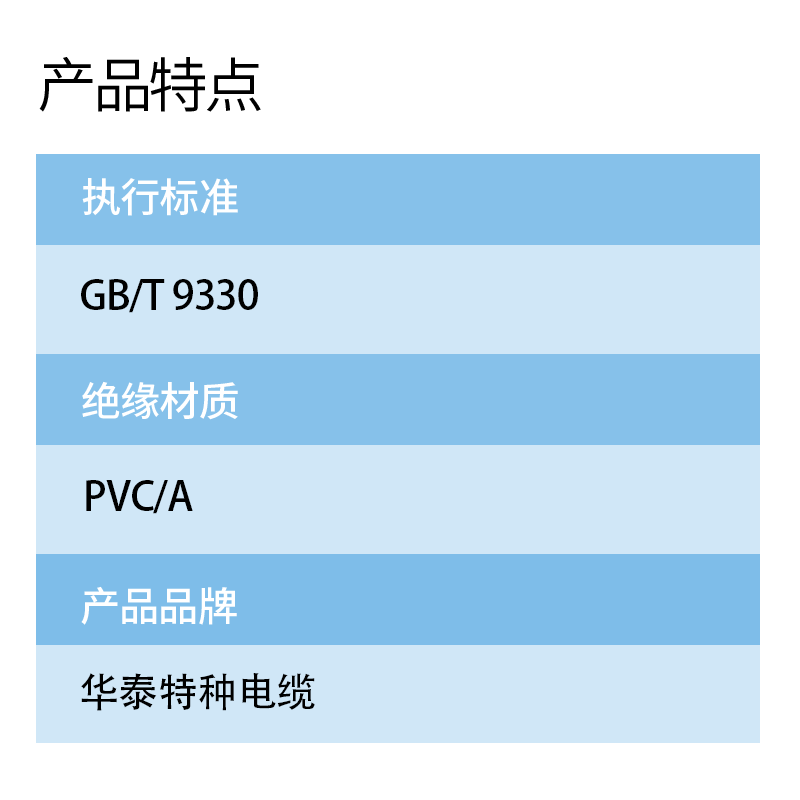

Characteristics

  • Operating Temperature

    70℃

  • Type

    Cu/PVC/STA/PVC

  • Rated voltage

    450/750V、0.6/1kV

Description

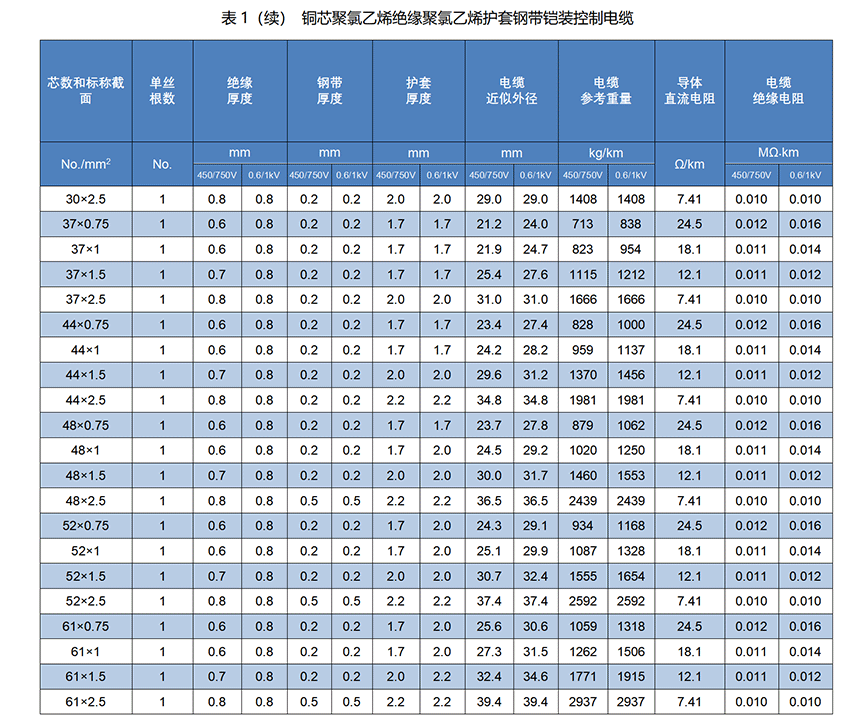

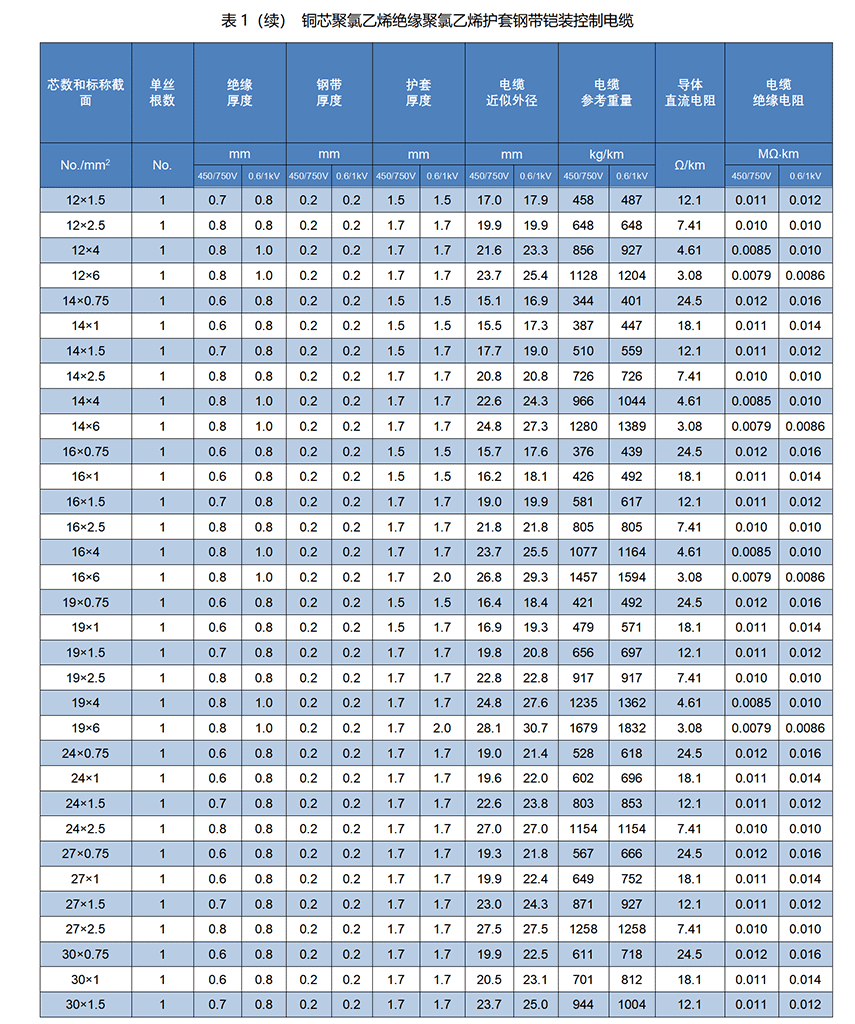

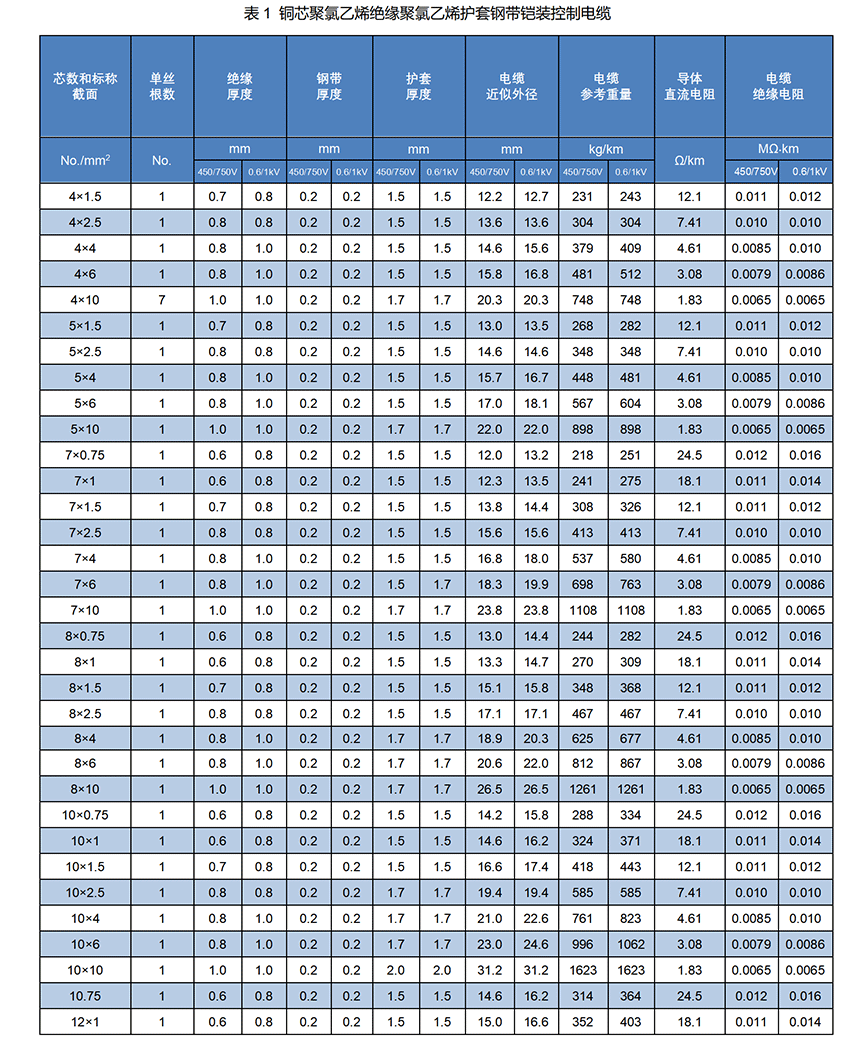

TECHNICAL DATA

Type: Cu/PVC/STA/PVC

Specification: GB/T 9330、IEC 60502

Rated voltage: 450/750V、0.6/1kV

Number of Cores:

four-core,five-core,seven-core, eight-core,ten-core,twelve-core,fourteen-core,sixteen-core,nineteen-core,twenty-four-core,twenty-seven

-core, thirty-core, thirty-seven-core, forty-four-core, forty-eight-core, fifty-two-core, sixty-one-core.

Operating Temperature: 70℃

Short-circuit Temperature: 160℃

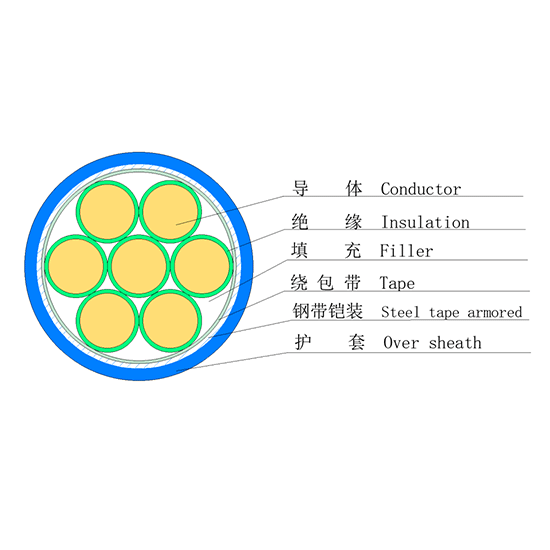

CABLE STRUCTURE

Conductors: Either of Class 1 or Class 2 of copper conductor with IEC 60228.

Insulation:PVC/A in accordance with GB/T 9330或IEC 60502.

Inner bell: Extruded-type PVC or wrapped PVC tape.

Armour: The armour of cables are consist of galvanized steel tape.

Outer sheath: PVC/ST1 according to GB/T 9330或IEC 60502.


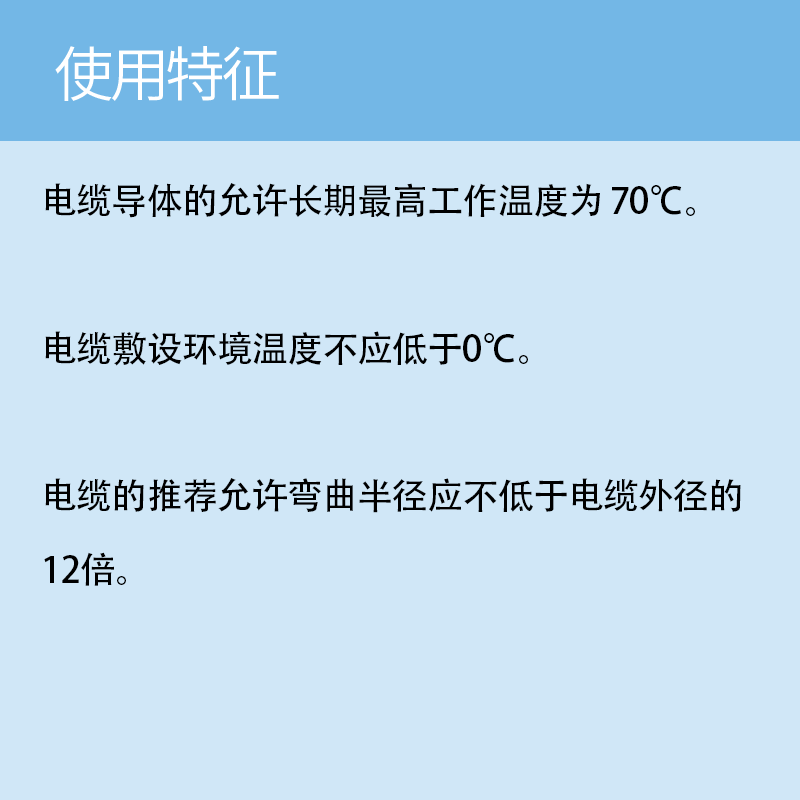

OPERATIONAL PERFORMANCE

The maximum allowable long-term working temperature of the cable is 70℃.

The ambient temperature of cable laying should not be lower than 0℃.

The recommended allowable bending radius of the cable shall not be less than 12 times of the outer diameter of the cable.



APPLICATION

This product is suitable for transmission lines for control, signal, protection and measurement systems with rated voltage of 450/750V and below or 0.6/1kV and below. Widely laid indoors, in cable trenches, in pipelines and underground, it can withstand large mechanical external forces.
