BS EN 50182 Aluminum Conductor Steel Reinforced
ACSR
- INQUIRY NOW
- PRICE CALC
- CATALOGUE
- COMPANY LOCATION

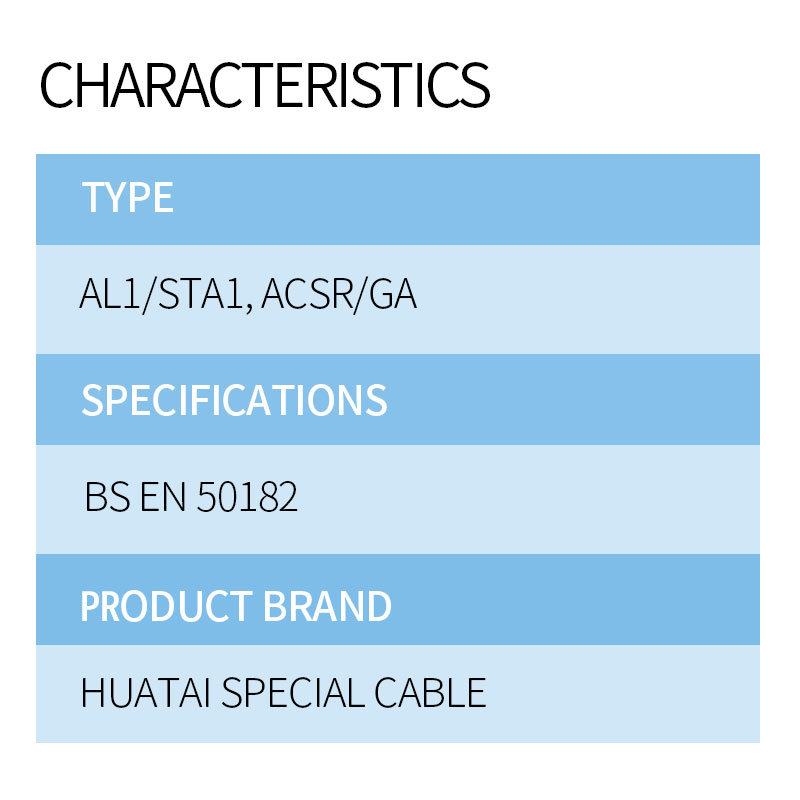

Characteristics
-
Type
AL1/STA1, ACSR/GA
-
Specifications
BS EN 50182
-
Product brand
huatai special cable
Description
TECHNICAL DATA:
Type: AL1/STA1 , ACSR/GA
Specification: BS EN 50182
CABLE STRUCTURE:
Aluminum wires are concentrically stranded about a steel core. Wires: hard drawn aluminium as per EN 60889
designated AL1. Steel core: It consists of a steel wire，or seven more Class A galvanized steel wires twisted together in concentric layers.

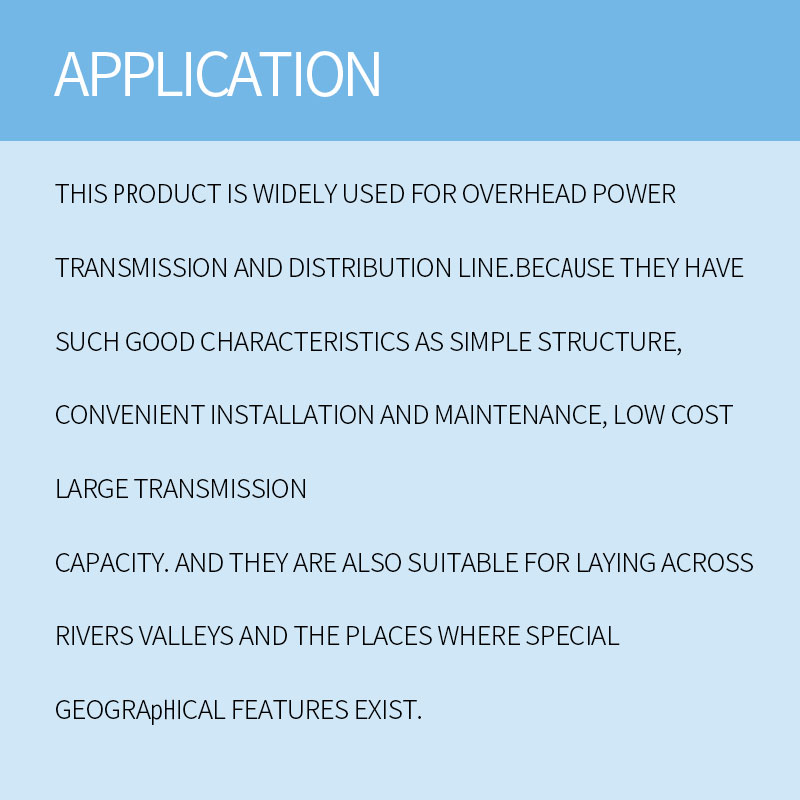

APPLICATION:
This product is widely used for overhead power transmission and distribution line.Because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission
capacity. And they are also suitable for laying across rivers valleys and the places where special geographical
features exist.

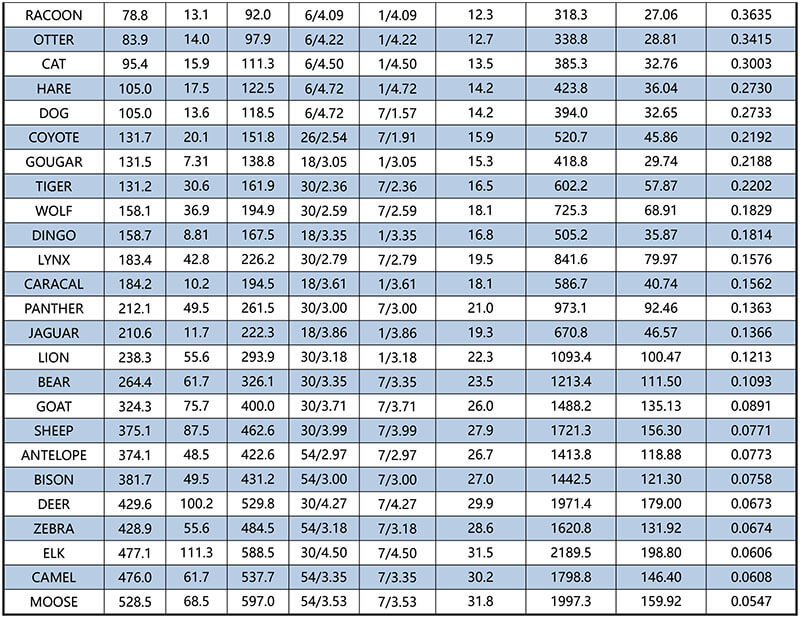

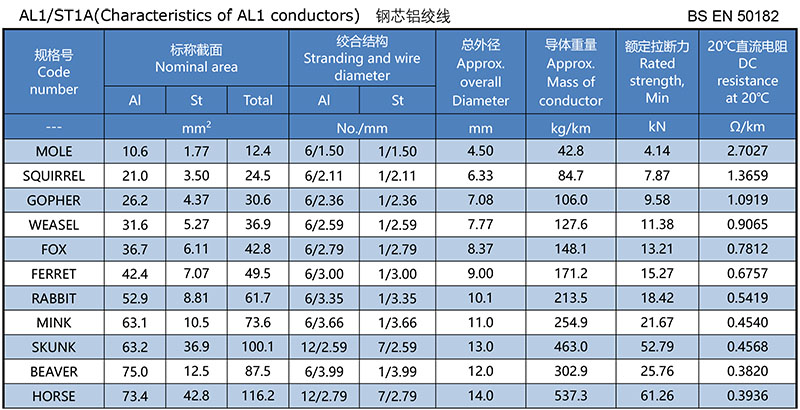

AL1/ST1A(Characteristics of AL1 conductors)
