Single-core aerial insulated cables for rated voltage of 10kV
AAC/XLPE,AAC/HDPE,AAAC/XLPE ,AAAC/HDPE

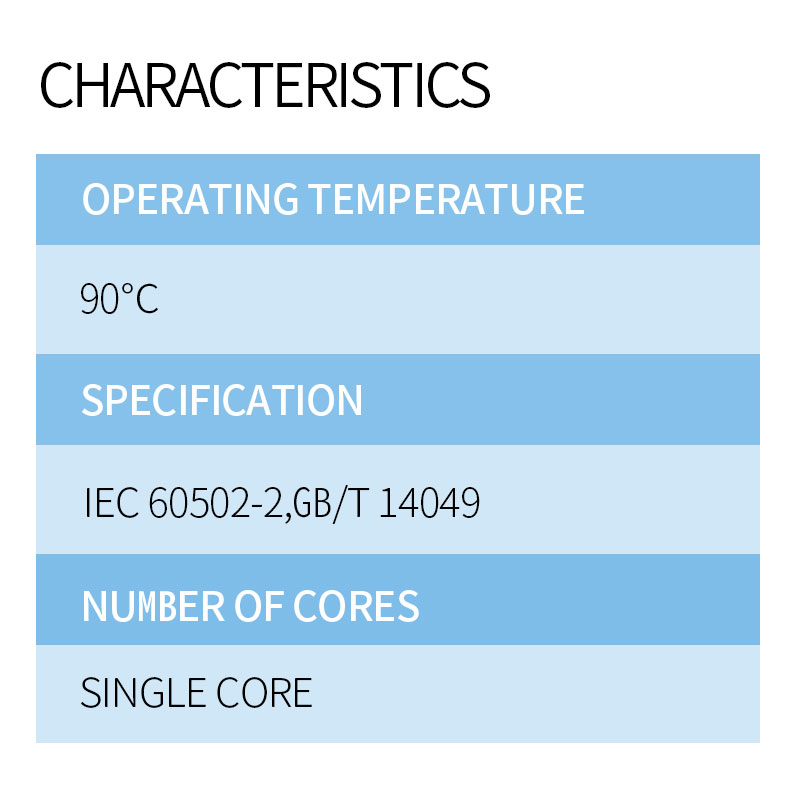

Characteristics
-
Operating Temperature
90℃
-
Specification
IEC 60502-2,GB/T 14049
-
Number of Cores
Single core
Description
TECHNICAL DATA:
Type: AAC/XLPE,AAC/HDPE,AAAC/XLPE,AAAC/HDPE,
Specification: IEC 60502-2,GB/T 14049
Number of Cores: Single core
Operating Temperature: 90℃
Short-circuit Temperature: 250℃
CABLE STRUCTURE:
Conductors:Conductors are circular compact stranded hard drawn aluminium or aluminium-alloy conductor.
Insulation: Insulated with either HDPE or XLPE,Black color,Weather resistant.

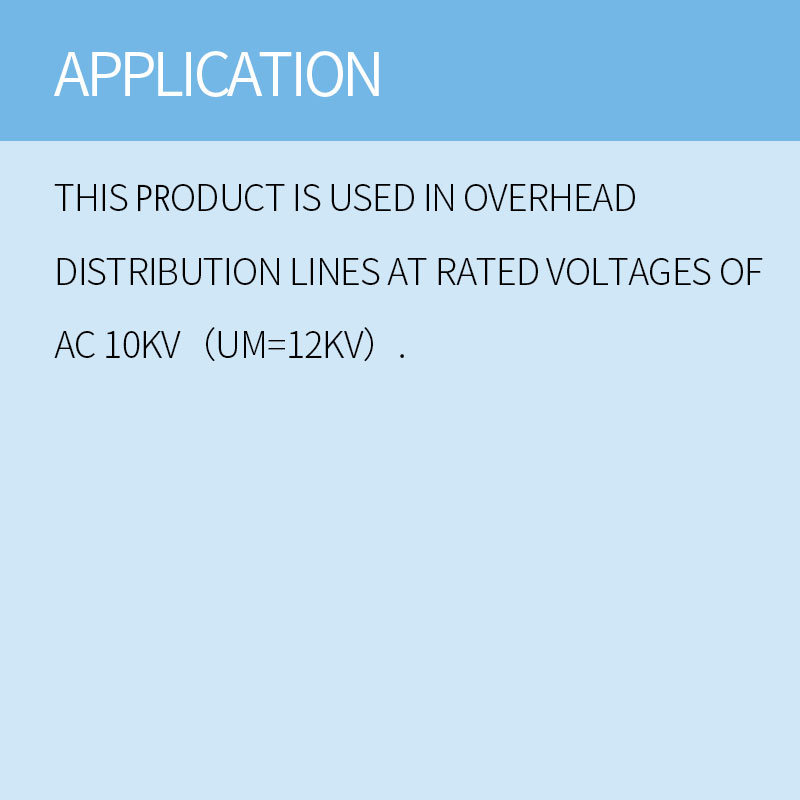

APPLICATION:
This product is used in overhead distribution lines at rated voltages of AC 10kV(Um=12kV).

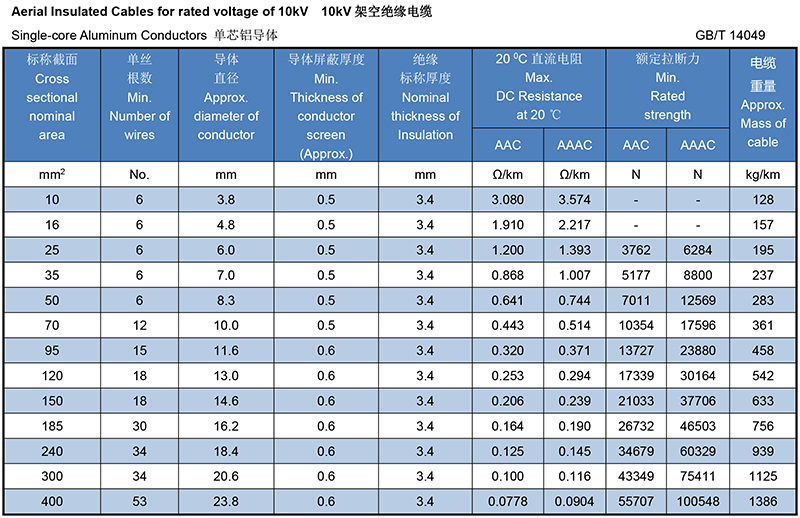

Aerial Insulated Cables for rated voltage of 10kV
Single-core Aluminum Conductors
