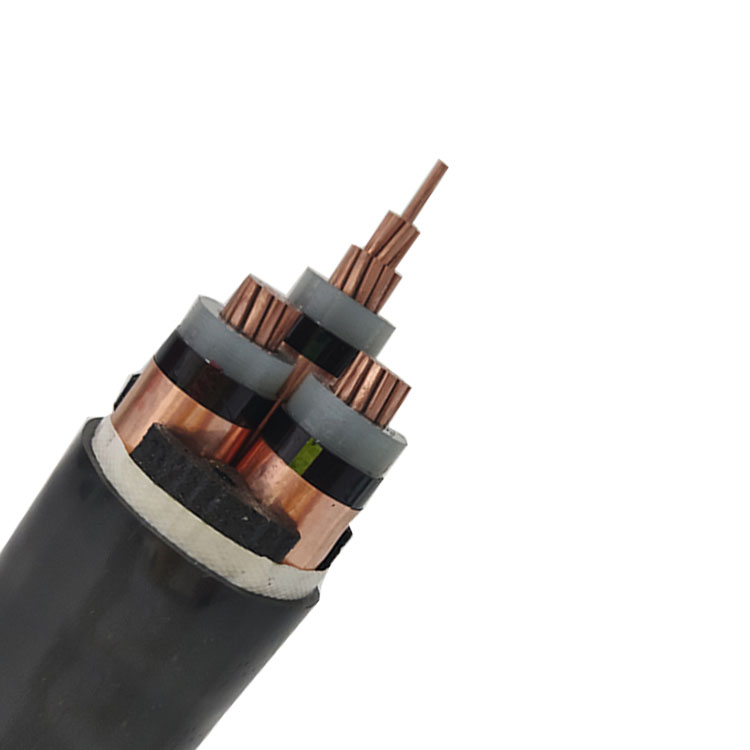

Three core XLPE insuated cables with ocpper conductor-12/20(24)kV or 12.7/22(24)kV

IEC60502-2

  • INQUIRY NOW
  • PRICE CALC
  • CATALOGUE
  • COMPANY LOCATION

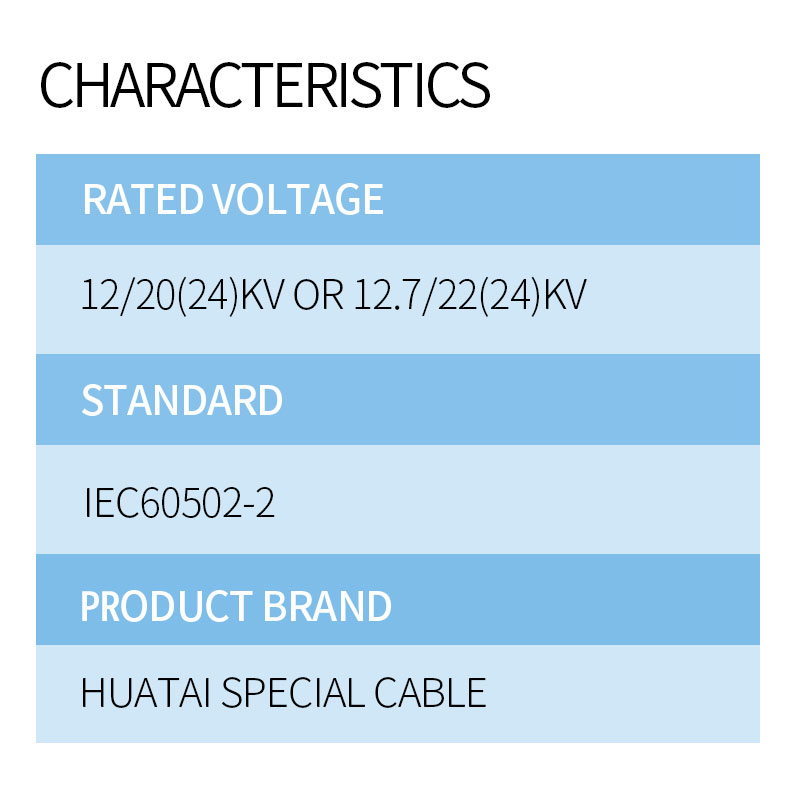

Characteristics

  • Rated voltage

    12/20(24)kV or 12.7/22(24)kV

  • Standard

    IEC60502-2

  • Product brand

    huatai special cable

Description

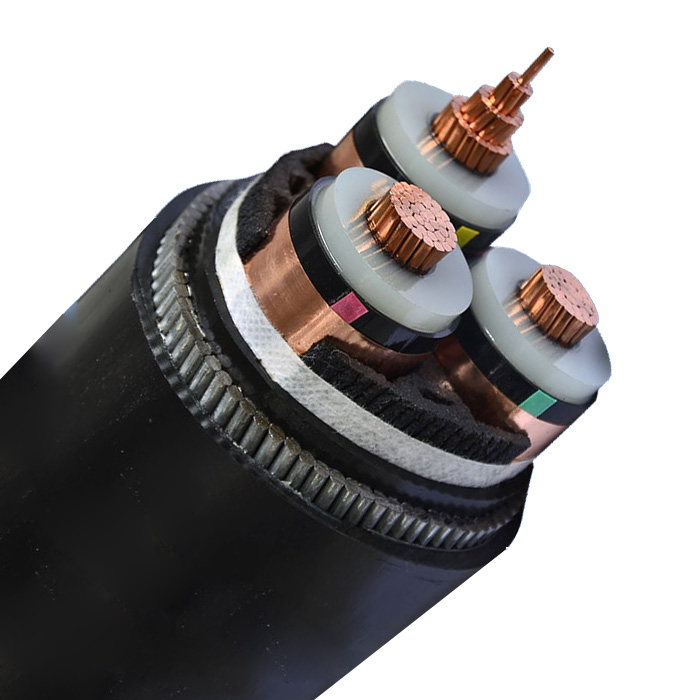

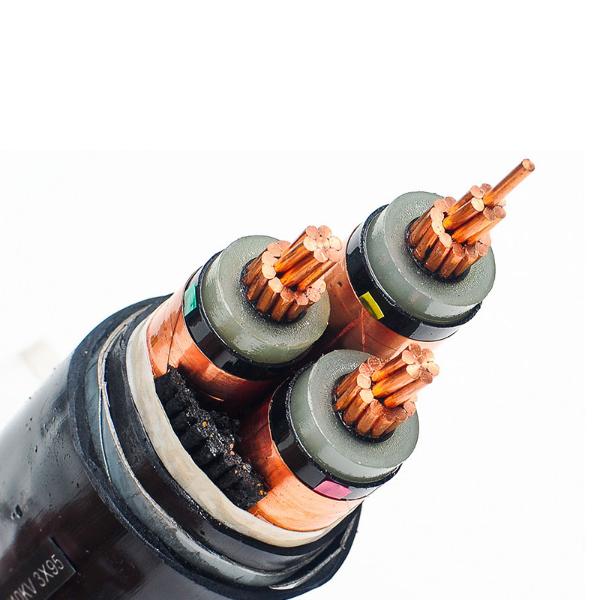

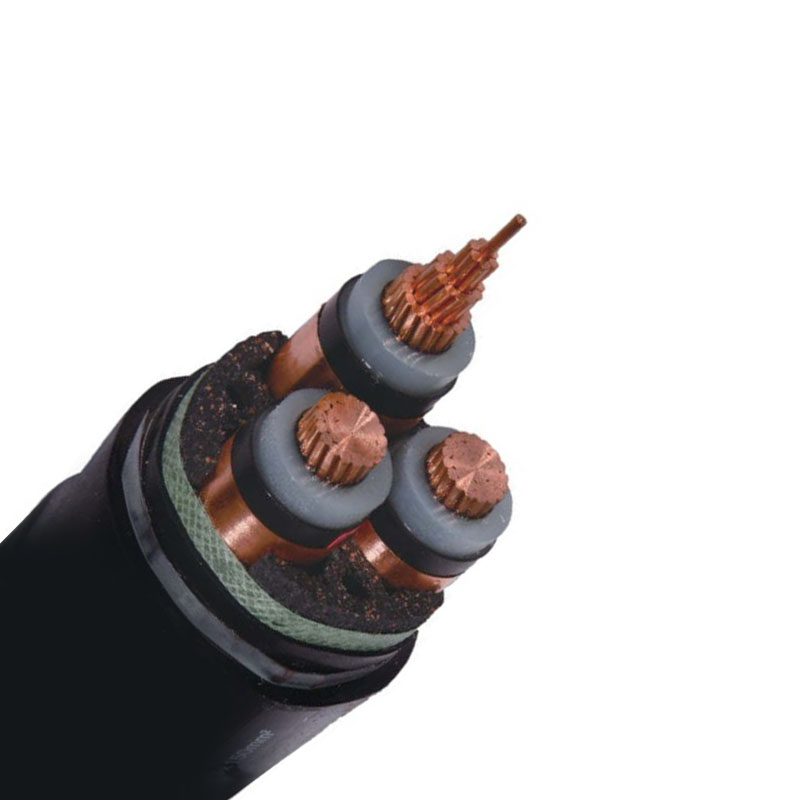

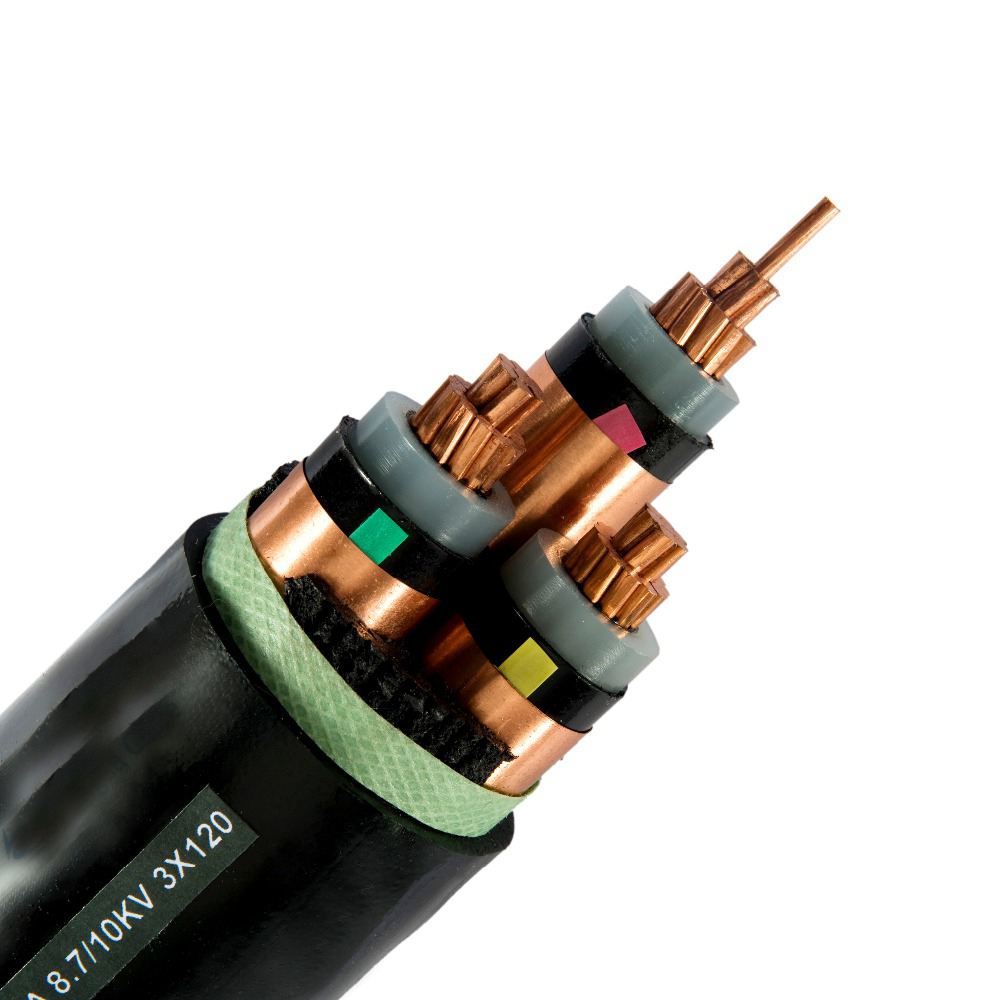

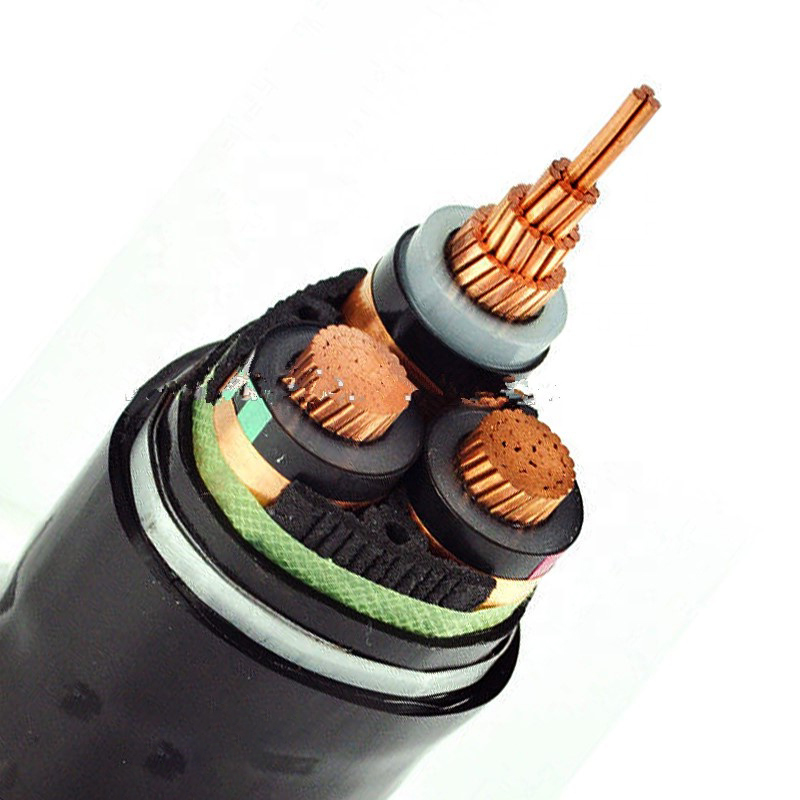

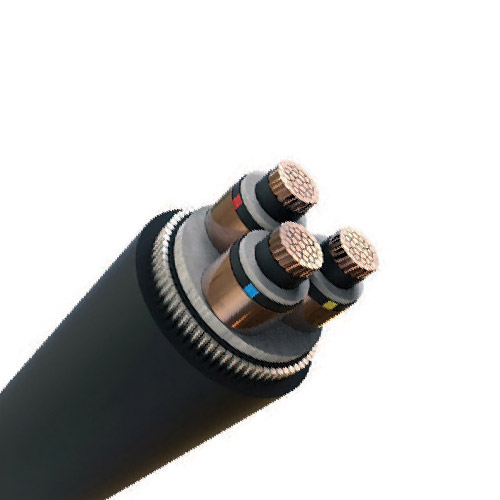

Three core XLPE insuated cables with ocpper conductor-12/20(24)kV or 12.7/22(24)kV,product display diagram.jpg


Three core XLPE insulated cables with copper conductor

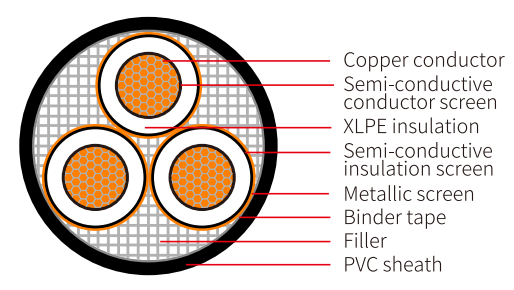

structure

Three core XLPE insuated cables with ocpper conductor-12/20(24)kV or 12.7/22(24)kV,structure.png


Standard:IEC60502-2

Rated voltage:12/20(24)kV or 12.7/22(24)kV

Test voltage:42kV/5 mins

Max.Short-circuit temperature:250℃

Operating conductor temperature:90℃

Min.temperature forlayingand manipulation

 with cables:-5℃

Temperature range for operating: from -35to+90°C

Colour of sheath: Black

Min. bending radius:15OD


Application

1. The cable design based on AS/NZS,SANS,NBR,ICEA,BS,EN,AEIC etc.is also available. Tree retardant, Flame retar-dant, Low smoke & Halogen free, Cold resistant, UV resis-tant, Oil resistant, Anti-rodent, Anti-termite, water proof are available. Manner of metallic screen can be designed ascopper tape, or copper wires, or a combination of wires and tapes.


2. Cables are designed for fixed installationinto distributionnetwork or possibly damp environments. lf it is necessary tolay the cable in the ground, it has to be provided with a pro-tection tube made of plastics, and has to belaid in bed of sand. The cables are resistant to UV radiation and flame propagation according to lEC 60332.

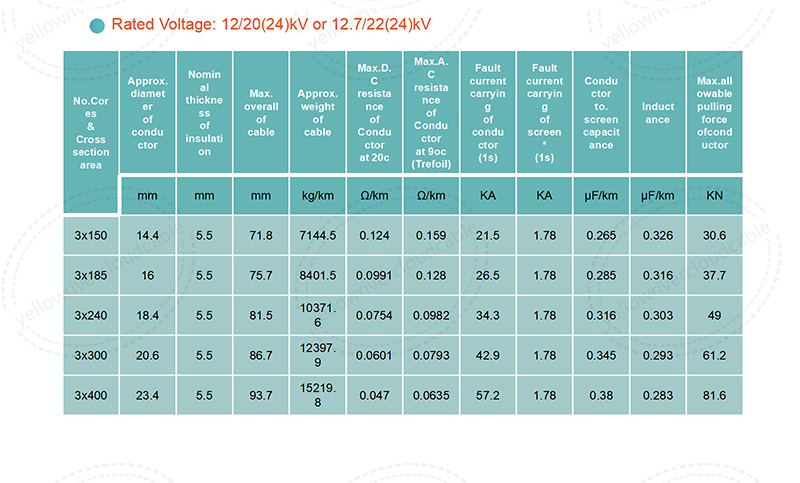

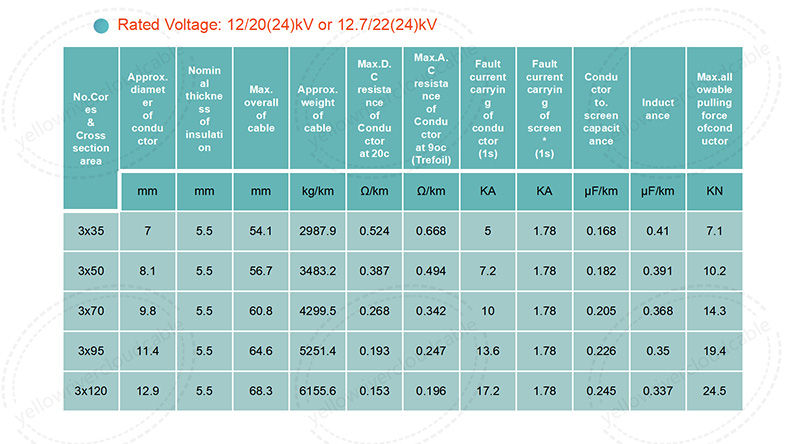

Rated Voltage:12/20(24)kV or 12.7/22(24)kV

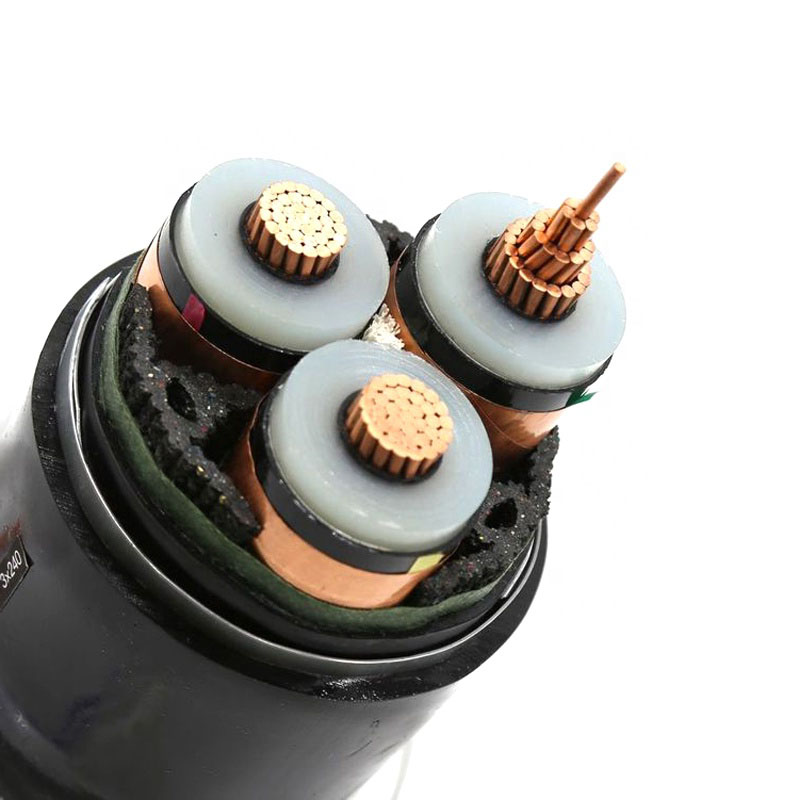

Three core XLPE insuated cables with ocpper conductor-12/20(24)kV or 12.7/22(24)kV,Rated Voltage:12/20(24)kV or 12.7/22(24)kV,picture 1.jpg


Rated Voltage:12/20(24)kV or 12.7/22(24)kV

Three core XLPE insuated cables with ocpper conductor-12/20(24)kV or 12.7/22(24)kV,Rated Voltage:12/20(24)kV or 12.7/22(24)kV,picture 2.jpg
