0.6/1KV Special Cables for Frequency Converter
BPGGP

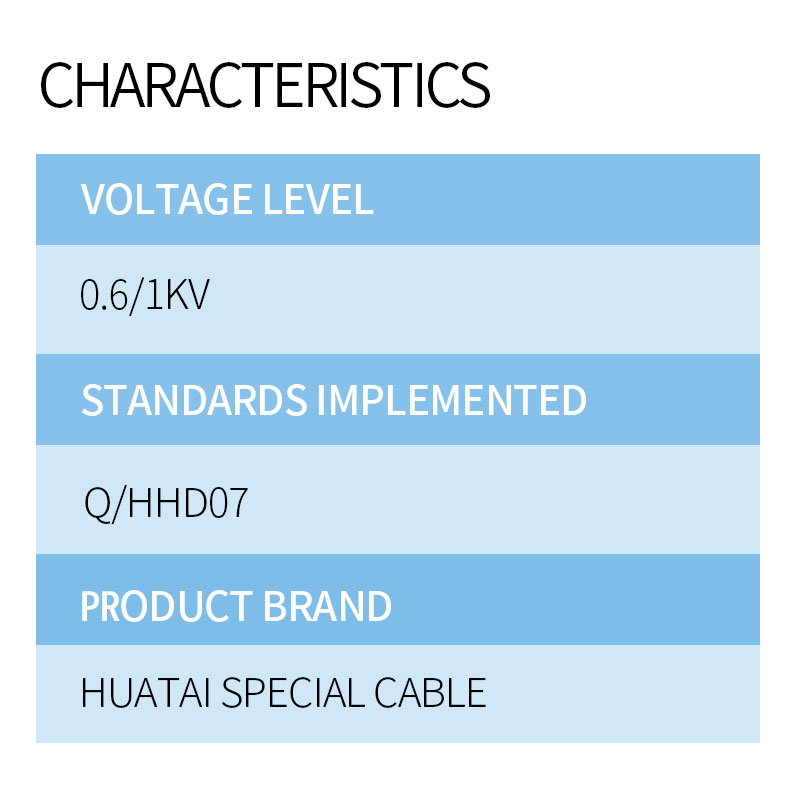

Characteristics
-
Voltage level
0.6/1kV
-
Standards implemented
Q/HHD07
-
Product brand
huatai special cable
Description
Special Cables for Frequency Converter
Standards implemented
It is manufactured according to Q/HHD07 Standard. Flame-proof tests are done according to GB/T19666.
Application

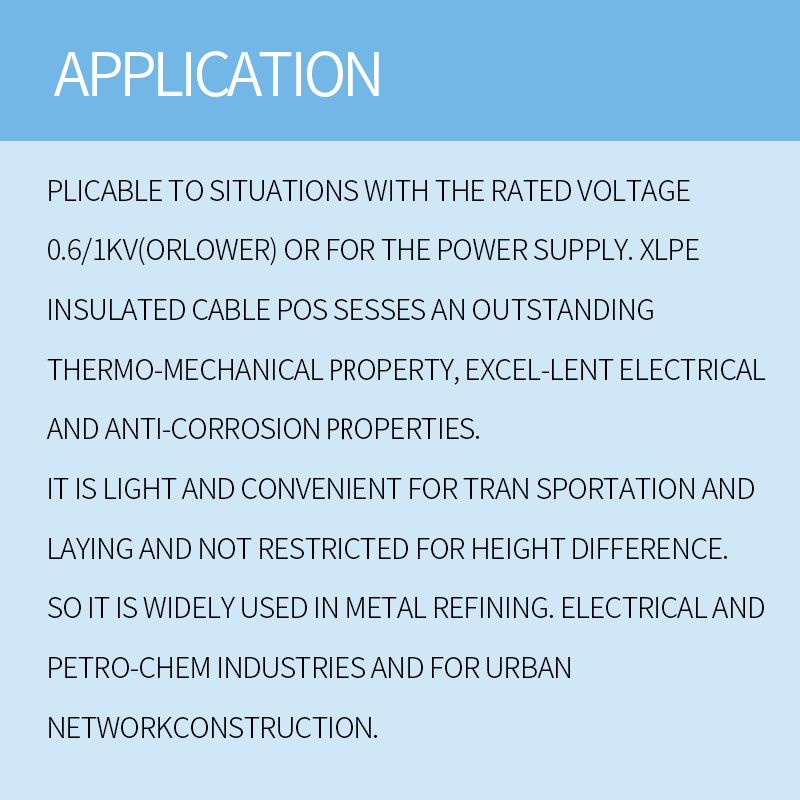

plicable to situations with the rated voltage 0.6/1KV(orlower) or for the power supply. XLPE insulated cable pos sesses an outstanding thermo-mechanical property, excel-lent electrical and anti-corrosion properties.
It is light and convenient for tran sportation and laying and not restricted for height difference.
So it is widely used in metal refining. electrical and petro-chem industries and for urban networkconstruction.
Service Charrcteristics
1. Rated voltage: Uo/U0.6/1KV
Max working temperature: silicon rubber nsulation:180℃
F46 insulation:200℃/192℃
PVC insulation:70℃
XLPE insulation:90℃
Min environment temperature:(while laying)
≥-60℃;
≥-40℃ for PVC sheathed cable
2. Cable laying temperature:≥-25℃;
3. Alowed bending radius:≥15 times the outer diameter of the cable.
Type and Designation
Special Cables for Frequency Converter
Remarks:"ZR"is added to the flameproof type,"ZR192"is added for imported PFA, Shield can be tinned copper eire(woven).
Codes and meanings
Special Cables for Frequency Converter
Structure
Main Technological Indexes
①DC resistance of the cable conforms to GB/T3956.
②Insulation resistance(20℃):≥500M Q/KM for fluo-roplastic and silicon rubber insulation and 230MQ/KM for PVC insulation.
③The cable can undergo 50Hz 3.5/5min without punture.
④Shield layer resistance:s100M Q/M(100MHz)
Desirable restraining coefficient50.7.
