Copper conductor,PVC insulated and sheathed,Copper tape shielding control cable
IEC 60502
Characteristics
-
Short-circuit Temperature
160℃
-
Operating Temperature
70℃
-
Rated voltage
450/750V、0.6/1kV
Description

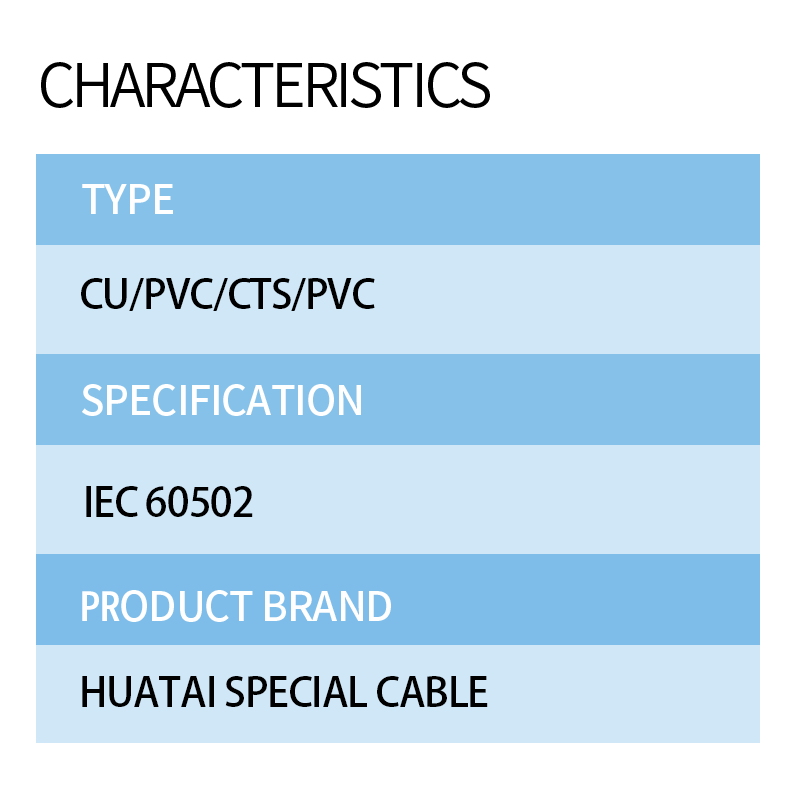

TECHNICAL DATA:
Type: Cu/PVC/CTS/PVC
Specification: GB/T 9330、IEC 60502
Rated voltage: 450/750V、0.6/1kV
Number of Cores:
four-core,five-core,seven-core,eight-core,ten-core,twelve-core,fourteen-core,sixteen-core,nineteen-core,twenty-four-core,twenty-seven-core, thirty-core, thirty-seven-core, forty-four-core, forty-eight-core, fifty-two-core, sixty-one-core.
Operating Temperature: 70℃
Short-circuit Temperature: 160℃

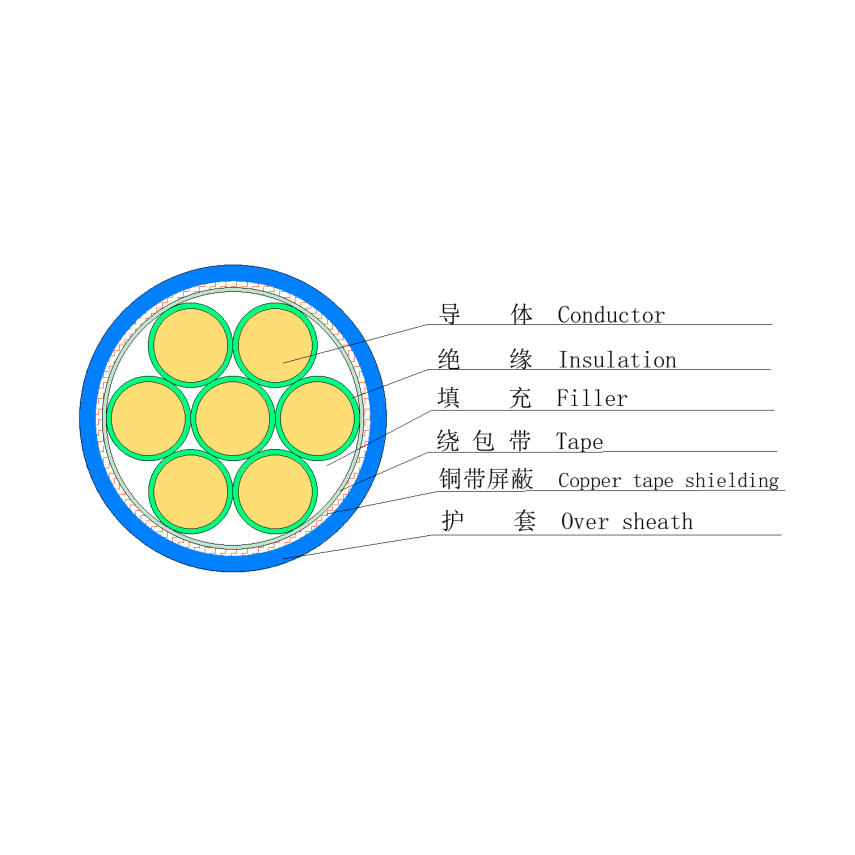

CABLE STRUCTURE
Conductors: Either of Class 1 or Class 2 of copper conductor with IEC 60228.
Insulation:PVC/A in accordance with GB/T 9330或IEC 60502.
Shielding: Copper tape conforming to GB/T 9330 or IEC 60502.
Outer sheath: PVC/ST1 according to GB/T 9330或IEC 60502.

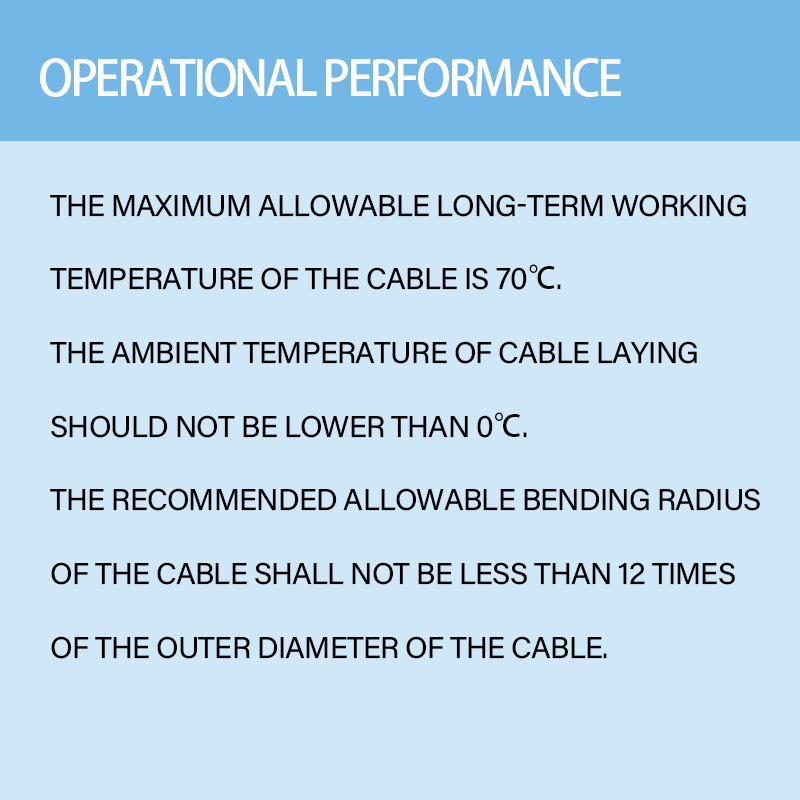

OPERATIONAL PERFORMANCE
The maximum allowable long-term working temperature of the cable is 70℃.
The ambient temperature of cable laying should not be lower than 0℃.
The recommended allowable bending radius of the cable shall not be less than 12 times of the outer diameter of the cable.
APPLICATION
This product is suitable for transmission lines for control, signal, protection and measurement systems with rated voltage of 450/750V and below or 0.6/1kV and below, mainly to prevent the interference of electromagnetic waves. Widely laid in indoor, cable trench, pipeline and other fixed places.
