PVC insulated ,PVC sheathed flexible control cable
GB/T 9330、IEC 60502

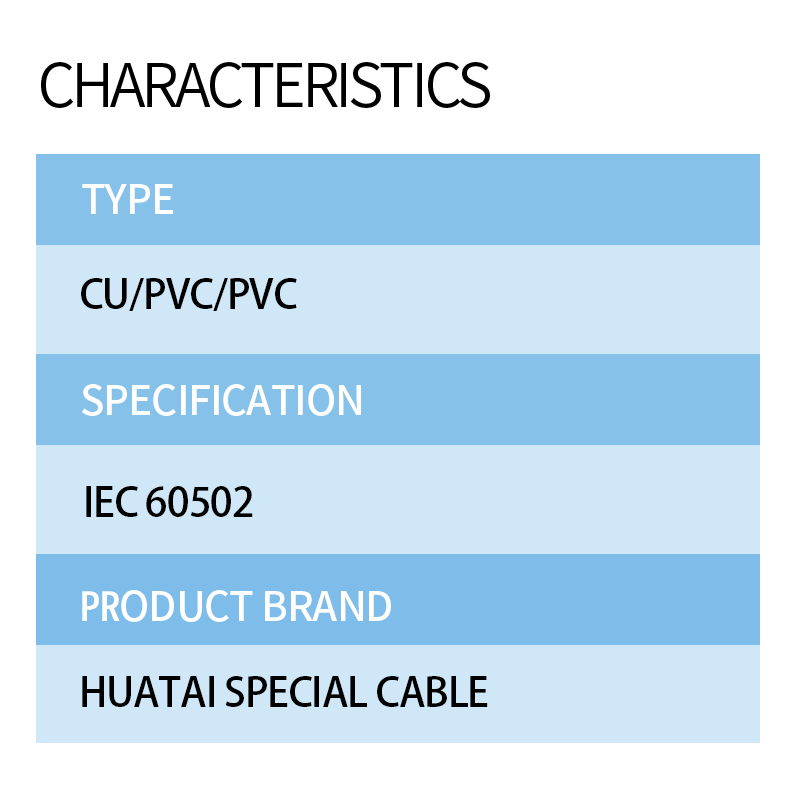

Characteristics
-
Short-circuit Temperature
160℃
-
Operating Temperature
70℃
-
Type
Cu/PVC/PVC
Description
TECHNICAL DATA
Type: Cu/PVC/PVC
Specification: GB/T 9330、IEC 60502
Rated voltage: 450/750V、0.6/1kV
Number of Cores: two-core,three-core,four-core,five-core,seven-core, eight-core,ten-core,twelve-core,fourteen-core,sixteen-core,nineteen-core,twenty-four-core,twenty-seven
-core, thirty-core, thirty-seven-core, forty-four-core, forty-eight-core, fifty-two-core, sixty-one-core.
Operating Temperature: 70℃
Short-circuit Temperature: 160℃

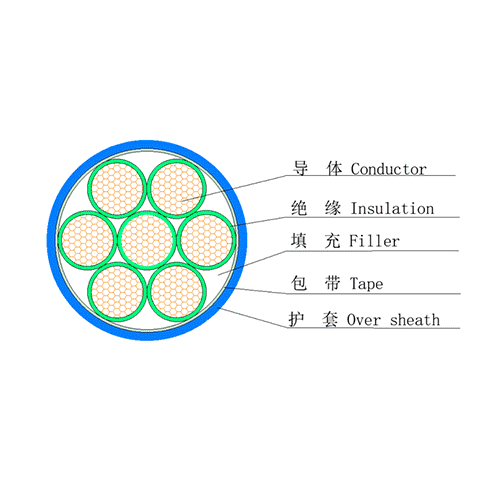

CABLE STRUCTURE
Conductors: Class 5 copper conductors that conform to IEC 60228 without tin plating or tin plating.
Insulation:PVC/A in accordance with GB/T 9330或IEC 60502.
Outer sheath: PVC/ST5 according to GB/T 9330或IEC 60502.
OPERATIONAL PERFORMANCE
The maximum allowable long-term working temperature of the cable is 70℃.
The ambient temperature of cable laying should not be lower than 0℃.
The recommended allowable bending radius of the cable shall not be less than 6 times of the outer diameter of the cable.
APPLICATION
This product is suitable for transmission lines for control, signal, protection and measurement systems with rated voltage of 450/750V and below or 0.6/1kV and below. It is mainly used for laying in places that require softness indoors or unshielded places that require movement indoors.
