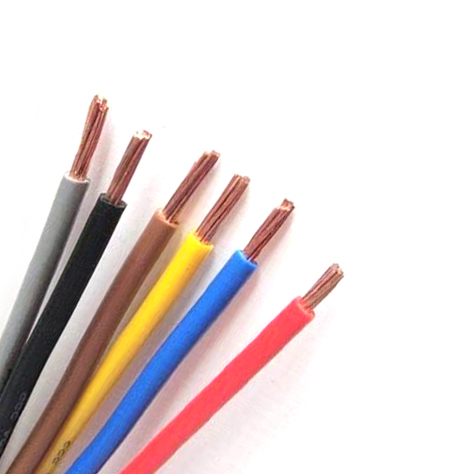

450/750V Single-core PVC insulated ,non-sheathed cable with rigid conductor
60227 IEC 01,60227 IEC 01(BV) , H07V-U,H07V-R
Characteristics
-
Specifications
IEC 60227-3, GB/T 5023.3, DIN VDE 0281-3
-
Rated voltage
450/750V
-
type
60227 IEC 01.60227 IEC 01 (BV), X07V-U, X07V-R
Description

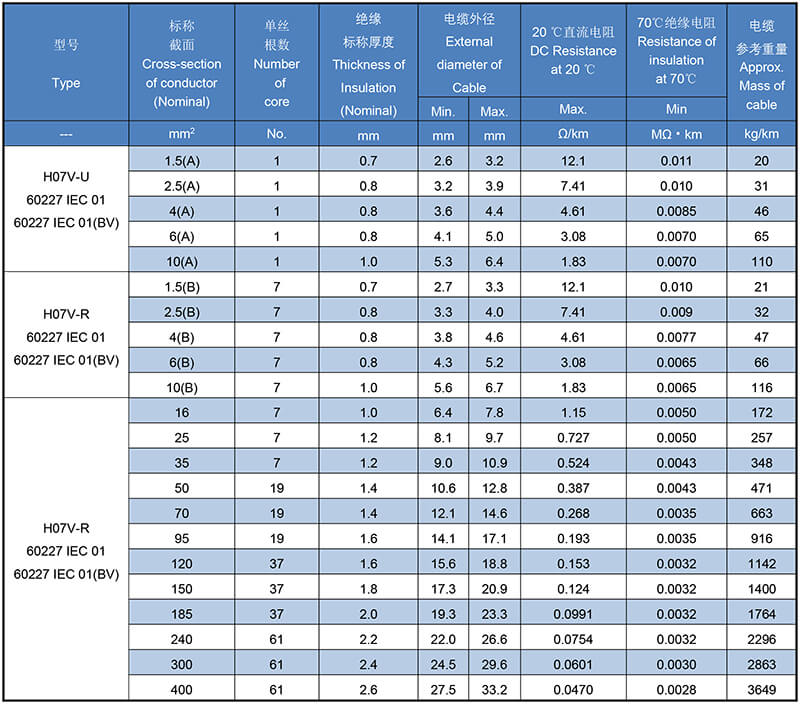

TECHNICAL DATA:
Type:60227 IEC 01,60227 IEC 01(BV), H07V-U,H07V-R
Specification: IEC 60227-3,GB/T 5023.3,DIN VDE 0281-3
Rated voltage:450/750V
Number of Cores: Single core
Operating Temperature:70℃
Short-circuit Temperature:160℃
CABLE STRUCTURE:
Conductors: Class 1 or class 2 conductor in accordance with IEC 60228,GB/T 3956,HD 383.
Insulation: PVC compound according to IEC 60227-1,GB/T 5023.1,DIN VED 0281-1.
APPLICATION:
This product is primarily used for internal wiring of electrical devices and lighting fixtures,i.e. as bridge
junction.Laying in dry areas,in switch-boards and distribution boards.
