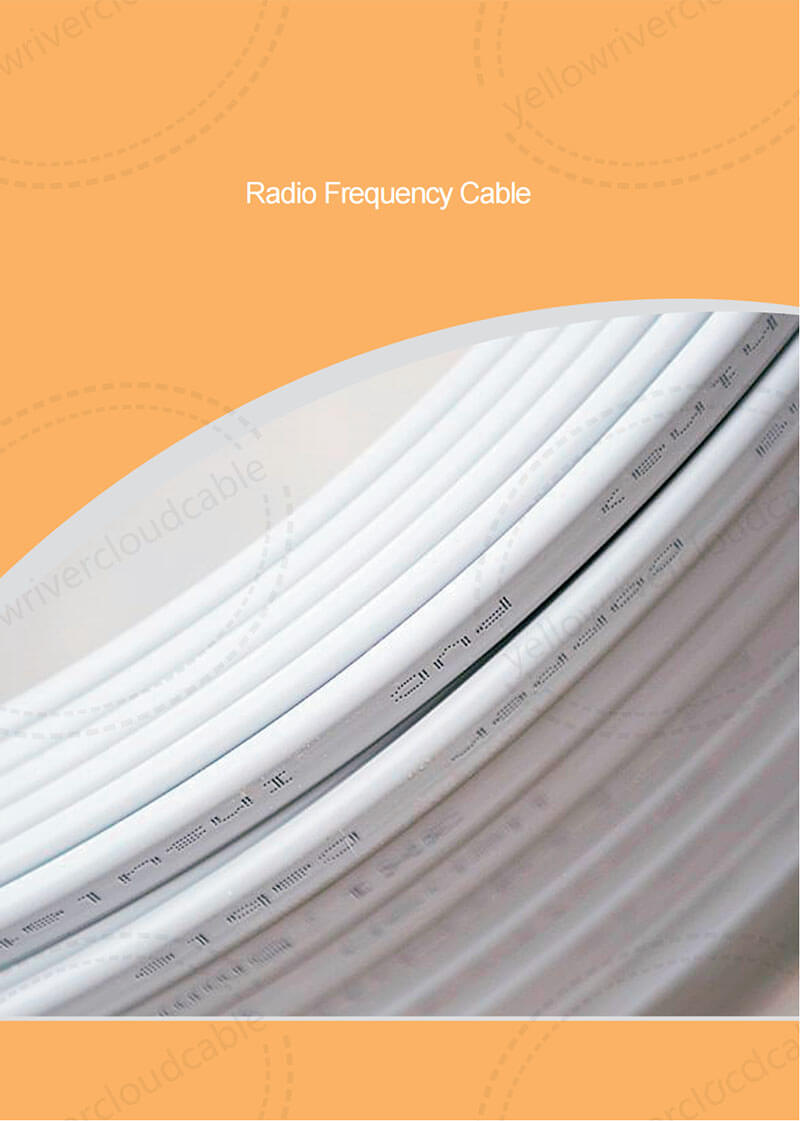

Radio Frequency Cable
SYV
- INQUIRY NOW
- PRICE CALC
- CATALOGUE
- COMPANY LOCATION

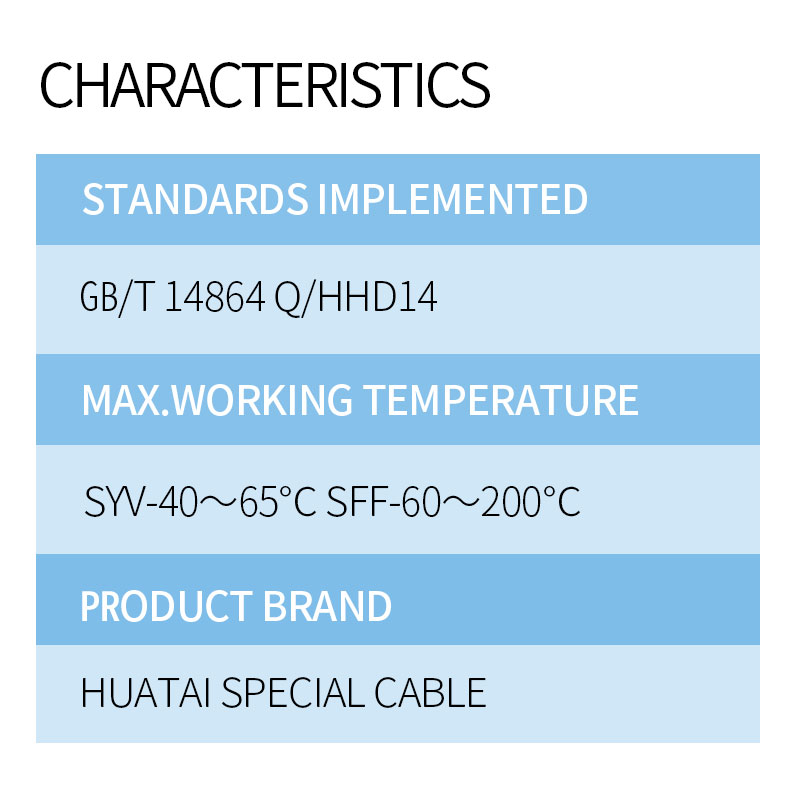

Characteristics
-
Standards implemented
GB/T 14864 Q/HHD14
-
Max.working temperature:
SYV-40～65℃ SFF-60～200℃
-
Product brand
huatai special cable
Description
