0.6/1kV Silica Rubber Insulated Power Cables
YGC

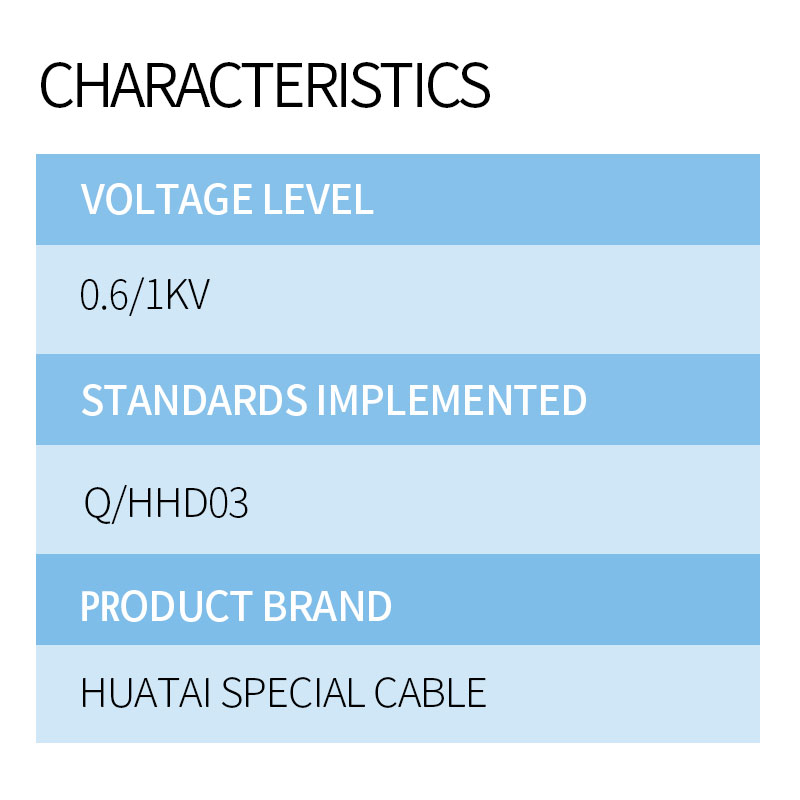

Characteristics
-
Voltage level
0.6/1kV
-
Standards implemented
Q/HHD03
-
Product brand
huatai special cable
Description
Silica Rubber Insulated Power Cables
Standards implemented
It is manufactured according to Q/HHD03 Standard.
Application
It is used for electric connection of mobile electric de-vices in environment with high temperature in power, met-allurgy, chemical industry, etc.

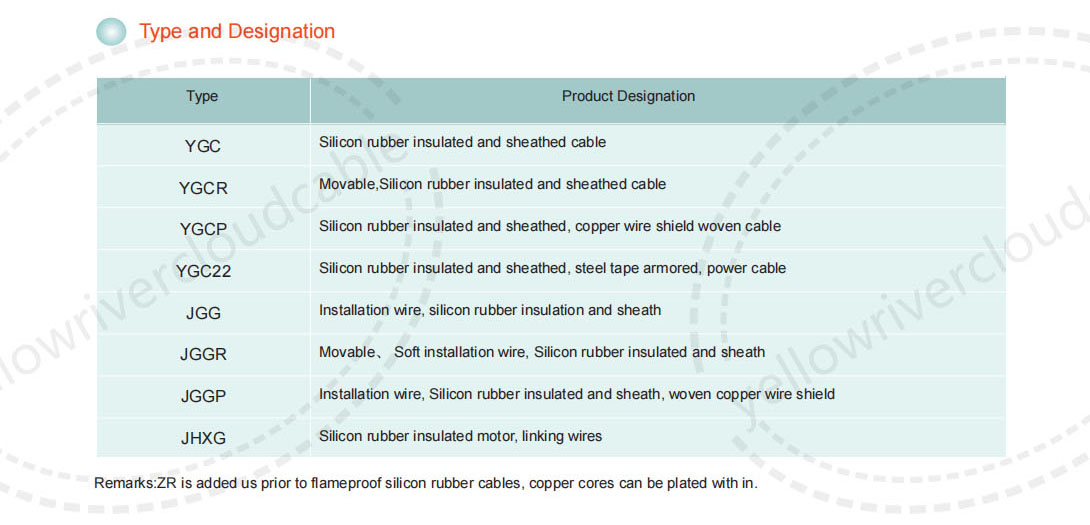

Type and Designationa
Remarks: ZR is added us prior to flameproof silicon rubber cables, copper cores can be plated with in.
Codes and meanings
Silica Rubber Insulated Power Cables

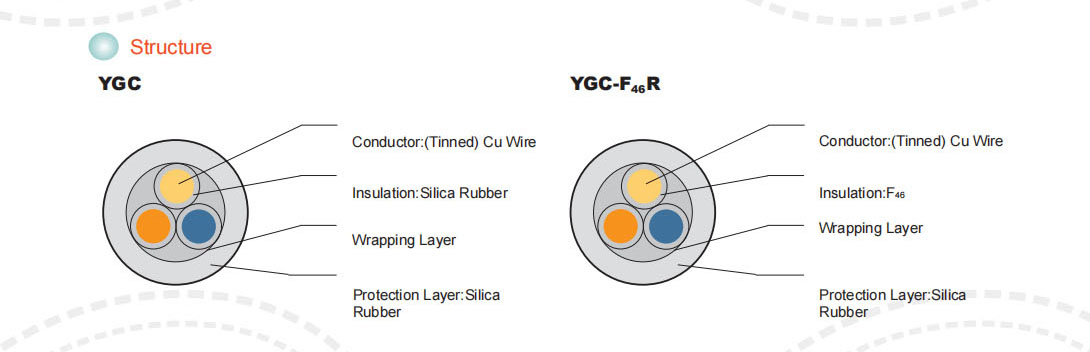

Structure
Using feature & Main Technical Performance
①Rated volage Uo/U:0.6/1kV.
②The Max. long-term operating temperature of cable is-60℃~180℃.
③D.C conductor resistance complies with the stipulations of GB/T3956.
④ The Min. bending radius should be no smaller than 6 times of cable outer diameter.
⑤The cable is resistant to high temperature & low tem-perature, soft and it is resistant to corrosiveness.
⑥Working Frequen Vollage Test for cable with 3.5kV/Smin without puncture.

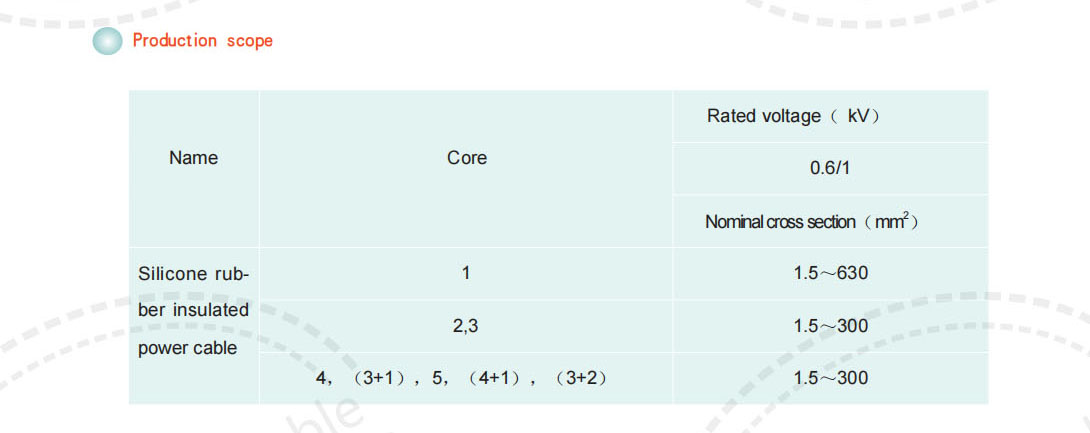

Production scope
