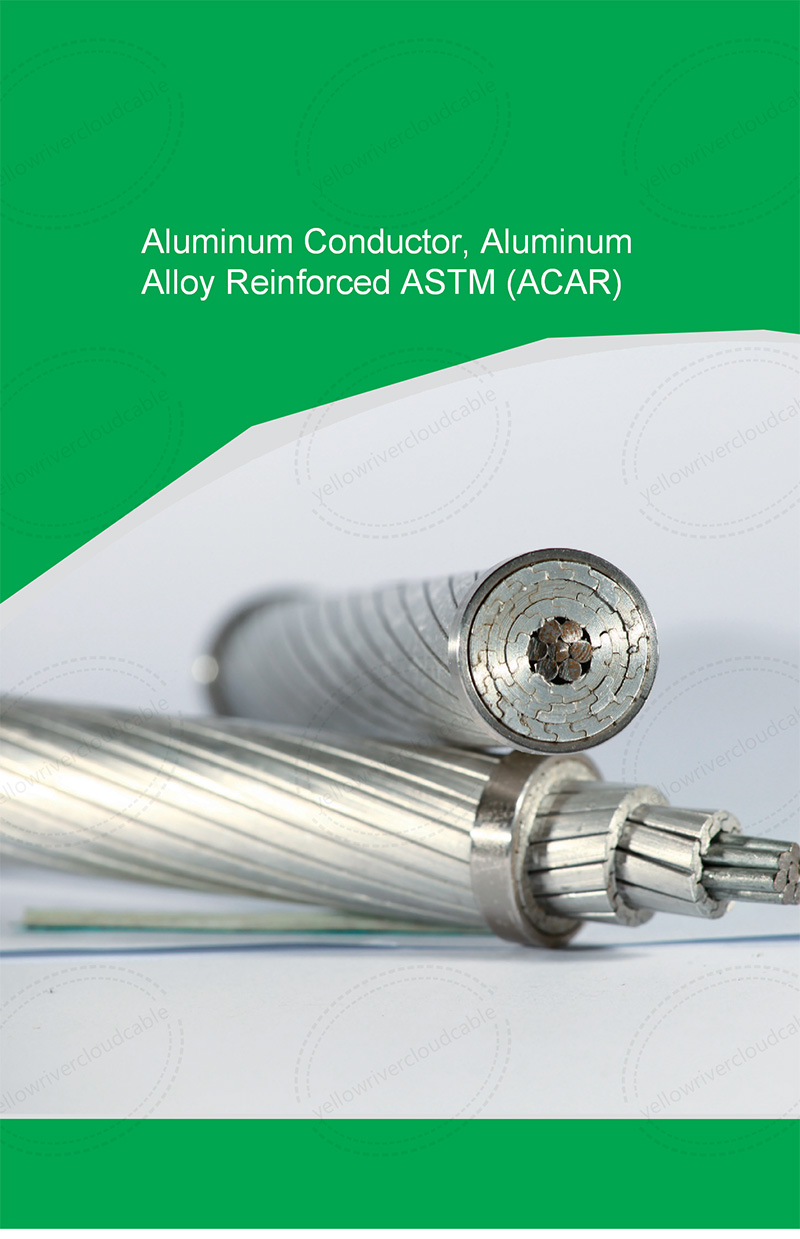

Aluminum Conductor, Aluminum Alloy Reinforced (ACAR)
ASTM_ACAR

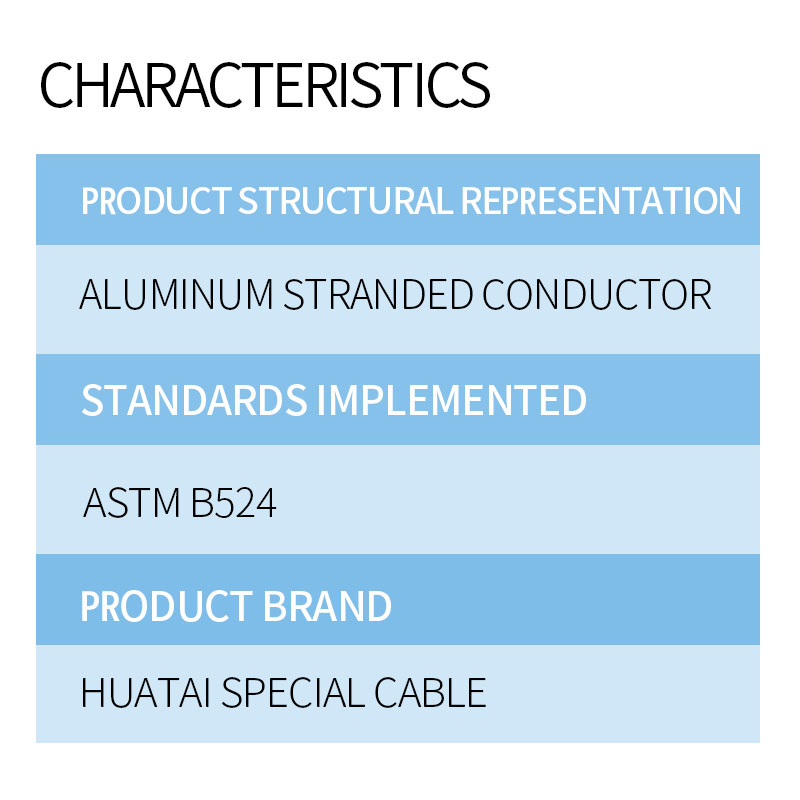

Characteristics
-
product material
Aluminum
-
Standards implemented
ASTM B524
-
Product brand
huatai special cable
Description
Aluminum Conductor, Aluminum Alloy Reinforced (ACAR)
Standards implemented : ASTM B524

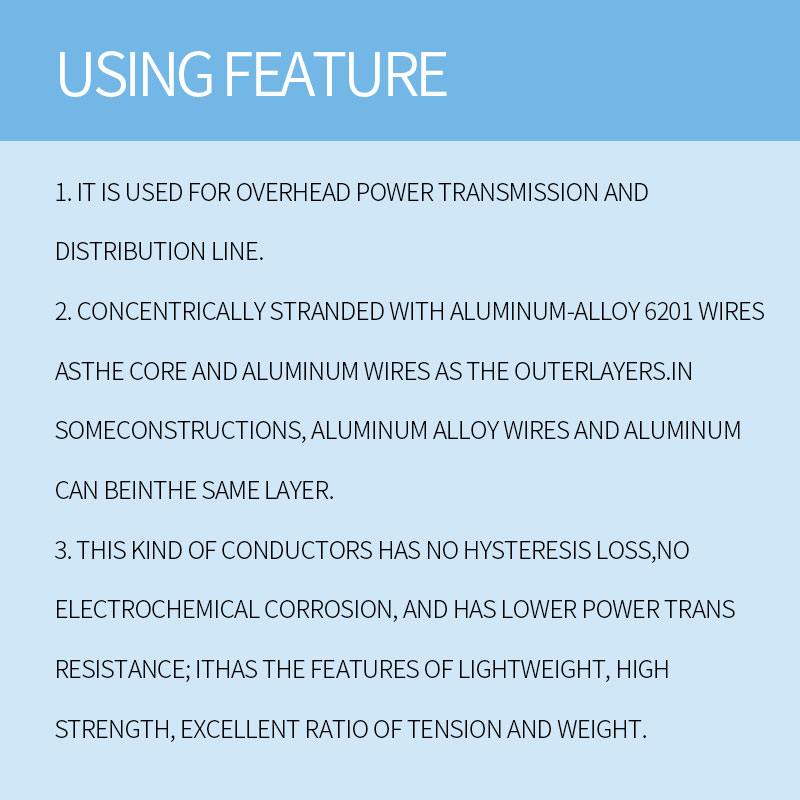

Using feature
1. It is used for overhead power transmission and distribution line.
2. Concentrically stranded with aluminum-alloy 6201 wires asthe core and aluminum wires as the outerlayers.In someconstructions, aluminum alloy wires and aluminum can beinthe same layer.
This kind of conductors has no hysteresis loss,no electrochemical corrosion, and has lower power trans resistance; Ithas the features of lightweight, high strength, excellent ratio of tension and weight

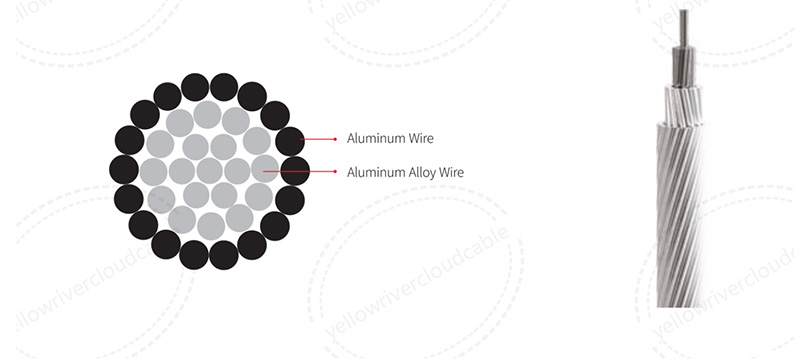

Product structural representation
Aluminum stranded conductor

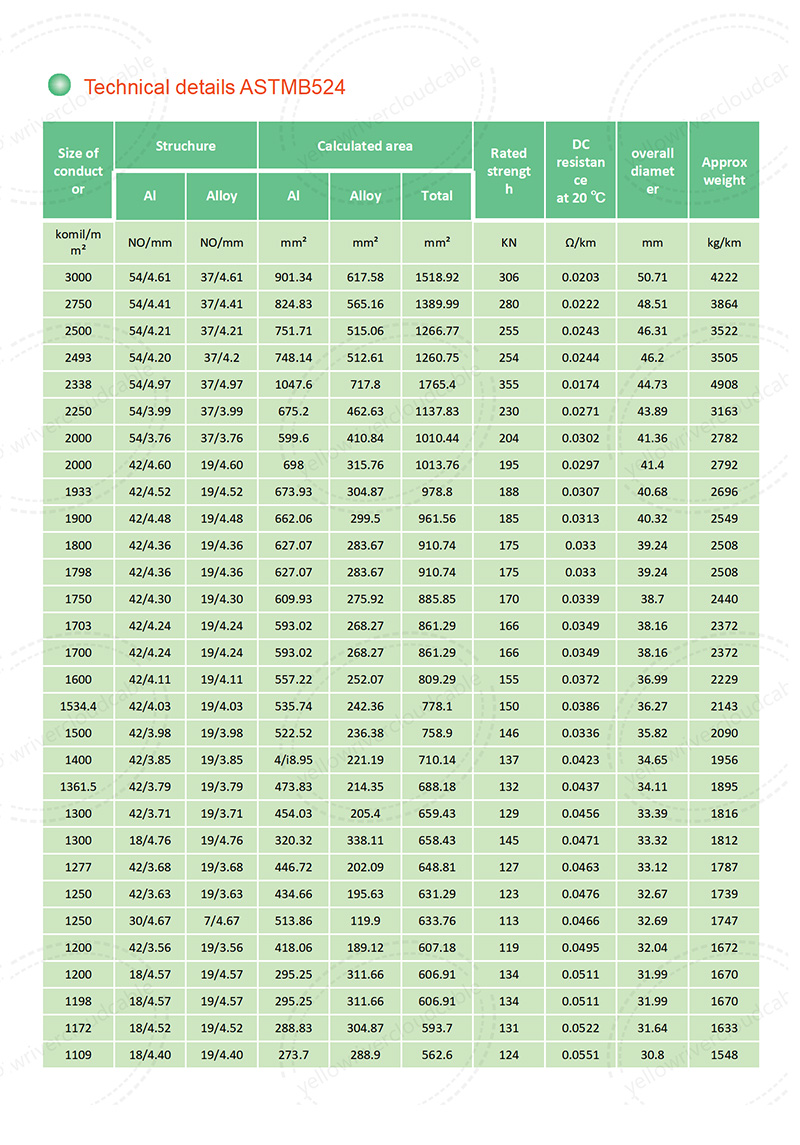

Technical details ASTMB524

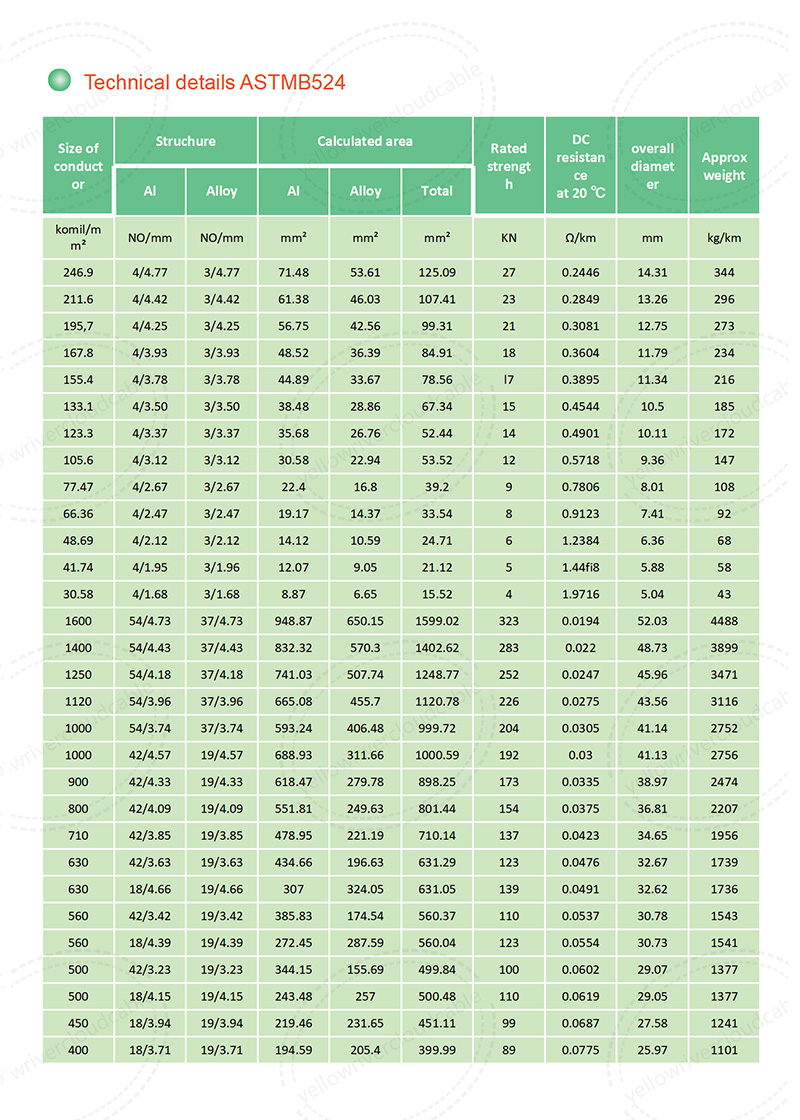

Technical details ASTMB524

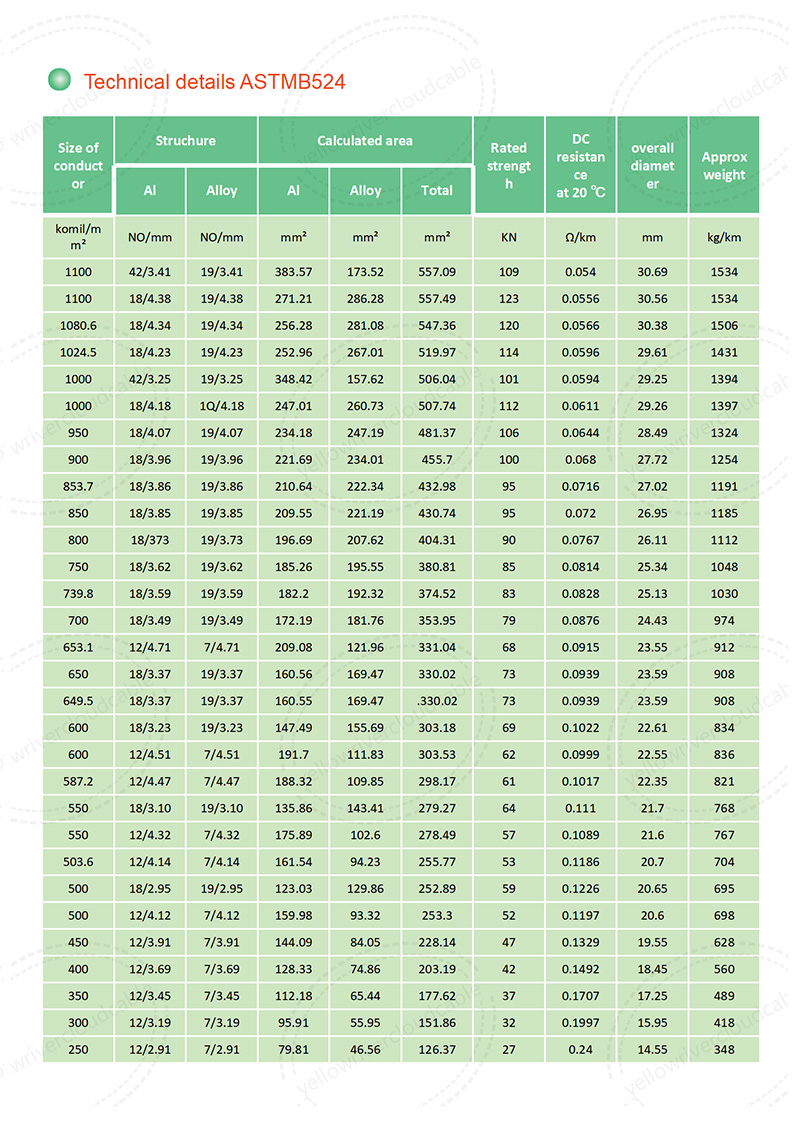

Technical details ASTMB524
Technical details ASTMB524
