Single core XLPE insulated cables with copper conductor-18/30(36)kV or 19/33(36)kV
IEC60502-2
Characteristics
-
Rated voltage
18/30(36)kV or 19/33(36)kV
-
Standard
IEC60502-2
-
Product brand
huatai special cable
Description

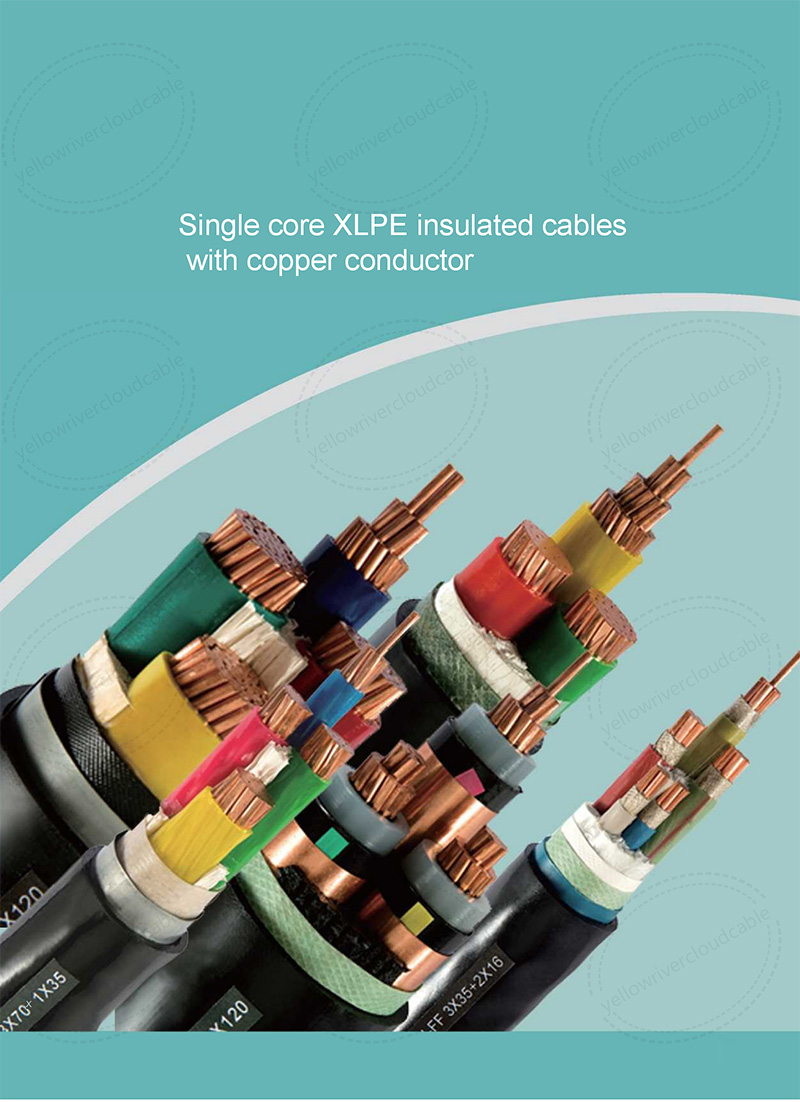

Single core XLPE insulated cables with copper conductor

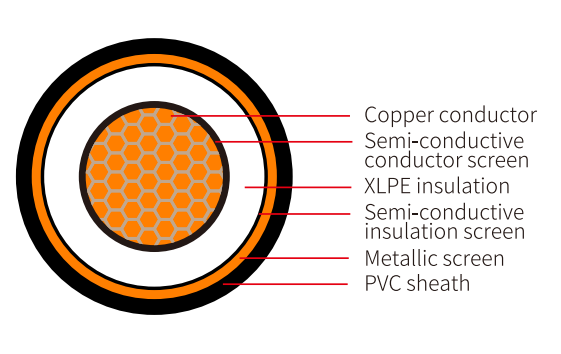

structure
Standard:IEC60502-2
Rated voltage:18/30(36)kV or 19/33(36)kV
Test voltage:63kV/5 mins
Max.Short-circuit temperature:250℃
Operating conductor temperature:90℃
Min.temperature forlayingand manipulation
with cables:-5℃
Temperature range for operating: from -35to+90°C
Colour of sheath: Black
Min. bending radius:20OD
Application
1.The cable design based on AS/NZS, SANS, NBR, ICEA, BS,EN, AEIC etc. is also available. Tree retardant, Flame retar-dant, Low smoke & Halogen free, Cold resistant, UV resis-tant, Oil resistant, Anti-rodent, Anti-termite, water proof are available. Manner of metallic screen can be designed ascopper tape, or copper wires, or a combination of wires andtapes.
2.Cables are designed for fixed installation into distribution network or possibly damp environments.lf it is necessary tolay the cable in the ground,it has to be provided witha pro-tection tube made of plastics, and has to belaid in bed ofsand. The cables are resistant to Uvradiation and flame propagation according to lEC 60332.

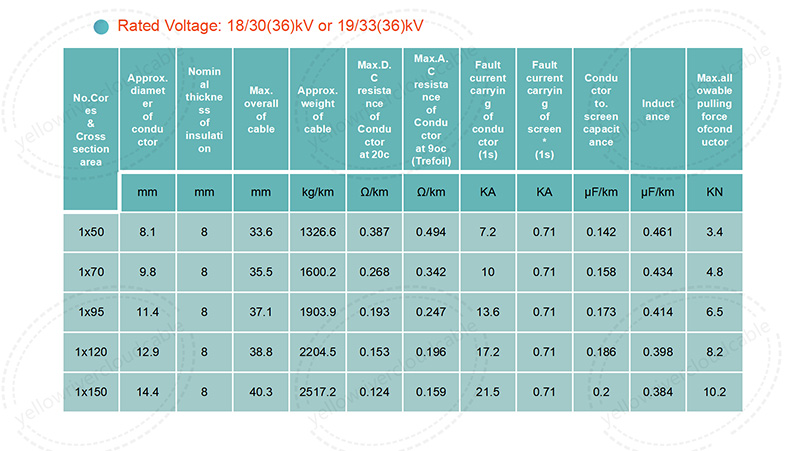

Rated Voltage:18/30(36)kV or 19/33(36)kV

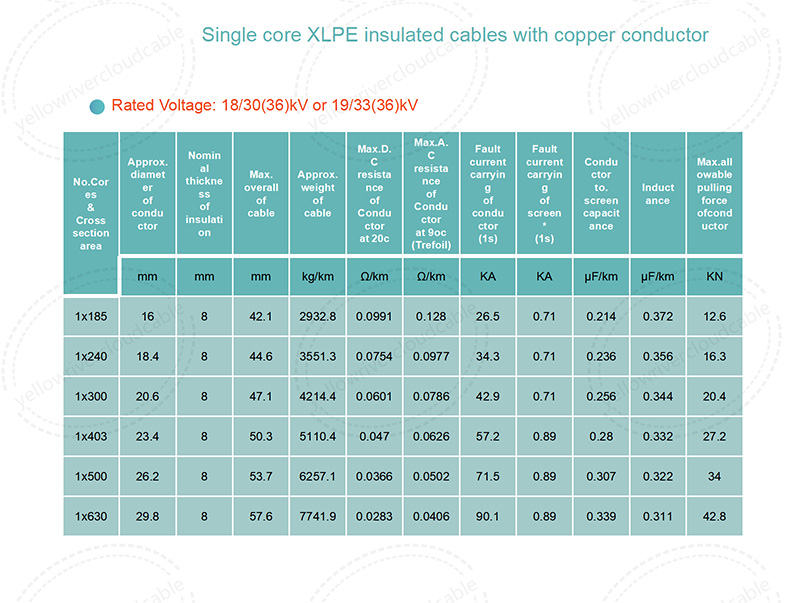

Rated Voltage:18/30(36)kV or 19/33(36)kV
