Aerial Insulated Cables with Rated Voltage 1kV or Lower
JKV
Characteristics
-
insulating layer
PVC PE XLPE
-
Standards implemented
GB/ T12527 IEC 502 and IEC 227
-
Product brand
huatai special cable
Description
Aerial Insulated Cables with Rated Voltage 1kV or Lower
Standards implemented
This product is produced in accordance with the stan-dard of GB/
T12527 that is made by referring and adaptingthe standards of IEC 502 and IEC 227and it is suita
ble for aerial insulated cable with A.C. rated voltage 0.6/1kV orless.
Using feature
The permitted working temperature of cable, conductorin a long time is :
1.For PVC and PE insulated should notbe over 70℃;
2. For XLPE insulated should not be over90℃;
the laying temperature of the cable should not bebelow-20℃;
the permitted bend radius of the cable:
1.If theoutside diameter of the cable(D) is less than 25 mm. itshould not be less than 4D;
2.If the outside diameter of thecable (D) is 25mm or more, it should not be less than 6 D.

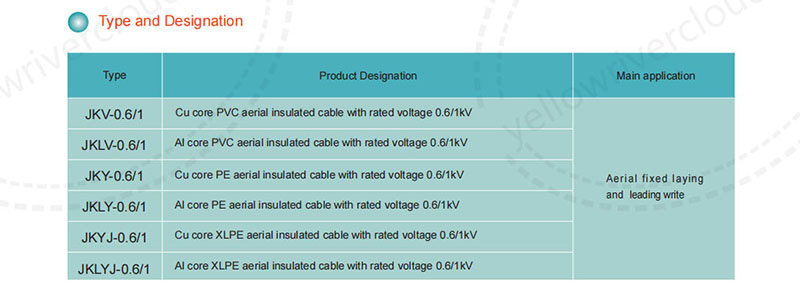

Type and Designation :Type、Product Designation、Main application

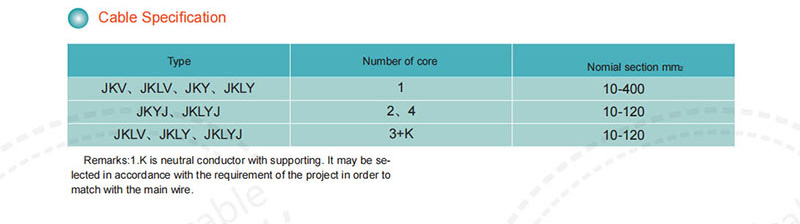

Main application:Type、Number of core、Nomial section mm2
Remarks:1.K is neutral conductor with supporting. It may be selected
in accordance with the requirement of the project in order to
match with the main wire.
