BS 215-2 Aluminum Conductor Steel Reinforced

ACSR

  • INQUIRY NOW
  • PRICE CALC
  • CATALOGUE
  • COMPANY LOCATION

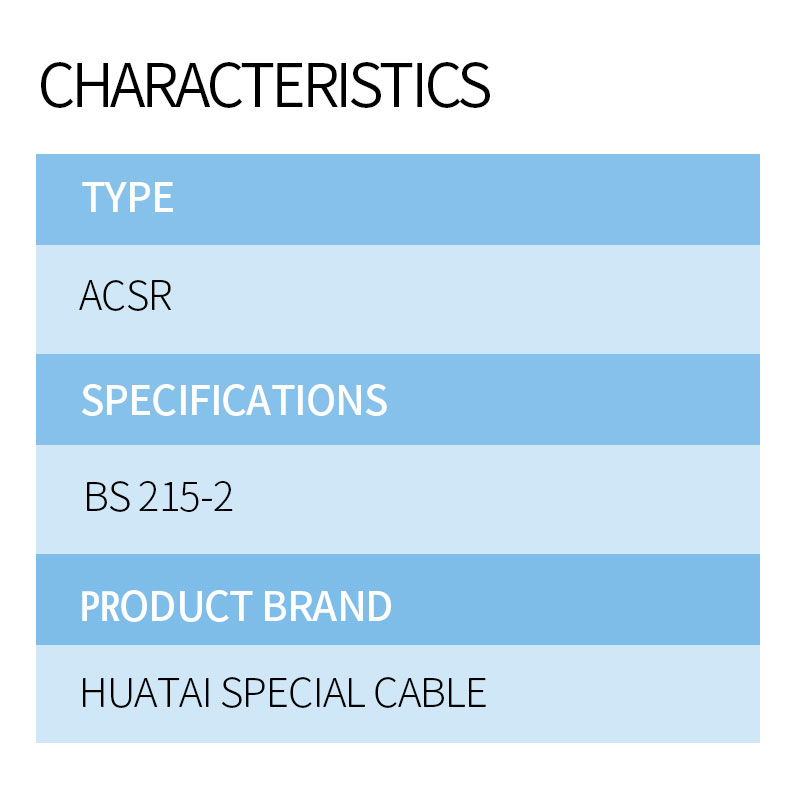

Characteristics

  • Type

    ACSR

  • Specifications

    BS 215-2

  • Product brand

    huatai special cable

Description

TECHNICAL DATA:

Type: ACSR

Specification: BS 215-2


CABLE STRUCTURE:

Aluminum wires are concentrically stranded about a steel core.

Wires: hard drawn aluminium as per BS 2627 designated H9.

Steel core: It consists of a steel wire , or seven more galvanized steel wires twisted together in concentric

layers.

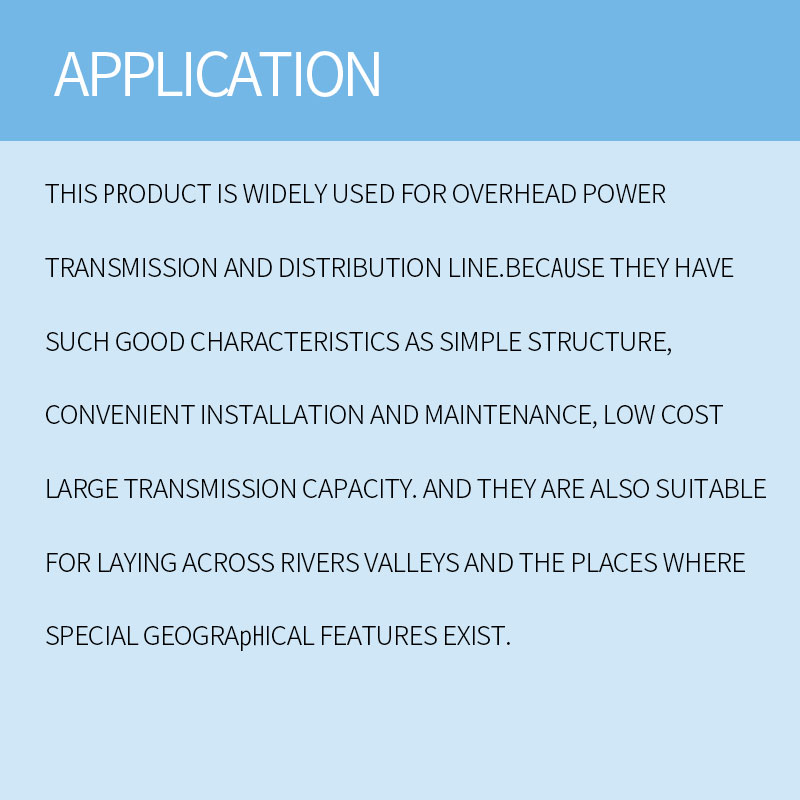

APPLICATION:

This product is widely used for overhead power transmission and distribution line.Because they have

such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

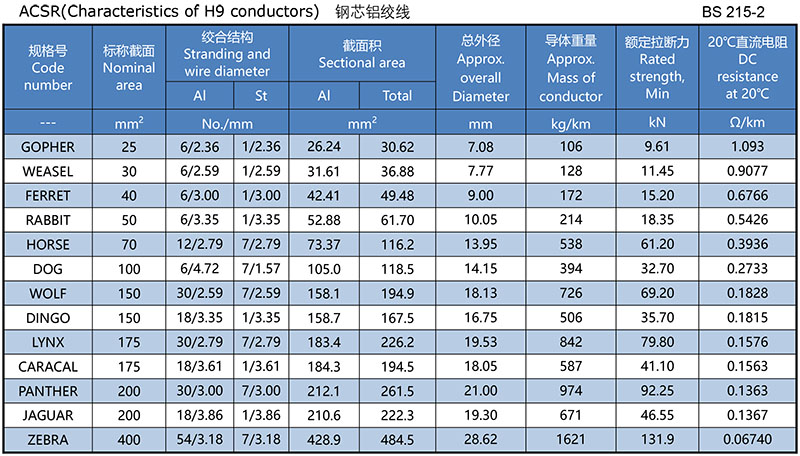

ACSR(Characteristics of H9 conductors)

BS 215-2 Aluminum Conductor Steel Reinforced
