ASTM B231 All Aluminum Conductor
AAC
- INQUIRY NOW
- PRICE CALC
- CATALOGUE
- COMPANY LOCATION

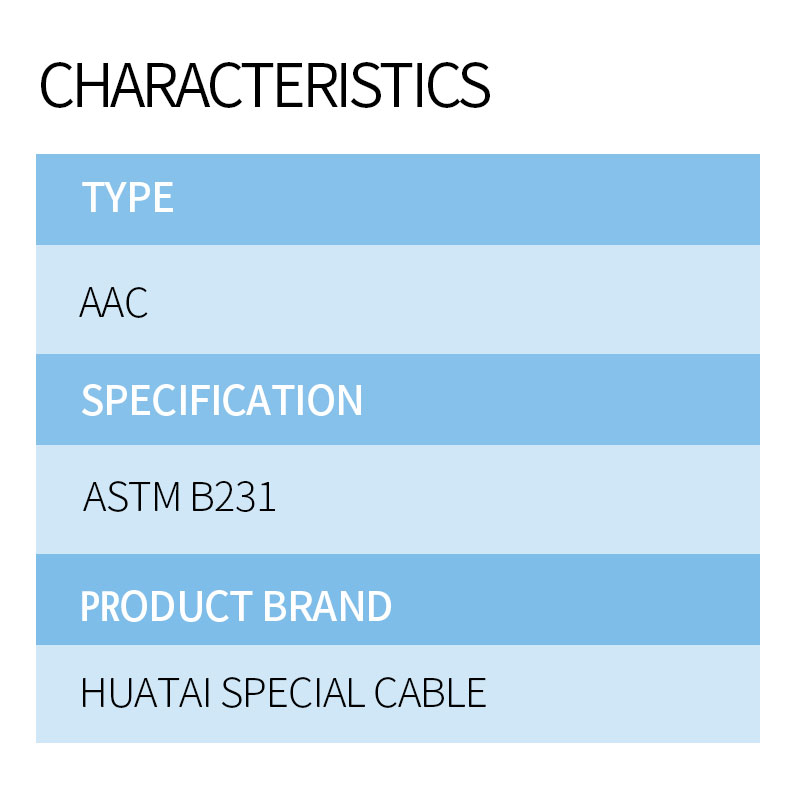

Characteristics
-
Type
AAC
-
Specification
ASTM B231
-
Product brand
huatai special cable
Description
TECHNICAL DATA:
Type: AAC
Specification: ASTM B231
CABLE STRUCTURE:
The conductor consists of seven or more round aluminium wires of the same nominal diameter twisted together in concentric layers.
Wires: Comply with ASTM B230 designated aluminium 1350-H19 wires.

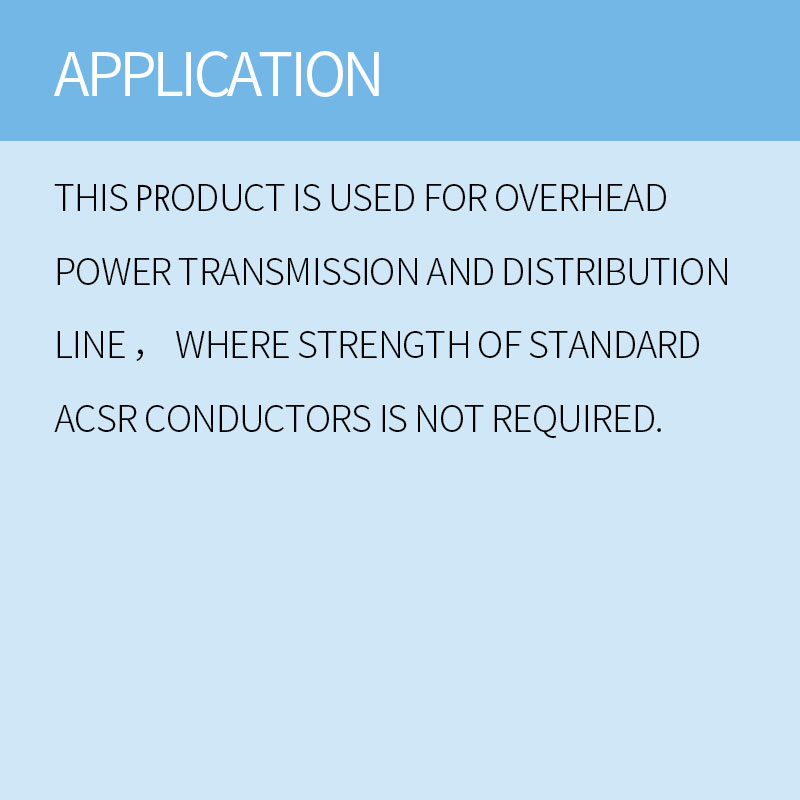

APPLICATION:
This product is used for overhead power transmission and distribution line ， where strength of standard ACSR
conductors is not required.

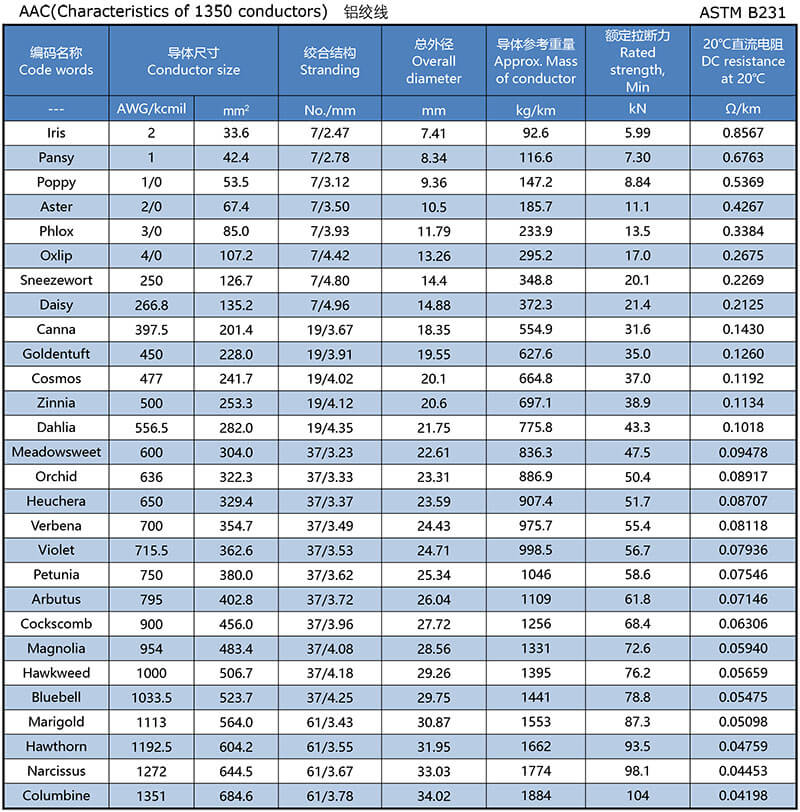

AAC(Characteristics of 1350 conductors)
