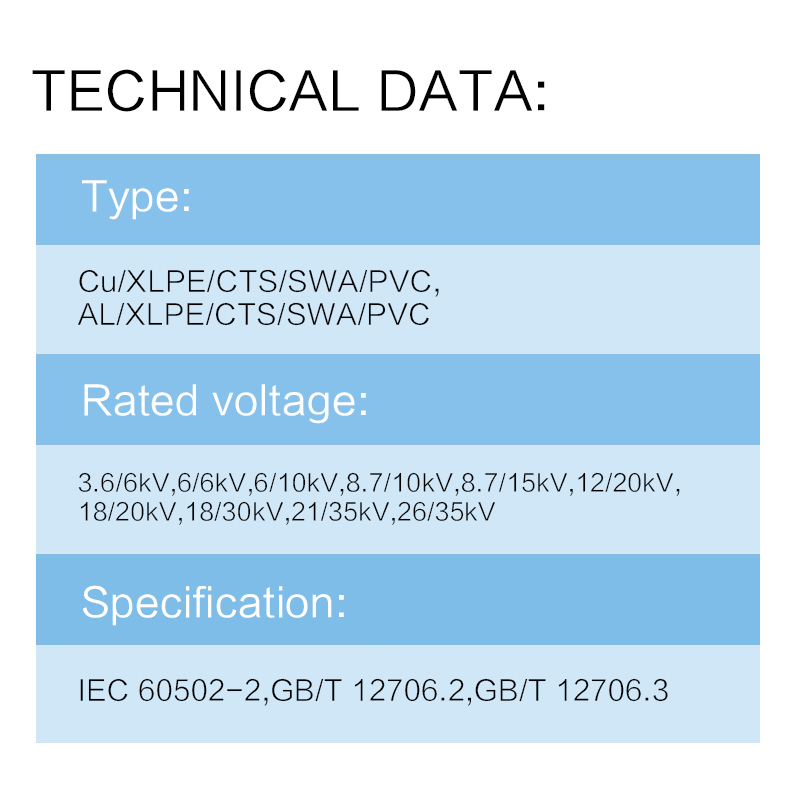

TECHNICAL DATA

Type: Cu/XLPE/CTS/SWA/PVC, AL/XLPE/CTS/SWA/PVC

Specification:  IEC 60502-2, GB/T 12706.2, GB/T 12706.3

Rated voltage:

3.6/6kV,6/6kV,6/10kV,8.7/10kV,8.7/15kV,12/20kV,18/20kV,18/30kV,21/35kV,26/35kV

Number of cores: single-core,three-core

Operating temperature: 90℃

Short-circuit temperature: 250℃

CABLE STRUCTURE:

Conductors: Class 2 of copper or aluminium circular compact stranded conductor according to IEC 60228.

Conductor screen: Extruded cross-linked semi-conductive compound.

Insulation:  XLPE in accordance with IEC 60502-2.

Insulation screen: Extruded cross-linked semi-conductive compound.

Metallic screen: Annealed copper tape

Inner sheath: PVC compound

Armour: In AC power system，non-magnetic stainless steel wire is used for single-core cable armoring，and galvanized steel wire is used for three-core cable armoring.

Outer sheath: PVC/ST2 according to IEC 60502-2.

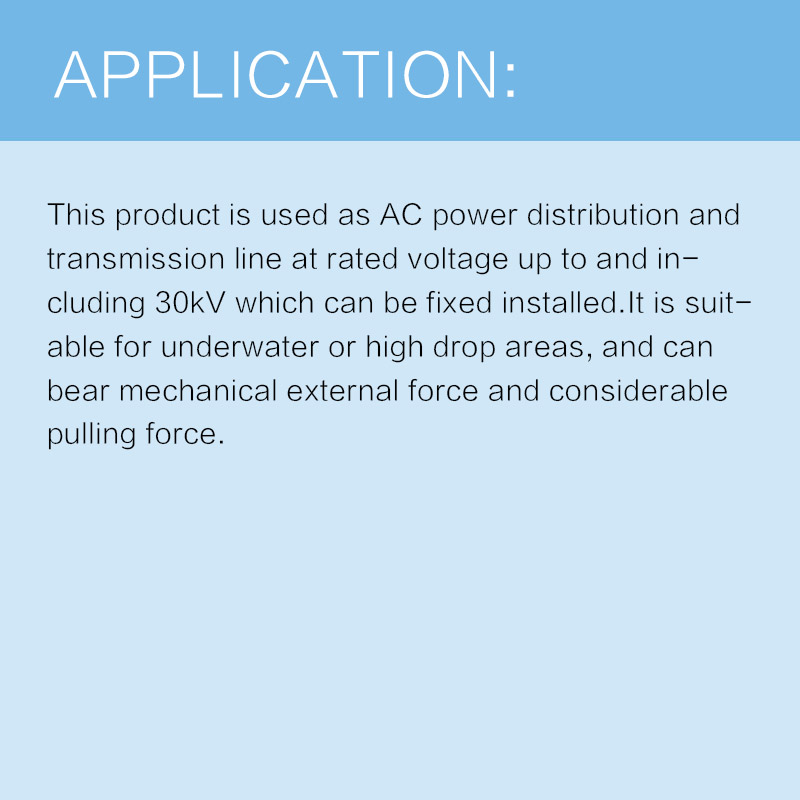

APPLICATION:

This product is used as AC power distribution and transmission line at rated voltage up to and including 30kV which can be fixed installed.It is suitable for underwater or high drop areas, and can bear mechanical external force and considerable pulling force.
